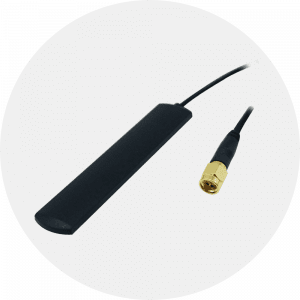

E003083 4G Adhesive Antenna 2.7dBi 1.5M

  • Specification
  • Downloads
  • Model
Parameter Rated Value
Frequency Range 824 ~ 960 MHz 1710 ~ 2690 MHz
Gain 0.3 dBi 2.7 dBi
V.S.W.R 1.92 Max 1.92 Max
Polarization Linear
Impedance 50 Ohm
Connector SMA male
Cable RG174, 1500 mm
Mounting Method Adhesive
Operating Temperature -30°C ~ 80°C
RoHS Compliant
Related Products Compatible with 3/4G Modem/Router/Gateway
Model PN
4G Adhesive Mount Antenna E003083
