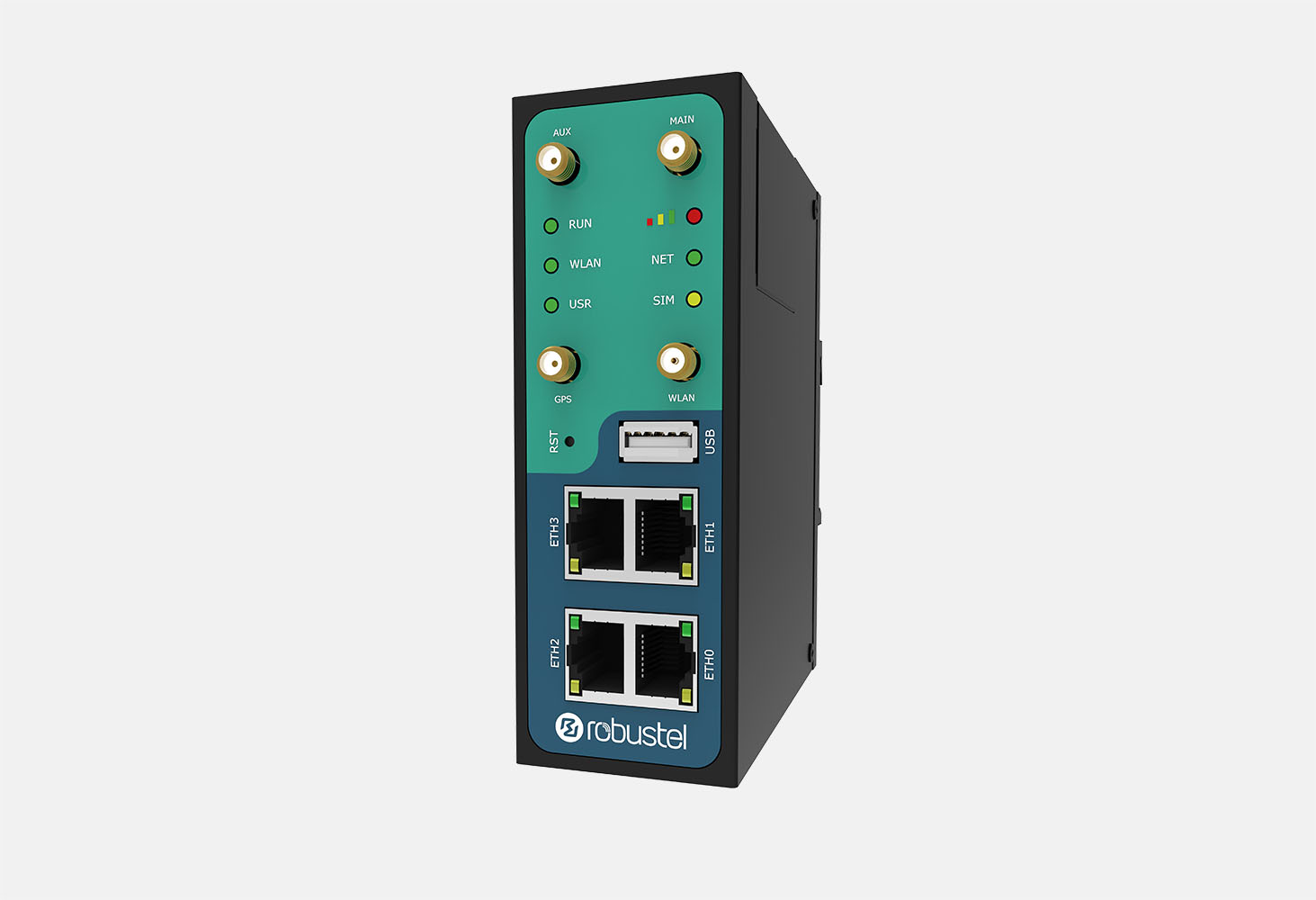

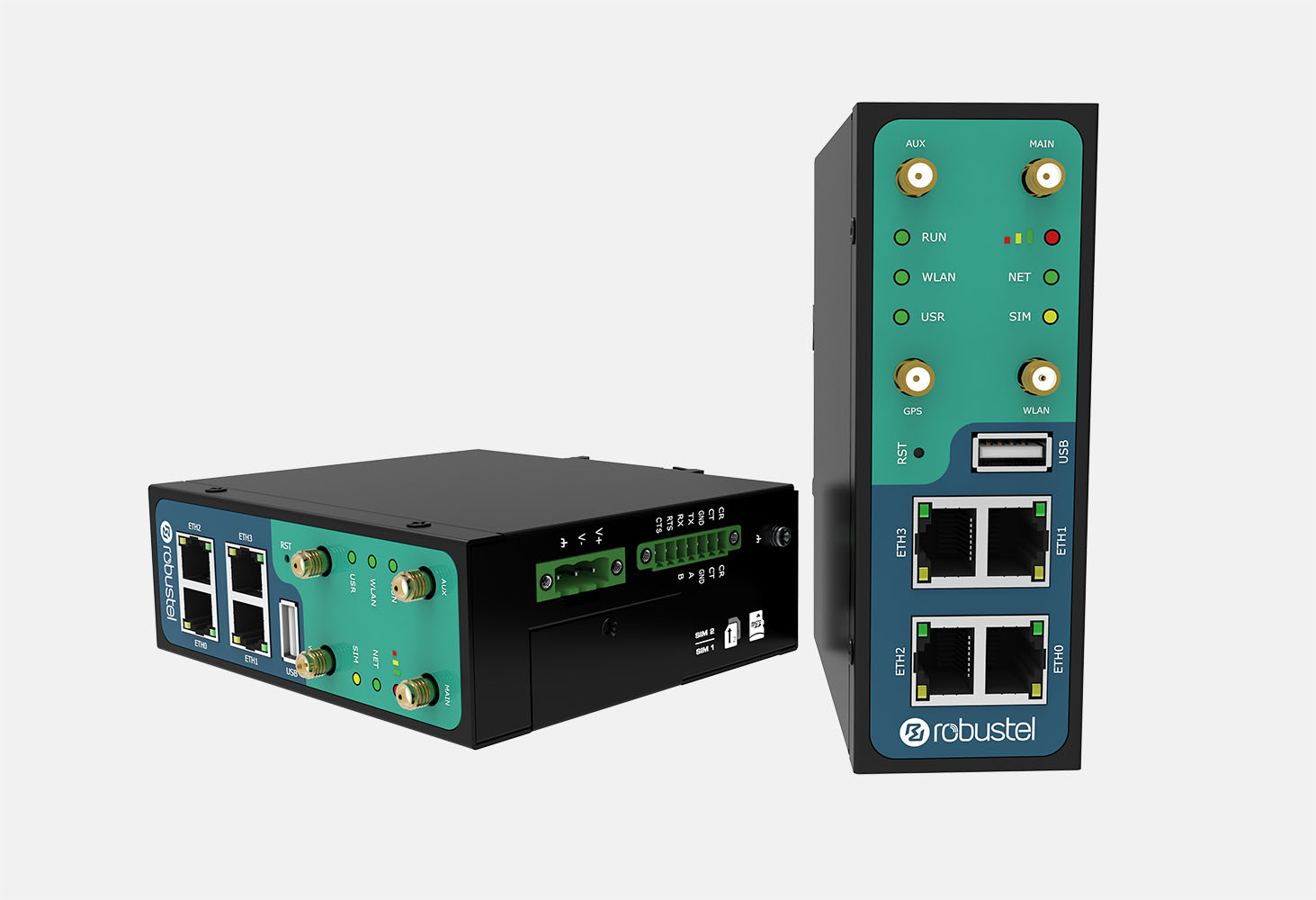

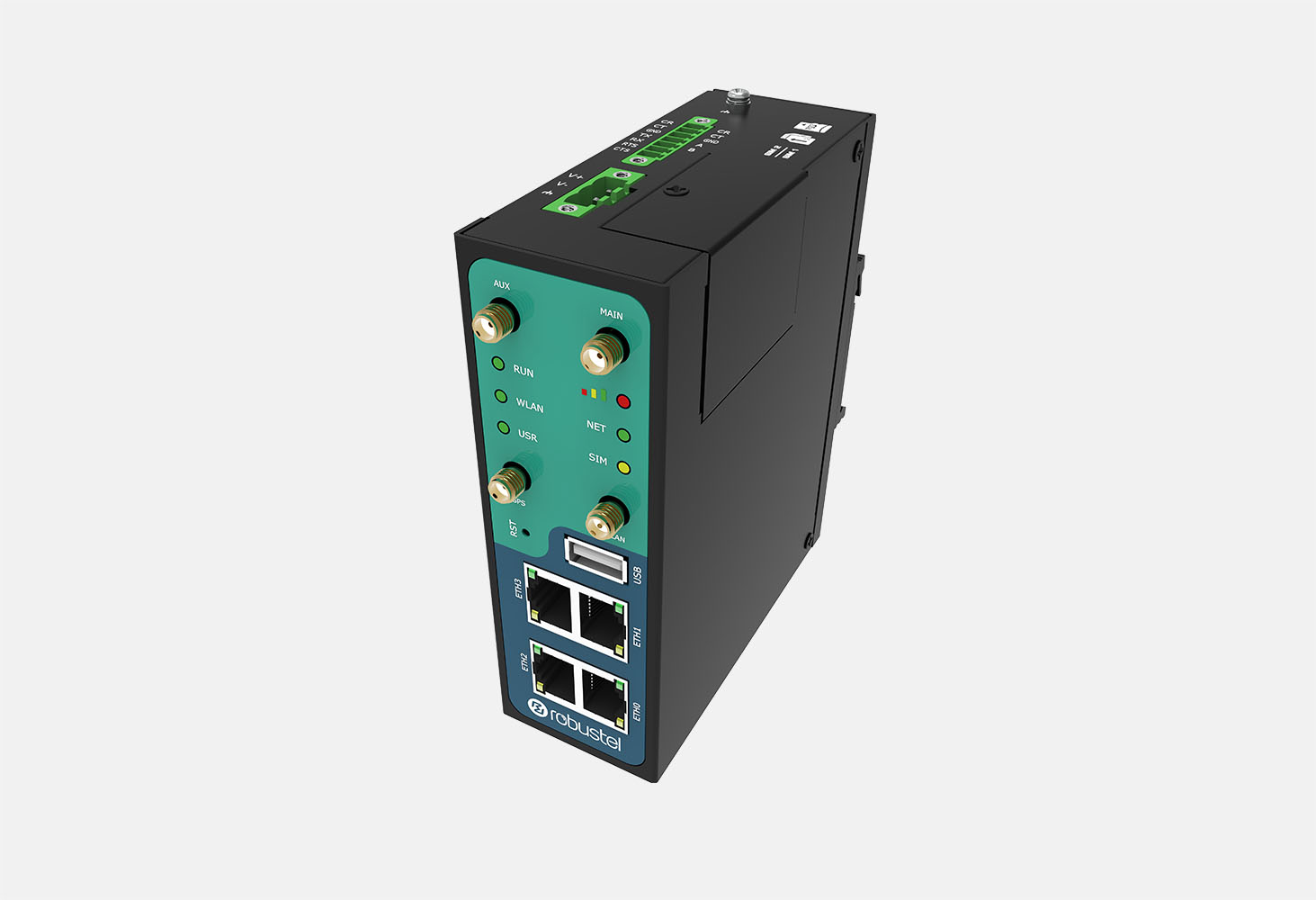

R3000 Quad Industrial Gateway

R3000 Quad is an Industrial Cellular VPN Router with 4 Ethernet Ports, Offering state-of-the-art mobile connectivity for M2M applications.

  • Key Features
  • Specification
  • Downloads
  • Model

The Robustel Industrial Cellular VPN Router with 4 Ethernet Ports (R3000 Quad) is a rugged cellular router offering state-of-the-art mobile connectivity for machine to machine (M2M) applications.



Key Features

  • The feature Link Manager supporting WWAN1, WWAN2, Ethernet WAN, WLAN WAN link backup and ICMP detection
  • The option Backup Mode supporting cold, warm and load balancing
  • RobustOS + SDK + App
  • IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
  • Management and maintenance via Web/CLI/SNMP/RCMS
  • Robust industrial design (9 to 60V DC, 18~75VDC(optional),desktop or wall mounting or DIN rail mounting)



Cellular Interface
Number of antennas 2 (MAIN + AUX)
Connector SMA-K
SIM 2 Mini SIM (2FF)



Ethernet Interface
Number of ports 4 x 10/100 Mbps,
4 x LAN or 3 x LAN + 1 x WAN
Magnet isolation protection 1.5 KV



Wi-Fi Interface (Optional)
Number of antennas 1
Connector RP-SMA-K
Standards 802.11 a/b/g/n, supporting AP and Client modes
Frequency bands 2.4 GHz

5 GHz

Security Open, WPA, WEP
Encryption AES, TKIP, WEP64
Data speed Up to 150 Mbps



GNSS Interface (Optional)
Number of antennas 1
Connector SMA-K with 50 ohms impedance
Acquisition sensitivity GPS: greater than -148 dBm
Horizontal position accuracy GPS: 2.5 m
Protocol NMEA-0183 v4.10



Serial Interface (Software selectable)
Number of ports 1 x RS232 or 1 x RS485
Connector 7-pin 3.5 mm female socket with lock
Baud rate

Isolation

300 bps ~ 230400 bps

2.5 KV (optional)

Flow control RTS/CTS (for RS232)



Others
Reset button 1 x RST
SD 1 x Micro SD interface
Expansion 1 x USB 2.0 host, up to 480 Mbps
CLI 1 x CLI interface
LED indicators 1 x RUN, 1 x PPP, 1 x USR, 1 x RSSI, 1 x NET, 1 x SIM
Built-in RTC, Watchdog, Timer



Software (Basic features of RobustOS)
Network protocols



PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, SSH2, DDNS, etc.
VPN tunnel IPsec, OpenVPN, GRE
Firewall DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Remote Management Web, CLI, SMS
Serial port Transparent, TCP Client/Server, UDP, Modbus RTU Gateway



App Center (Available Apps for RobustOS)
Apps* L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Data Guard
*Request on demand. For more Apps please visit www.robustel.com.



SDK
Supported programming language C, C++
Flash available for SDK 64 MB
RAM available for SDK 64 MB



Power Supply and Consumption
Connector 3-pin 5 mm female socket with lock
Input voltage 9 ~ 60 VDC
Power consumption Idle: 100 mA@12 V, 55 mA@24 V, 30 mA@48 V;
Data link (peak): 400 mA@12 V, 215 mA@24 V, 115 mA@48 V



Physical Characteristics
Ingress protection IP30
Housing & Weight Metal, 570 g
Dimensions 125 x 104 x 43.5 mm
Installations Desktop, wall mounting and 35 mm DIN rail mounting
Operating temperature -40 ~ +75 °C
Storage temperature -40 ~ +85 °C
Relative humidity 5 ~ 95% RH



Regulatory and Type Approvals
Environmental RoHS2.0, WEEE
EMI EN 55032: 2012/AC: 2013 (CE & RE) Class B
EMS IEC 61000-4-2 (ESD)connect Level2; Air Level 3
IEC 61000-4-3 (RS) Level 2
IEC 61000-4-4 (EFT) Level 2
IEC 61000-4-5 (Surge) Level 3
IEC 61000-4-6 (CS) Level 2
R3000 Quad Datasheet



R3000 Quad Quick Guide (Installation and Configuration)



R3000 Quad User Guide



R3000 Firmware 5.1.0



R3000 Quad Hardware Manual



*All Robustel Firmware and RobustOS Apps are now available to download from the App Centre section of RCMS Cloud.

If you don’t already have access to RCMS Cloud you can Sign Up  freely.

*Please contact our Technical Support if you have any trouble finding the resources.

Model PN Category Wi-Fi GNSS Frequency Bands* Country/

Region

Certifications

(*In progress)

R3000-QLB B019001 EMEA CE
B019002
R3000-Q4LB B019727 Cat 4 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28

LTE TDD: B40

3G: WCDMA: B1/B2/B5/B8

2G: GSM: B2/B3/B5/B8

Oceania,

South America

RCM, CRC, URSEC
B019728
B019730 GPS South America CRC, URSEC
B019738 4G: LTE FDD: B1/B3/B5/B7/B8/B20

LTE TDD: B38/B40/B41

3G: WCDMA: B1/B5/B8

2G: GSM: B3/B8

EMEA CE, TRA, UKCA
B019739

* For more information about frequency bands in different countries, please contact your Robustel sales representative.
