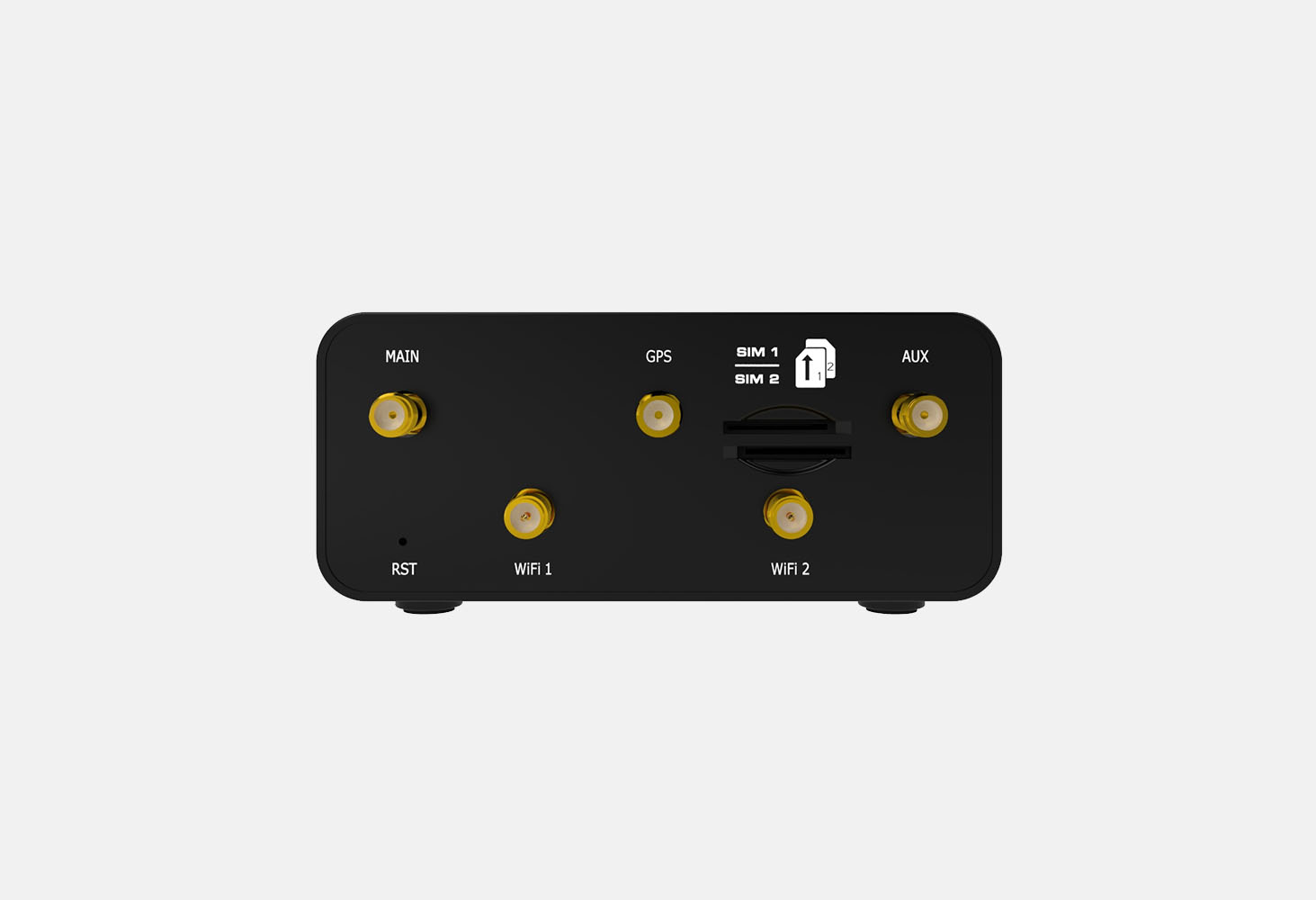

R1520 Dual-SIM Cellular Router
The R1520 router from Robustel is a versatile 4G router with 5 x Ethernet ports, GPS and E-mark certification for in-vehicle use.
Other hardware features include optically isolated digital inputs and outputs as well as a 10-bit analogue input capable of interfacing directly with sensors in the range of 0 to 24Vdc or 0 to 20mA.
R1520 also has a 2-wire RS485 interface for connection to legacy instruments with full support for Modbus. The RS232 port features RTS/CTS lines so the product can accommodate applications that require hardware handshaking.
Despite being cost-effective, the R1520 is a powerful router with high packet-forwarding capability – way beyond the typical requirements of LTE CAT4 networks. The Linux based Operating System, RobustOS, has been developed entirely in-house which leads to a very high standard of technical support and infrequent firmware updates due to modular nature of the OS. Many unique software innovations are built on top of RobustOS, these include:
RobustVPN – highly flexible hosted VPN service so customers can easily enjoy a “fixed IP router”
Data-Guard – invaluable failsafe in case of a system failure and runaway data usage
Smart Reboot – SMS tool to push roaming SIMs from a non-working to working state
Sniffer – run a Wireshark trace directly on the router for invaluable diagnostic information. Customers can also easily write their own applications using the extensive SDK supplied free of charge.
RCMS is Robustel’s free router monitoring service that is fully compatible with the R1520. It allows customers to see a location overview of their routers quickly and simply on a map.Features such as data usage, signal strength, current network and much more can then be viewed on a per router. Over-the-air updates are supported for Firmware, router configuration and Apps serving as essential ‘insurance’ if anything was not quite right during deployment.
For a free trial of RCMS, visit: https://rcms-cloud.robustel.net
KEY FEATURES
| Cellular Interface | |
| Number of antennas | 2 |
| Connector | SMA-K |
| SIM | 2 Mini SIM (2 FF) |
| Ethernet Interface | |
| Number of ports | 5 x 10/100 Mbps, 5 LAN by default, can be configured as 1 WAN + 4 LAN |
| WAN port | Support 802.3af & 802.3at PD feature on ETH0 |
| Magnet isolation protection | 1.5 KV |
| WiFi Interface | |
| Number of antennas | 2 |
| Connector | RP-SMA-K |
| Standards | 802.11b/g/n, supports AP and Client modes |
| Frequency bands | 2.4 GHz |
| Security | WEP, WPA, WPA2 |
| Encryption | 64/128 AES, TKIP |
| Data speed | 2*2 MIMO, 300 Mbps |
| DI/DO | |
| Type | 1 x DI + 1 x DO, wet contact |
| Isolation | 3 KV |
| Socket form | 2 * 3-pin 3.5 mm female socket |
| Level | 3 to 30V DC = HIGH, 0 to 1 Vdc = LOW |
| Absolute maximum VDC | 30V DC（DI/DO） |
| Absolute maximum ADC | 10mA（DI/DO） |
| Analogue Input | |
| Type | 1 X AI (can be configured as voltage type or current type) |
| Voltage input range | 0 to 24 Vdc |
| Current input range | 4-20 mA (current-type input requires external resistance, and finally measured by voltage) |
| Socket form | 2 * 3-pin 3.5 mm female socket |
| Signal definition | AI，AGND |
| Serial Port | |
| Type | 1 x RS232 + 1 x RS485 |
| Socket form | 2 x 4-pin 3.5 mm female socket |
| Signal definitions | RS232: RXD, TXD, SGND, RTS, CTS
RS485: Data+ (A), Data- (B), GND |
| Other Interfaces | |
| 1 x GPS interface (Optional, depending on the cellular module) | |
| 1 x 480Mbps high-speed USB2.0 interface(Type A, 5V, 500mA) |
| Others | |
| Reset button | 1 x RST |
| RTC | External RTC clock , Backup energy storage capacitor can be maintained for 2 days |
| LED indicators | 1 x RUN, 1 x MDM, 1 x USR, 1 x RSSI, 1 x WiFi |
| Built-in | Watchdog, Timer |
| Software (Basic features of RobustOS) | |
| Network protocols
|
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, SSH2, DDNS, etc. |
| VPN tunnel | IPsec, OpenVPN, GRE |
| Firewall | DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Remote Management | Web, CLI, SMS |
| App Center (Available Apps for RobustOS) | |
| Apps* | L2TP, PPTP, DMVPN, VRRP, QoS, Captive Protal, WLAN Multi AP, SNMP, Language, RCMS |
| *Request on demand. For more Apps please visit www.robustel.com. | |
| SDK | |
| Supported programming language | C, C++ |
| Flash available for SDK | 4 MB |
| RAM available for SDK | 64 MB |
| Power Supply and Consumption | |
| Connector | 2 pin 3.5 mm socket with lock |
| Input Voltage
PoE-PD Voltage |
9 ~ 36 VDC
Possibility to power up through ETH0 40 ~ 57 VDC |
| Power consumption | Idle: 250 mA@12 V
Data link: 890 mA (peak) @12 V |
| Physical Characteristics | |
| Ingress protection | IP30 |
| Housing & Weight | Plastic, 250 g |
| Dimensions | 105 x 90 x 46 mm |
| Installations | Desktop, wall mounting and 35 mm DIN rail mounting |
| Operating temperature | -25 ~ +70 °C |
| Storage temperature | -40 ~ +85 °C |
| Relative humidity | 5 ~ 95% RH |
| Regulatory and Type Approvals | |
| Environmental | RoHS2.0, WEEE |
| EMI | EN 55032: 2012/AC: 2013 (CE & RE) Class B |
| EMS | IEC 61000-4-2 (ESD) Contact Level 2 |
| IEC 61000-4-3 (RS) Level 2 | |
| IEC 61000-4-4 (EFT) Level 2 | |
| IEC 61000-4-5 (Surge) Level 2 | |
| IEC 61000-4-6 (CS) Level 2 | |
| IEC 61000-4-11 (DIP) Level 2 | |
R1520 Hardware Manual
R1520 Global / R1520 User Guide
RobustOS Software Manual
*All Robustel Firmware and RobustOS Apps are now available to download from the App Centre section of RCMS Cloud.
If you don’t already have access to RCMS Cloud you can Sign Up freely.
*Please contact our Technical Support if you have any trouble finding the resources.
| Model | PN | GNSS | POE-PD | Frequency Bands* | Country/Region | Certifications
(*In progress) |
| R1520-4L (V) | B056704 | √ | √ | 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28; LTE TDD: B40
3G: WCDMA: B1/B2/B5/B8 2G: GSM: B2/B3/B5/B |
Oceania, South Americ | RCM |
| B056713 | √ | – | ||||
| B056705 | √ | √ | 4G: LTE FDD: B1/B3/B8/B18/B19/B26; LTE TDD: B41
3G: WCDMA: B1/B6/B8/B19 |
Japan | Telec, JATE | |
| B056714 | √ | – | ||||
| B056708 | √ | √ | 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/ B18/B19/B20/B25/B26/B28 LTE TDD: B38/B39/B40/B41 3G: WCDMA: B1/B2/B4/B5/B6/B8/B19 2G: GSM: B2/B3/B5/B8 |
EMEA,
|
CE, E–Mark, FCC, IC, TRA, ICASA, UKCA,SIRIM |
|
| B056715 | √ | – | ||||
| R1520-4L (S) | B056703 | – | √ | 4G: LTE FDD: B1/B3/B7/B8/B20/B28A
3G: WCDMA: B1/B8 2G: GSM: B3/B8 |
EMEA, SEA | CE, UKCA, E-Mark |
| B056712 | – | – |
*For more information about 4G frequency bands in different countries, please contact your Robustel sales representative.
