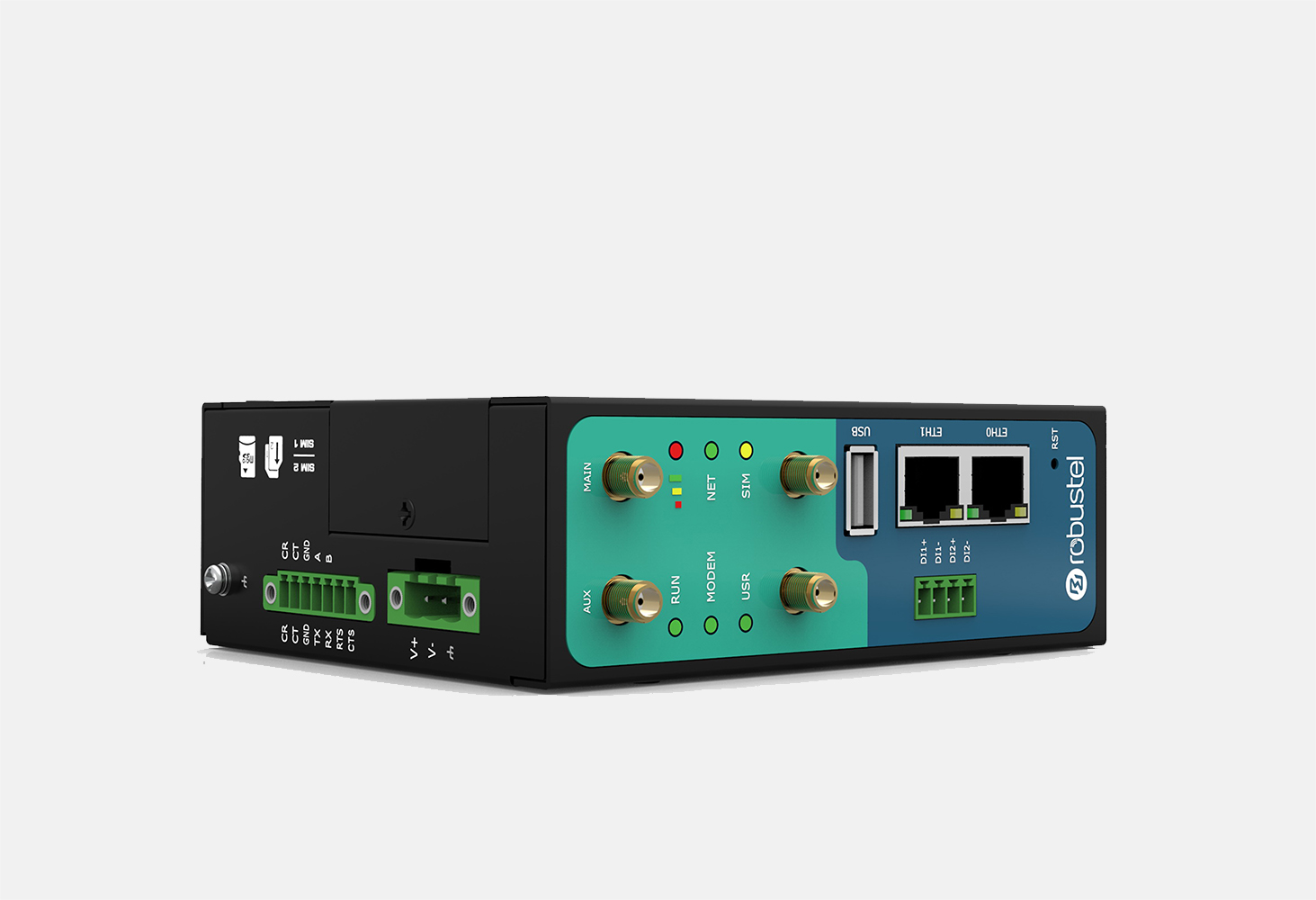

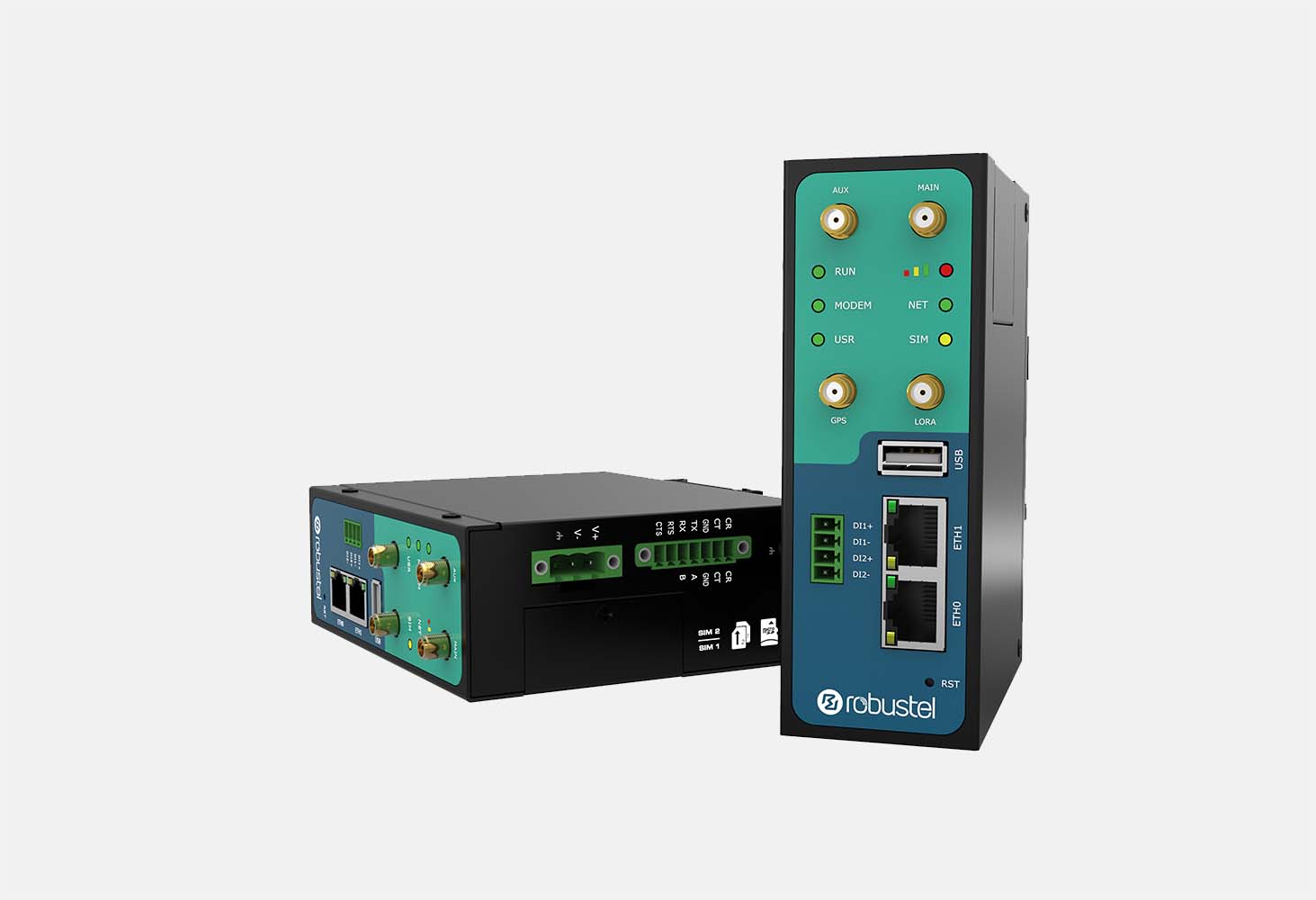

R3000 LG LoRaWAN Gateway

Industrial LoRaWAN Gateway.
It allows access to various types of LoRa application nodes, and supports wired Ethernet and wireless 4G/3G/2G access to the cloud platform.

  • Key Features
  • Specification
  • Downloads
  • Model

Robustel R3000 LG is an industrial-grade LoRaWAN gateway, integrated with LoRaWAN wireless communication technology and cellular network technology, to provide users with wireless long-distance data transmission services.

Our LoRAWAN Gateway supports wired Ethernet and wireless 4G/3G/2G connectivity. It is ideal for creating a private LoRaWAN IoT Network in the following locations;

  • Factories and Plants
  • Farms, Vineyards and Orchards
  • Office buildings
  • Schools and University Campuses
  • Hospitals.

When placed in our rugged IP67 housing, it can also be mounted outdoors.



Key Features

  • Supports global LoRaWAN frequency bands
  • Compatible with LoRaWAN and private protocols
  • Compatible with any LoRaWAN cloud server
  • Up to 8 channels supports receive data simultaneously
  • Supports Packet Forwarder Version 2.2.1 and Packet Forwarder Protocol Version 1
  • RobustOS + SDK
  • TPH6700 Housing optional
  • Backhaul option supports 3G, 4G and Ethernet
  • Supports dual SIM
  • Robust industrial design(9 ~ 60 VDC, -40 ~ +75 °C)



LoRa Interface
Number of antennas 1
Connector SMA-K with 50 ohms impedance
Standards 863-870 MHz (Europe)

915-927 MHz (Australia)

902-928 MHz (North America)

920-928 MHz (Japan)

Max transmitted power +24.5 dBm
Max sensitivity -142 dBm
Reception capacity Supports 8 channels, and each channel can receive data simultaneously Supports 1 MHz bandwidth demodulation
Communication range 15 km



Cellular Interface
Number of antennas 2 (MAIN + AUX)
Connector SMA-K
SIM 2 (3 V & 1.8 V)
Standards 2G/3G/4G



Ethernet Interface
Number of ports 2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN
Magnet isolation protection 1.5 KV



GNSS Interface (Optional)
Number of antennas 1
Connector SMA-K with 50 ohms impedance
Acquisition sensitivity GPS: greater than -148 dBm
GLONASS: greater than -145 dBm
Horizontal position accuracy GPS: 2.5 m
Protocol NMEA-0183 v4.10



Serial Interface
Number of ports 1 x RS232 or 1 x RS485
Connector 7-pin 3.5 mm female socket with lock
Baud rate 300 bps to 230400 bps
Parametric form 8E1, 8O1, 8N1, 8N2, 7E2, 7O2, 7N2, 7E1
RS-232 TxD, RxD, RTS, CTS, GND
RS-485 Data+ (A), Data- (B)
Flow control RTS/CTS (for RS232)



Digital Input
Number of ports 2 x DI (wet contact)
Connector 4-pin 3.5 mm female socket
Isolation 3KVDC or 2KVrms
Absolute maximum VDC “V+” +5V DC (DI)
Absolute maximum ADC 300 mA



Others
Reset button 1 x RST
SD 1 x Micro SD interface
Expansion 1 x USB 2.0 host up to 480 Mbps
CLI 1 x CLI interface
LED indicators 1 x RUN, 1 x MODEM, 1 x USR, 1 x RSSI, 1 x NET,
1 x SIM
Built-in RTC, Watchdog, Timer



Software (Basic features of RobustOS)
LoRaWAN protocols V1.0 Class A/Class C and V1.0.2 Class A/Class C
Network protocols PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, BGP, RIP, OSPF, SSH2, DDNS, etc.
VPN tunnel IPsec, OpenVPN, GRE
Firewall DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Management Web, CLI, SMS
Serial port Transparent, TCP Client/Server, UDP,
Modbus RTU Gateway



App Center (Available Apps for RobustOS)
Apps* lm_csq, Preferred PLMN, RCMS, LoRiot, L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language
*Request on demand. For more Apps please visit www.robustel.com.



SDK
Supported programming language C, C++
Flash available for SDK 64 MB
RAM available for SDK 64 MB



Power Supply and Consumption
Connector 3-pin 5 mm female socket with lock
Input voltage 9 to 60V DC
Power consumption Idle: 100 mA@12 V
Data link: 400 mA (peak) @12 V



Physical Characteristics
Ingress protection IP30
Housing & Weight Metal, 570 g
Dimensions 125 x 104 x 43.5 mm
Installations Desktop, wall mounting and 35 mm DIN rail mounting
Operating temperature -40 ~ +75 °C
Storage temperature -40 ~ +85 °C
Relative humidity 5 ~ 95% RH



Approvals
Environmental RoHS2.0, WEEE
EMI EN 55032: 2012/AC: 2013 (CE&RE) Class B
EMS IEC 61000-4-2 (ESD) Contact Level 2; Air Level 3

IEC 61000-4-3 (RS) Level 2

IEC 61000-4-4 (EFT) Level 2

IEC 61000-4-5 (Surge) Level 3

IEC 61000-4-6 (CS) Level 2

R3000 LG Datasheet



R3000 LG User Guide



R3000 LG Hardware Manual



RobustOS Software Manual



*All Robustel Firmware and RobustOS Apps are now available to download from the App Centre section of RCMS Cloud.

If you don’t already have access to RCMS Cloud you can Sign Up  freely.

*Please contact our Technical Support if you have any trouble finding the resources.

Model PN RS-232 RS-485 LoRa Frequency Frequency Bands* Country/

Region

Certifications

(*In progress)

R3000-LGNUA B028001 863 ~ 870 Mhz EMEA, Oceania CE, RCM
B028002 902 ~ 928 Mhz EMEA, Oceania, USA CE, RCM, FCC
R3000-LG4LA B028716 863 ~ 870 Mhz 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/

B18/B19/B20/B25/B26/B28

LTE TDD: B38/B39/B40/B41

3G: WCDMA: B1/B2/B4/B5/B6/B8/B19

2G: GSM: B2/B3/B5/B8

EMEA CE
B028718 902 ~ 928 Mhz Oceania, North America RCM, FCC, IC
R3000-LG4LB B028719 902 ~ 928 Mhz Oceania, North America RCM, FCC, IC, PTCRB, AT&T

* For more information about frequency bands in different countries, please contact your Robustel sales representative.
