Industrial Dual SIM Cellular VPN Router.
A cost effective, industrial-grade VPN gateway designed for cost-sensitive M2M applications.

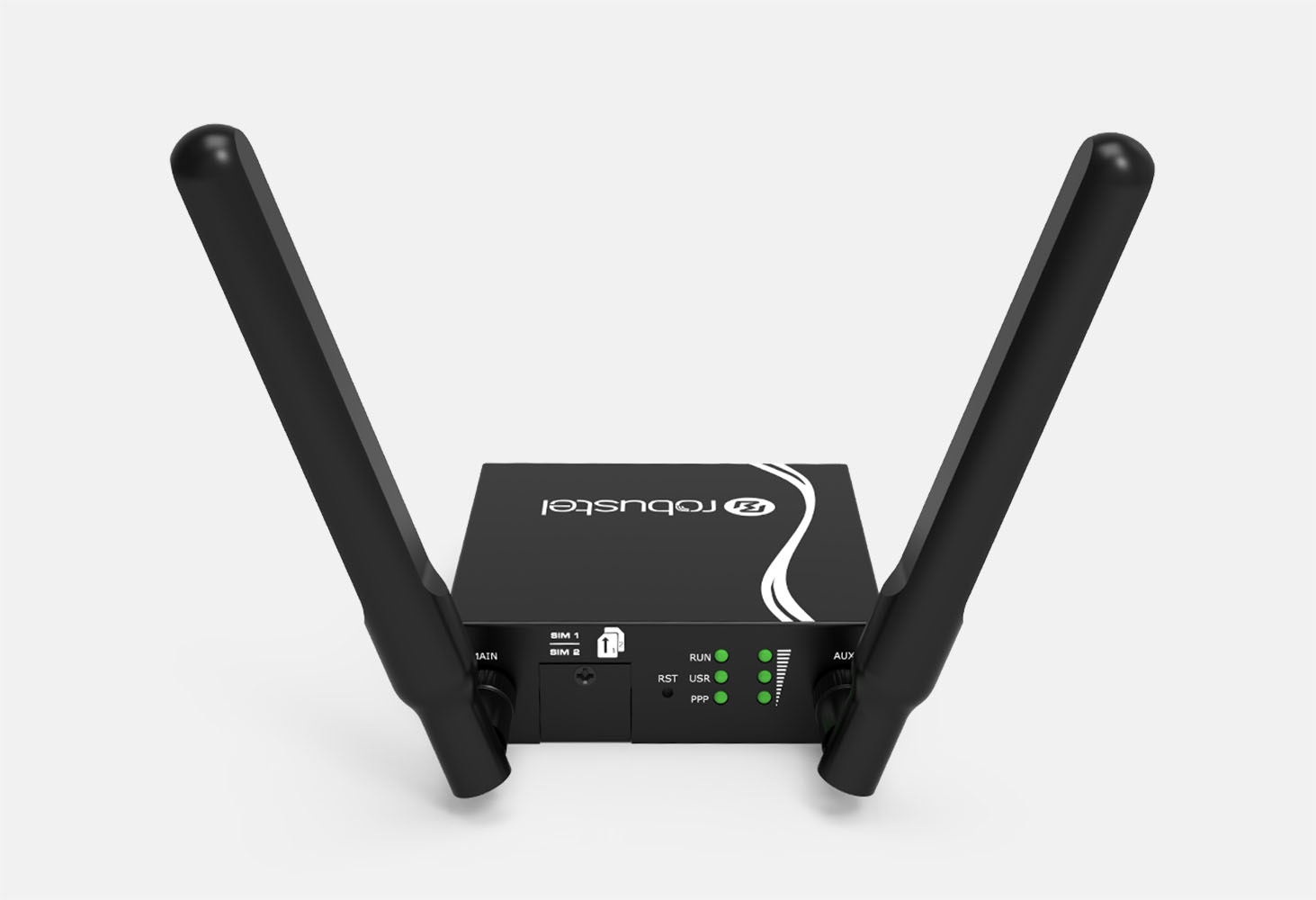

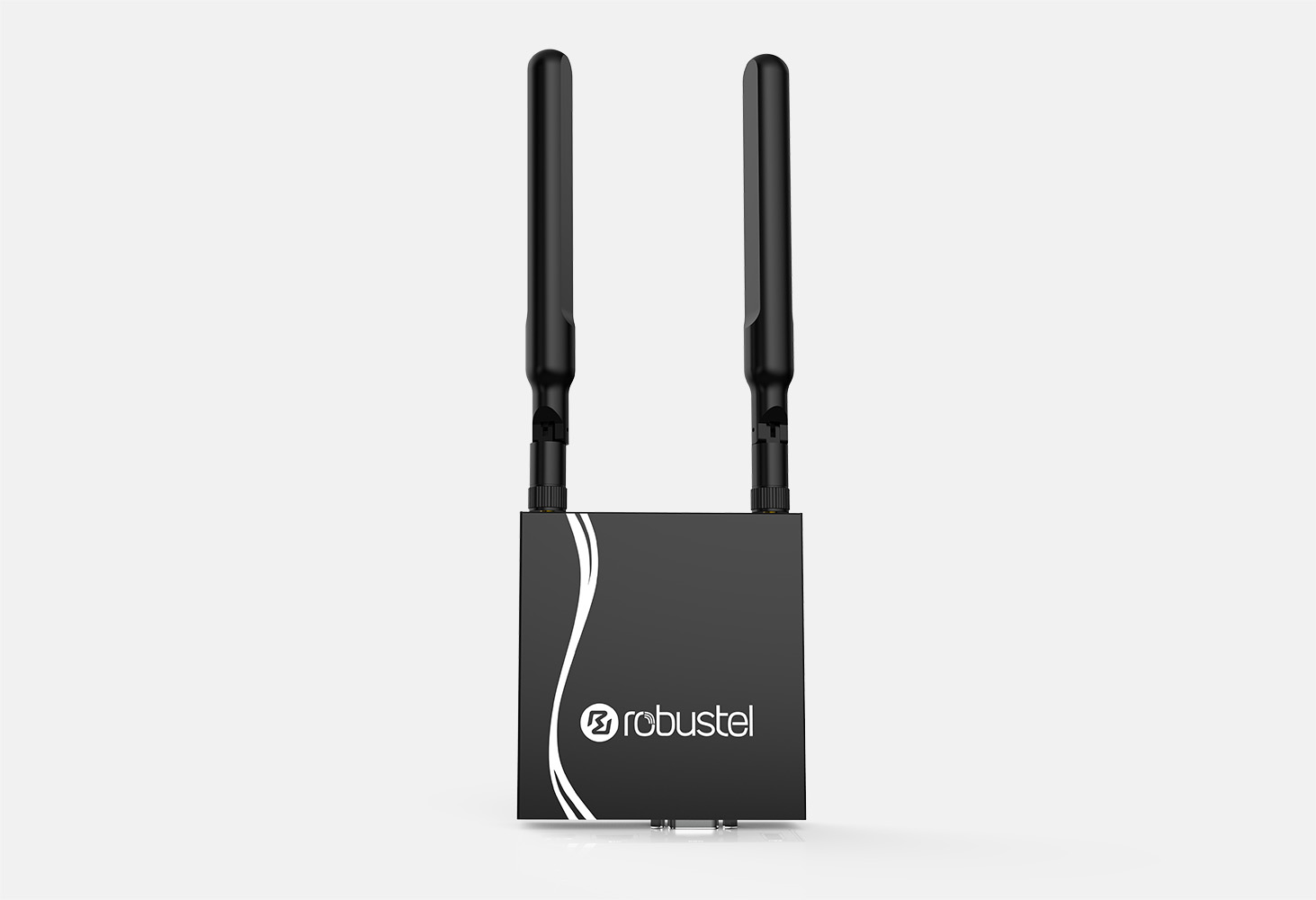

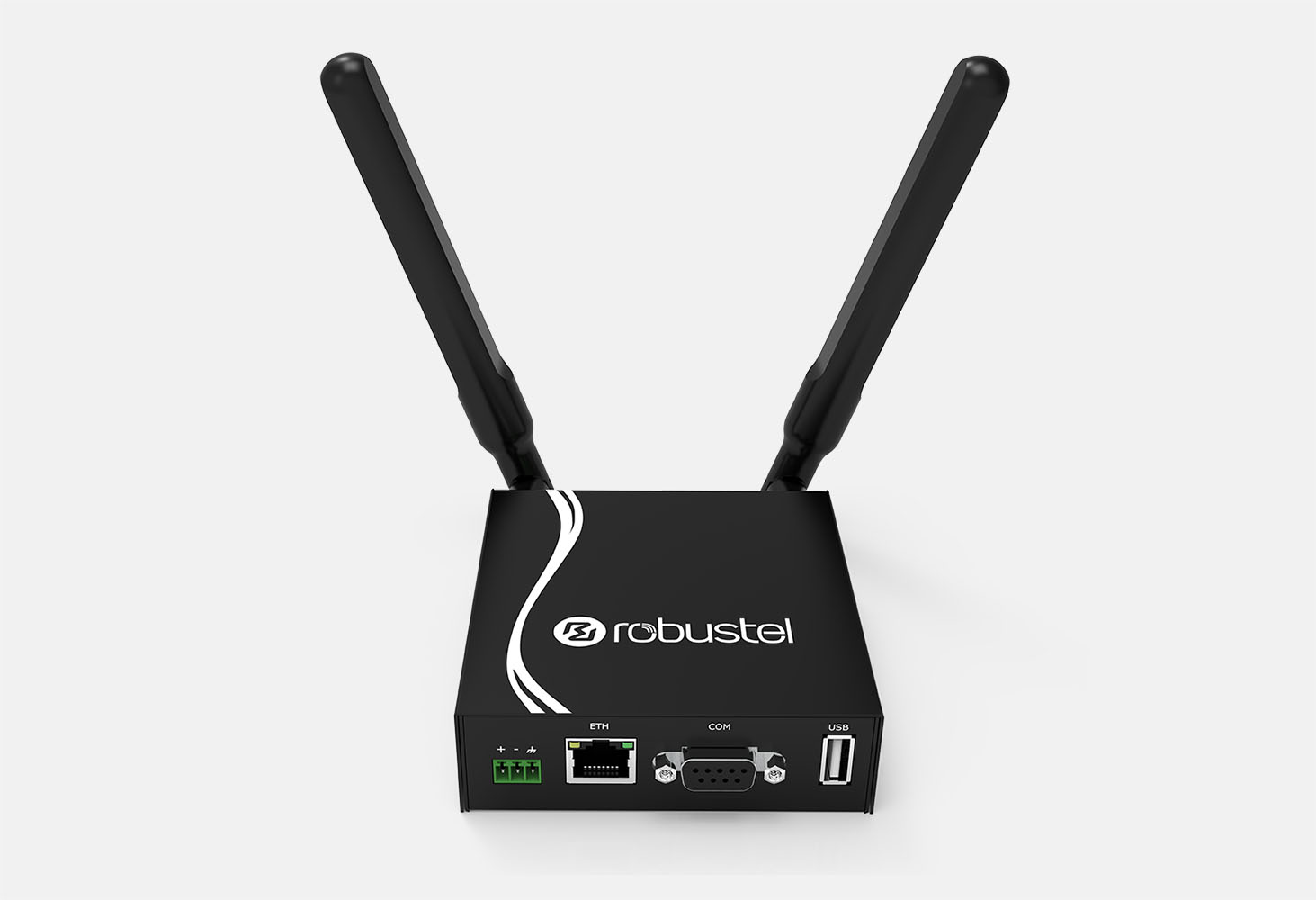

The Robustel Industrial Dual SIM Cellular VPN Router (R3000 Lite) is a rugged cellular router offering state-of-the-art mobile connectivity for machine to machine (M2M) applications. R3000 Lite is used extensively in industrial applications such as pipeline monitoring, water treatment, Gas & Electricity distribution networks and many similar environments where a hardened product with bulletproof cellular communications is required. R3000 Lite has extensive overvoltage protection, high EMC immunity and has a DIN-rail / panel mount form-factor making it ideal for use in any kind of industrial automation enclosure.
The following software features are present on R3000 Lite:
Smart Roaming – intelligent network selection tool for roaming SIMs
RobustVPN – Simple remote access on any SIM using Robustel hosted VPN
RCMS – Free Router Management Platform – very feature rich
Data Guard – Automatically stop data overruns to avoid billshock
Key Features
| Cellular Interface | |
| Number of ports | 2 (MAIN + AUX) |
| Connector | SMA-K |
| SIM | 2 Mini SIM (2FF) |
| Standards | GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE |
| Ethernet Interface | |
| Number of ports | 1 x 10/100 Mbps LAN port |
| Magnet isolation protection | 1.5 KV |
| Serial Interfaces | |
| Number of ports | 1 x RS-232 and 1 x RS-485 |
| Connector | DB9, female |
| ESD protection | ±15 KV |
| Baud rate | 300 bps to 230400 bps |
| Flow control | RTS/CTS (for RS232) |
| Others | |
| Reset button | 1 x RST |
| Expansion | 1 x USB 2.0 host up to 480 Mbps |
| LED indicators | 1 x RUN, 1 x PPP, 1 x USR, 3 x RSSI |
| Built-in | RTC, Watchdog, Timer |
| Software(Basic features of RobustOS) | |
| Network protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, RIP, OSPF, SSH2, DDNS, etc. |
| VPN tunnel | IPsec, OpenVPN, GRE |
| Firewall | DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Management | Web, CLI, SMS |
| Serial port | Transparent, TCP Client/Server, UDP, Modbus RTU Gateway |
| App Center | |
| Apps | L2TP, PPTP, DMVPN, RobustVPN, VRRP, QoS, Data Guard, WLAN Multi AP, SNMP, Language, RCMS |
| *Request on demand. For more Apps please visit www.robustel.com. | |
| SDK | |
| Supported programming language | C, C++ |
| Flash available for SDK | 64 MB |
| RAM available for SDK | 64 MB |
| Power Supply and Consumption | |
| Power supply interface | 3.5 mm terminal block |
| Input voltage | 9 to 36 VDC |
| Power consumption | Idle: 100 mA @ 12 V |
| Data link: 400 mA (peak) @ 12 V | |
| Physical Characteristics | |
| Ingress protection | IP30 |
| Housing & Weight | Metal, 305g |
| Dimension | 105 mm x 98 mm x 29.5 mm |
| Installation |
Desktop or wall mounting or 35 mm DIN rail
mounting
|
| Regulatory and Type Approvals | |
| Environmental | RoHS 2.0, WEEE |
| EMI | EN 55032: 2012/AC: 2013 (CE & RE) Class B |
| EMS | IEC 61000-4-2 (ESD) Contact Level 2; Air Level 3
IEC 61000-4-3 (RS) Level 2 IEC 61000-4-4 (EFT) Level 2 IEC 61000-4-5 (Surge) Level 3 IEC 61000-4-6 (CS) Level 2 |
R3000 Lite Quick Guide (Installation and Configuration)
R3000 Lite User Guide
R3000 Firmware 5.1.0
R3000 Lite Hardware Manual
RobustOS Software Manual
*All Robustel Firmware and RobustOS Apps are now available to download from the App Centre section of RCMS Cloud.
If you don’t already have access to RCMS Cloud you can Sign Up freely.
*Please contact our Technical Support if you have any trouble finding the resources.
| Model | PN | Category | Frequency Bands* | Country/Region | Certifications (*In progress) |
| R3000-L4L | B025712 | Cat 4 | 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28
LTE TDD: B40 3G: WCDMA: B1/B2/B5/B8 2G: GSM: B2/B3/B5/B8 |
Oceania
South America |
RCM, CRC, SUBTEL, MTC, ENACOM, URSEC |
| B025717 | Cat 4 | 4G: LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41 3G: WCDMA: B1/B5/B8 2G: GSM: B3/B8 |
EMEA | CE, UKCA, CB | |
| B025718 | Cat 4 | 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/
B18/ B19/B20/B25/B26/B28 LTE TDD: B38/B39/B40/B41 3G: WCDMA: B1/B2/B4/B5/B6/B8/B19 2G: GSM: B2/B3/B5/B8 |
EMEA | CE, UKCA, CB | |
| B025719 | Cat 4 | 4G: LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41 3G: WCDMA: B1/B6/B8/B19 |
Japan | Telec, JATE | |
| B025720 | Cat 4 | 4G: LTE FDD: B1/B3/B7/B8/B20/B28A
3G: WCDMA: B1/B8 2G: GSM: B3/B8 |
EMEA | CE, UKCA, CB |
* For more information about frequency bands in different countries, please contact your Robustel sales representative.
