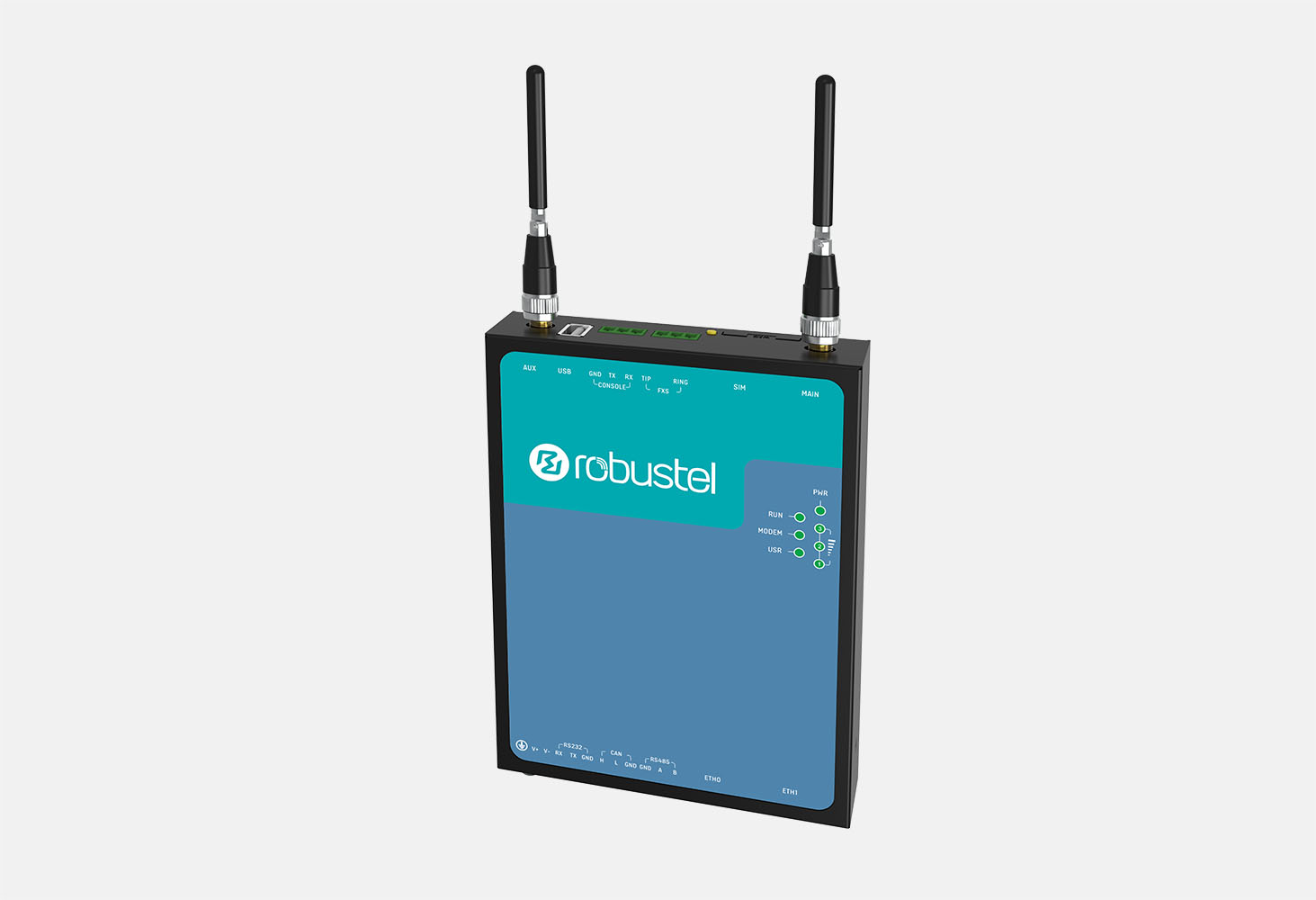

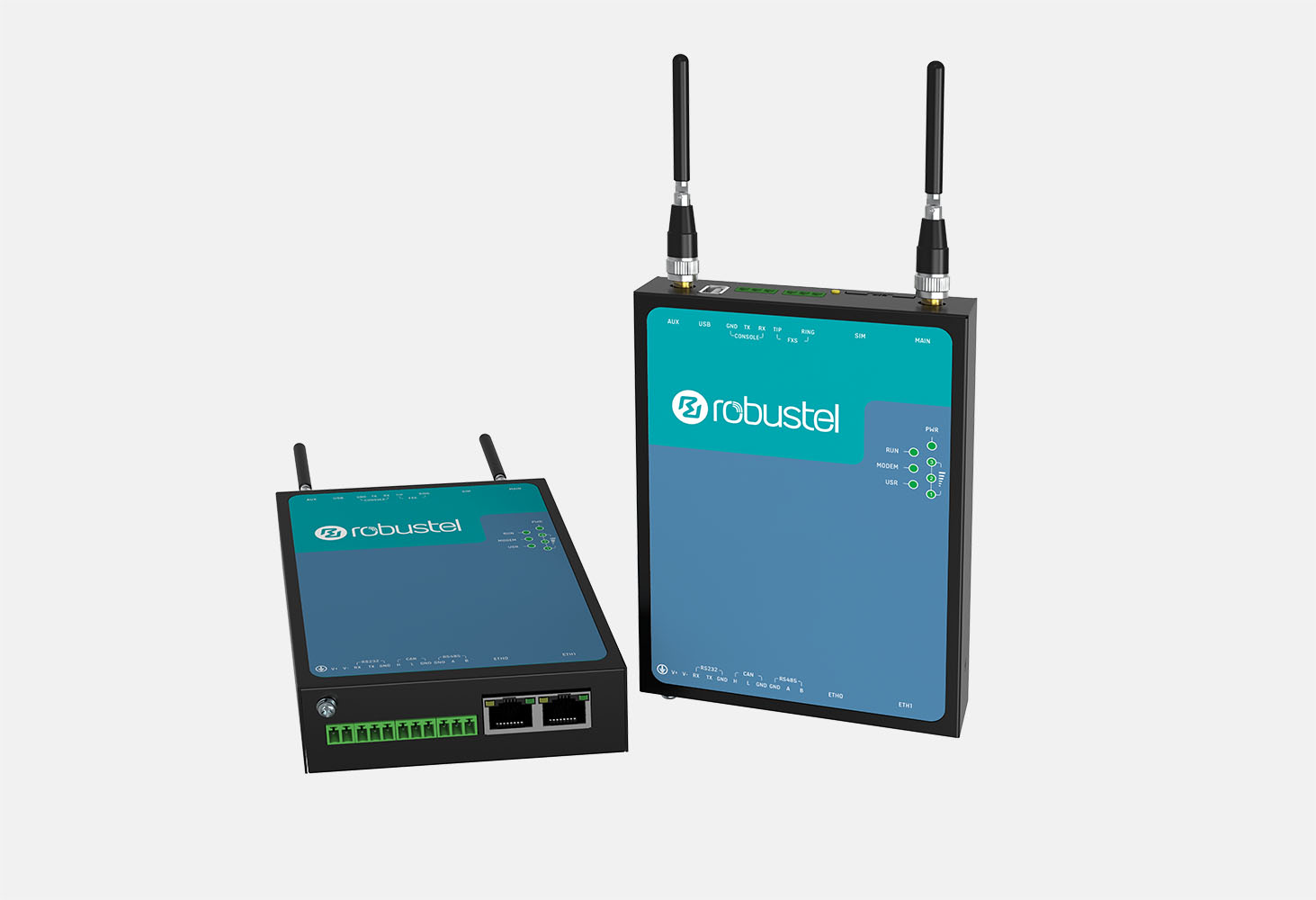

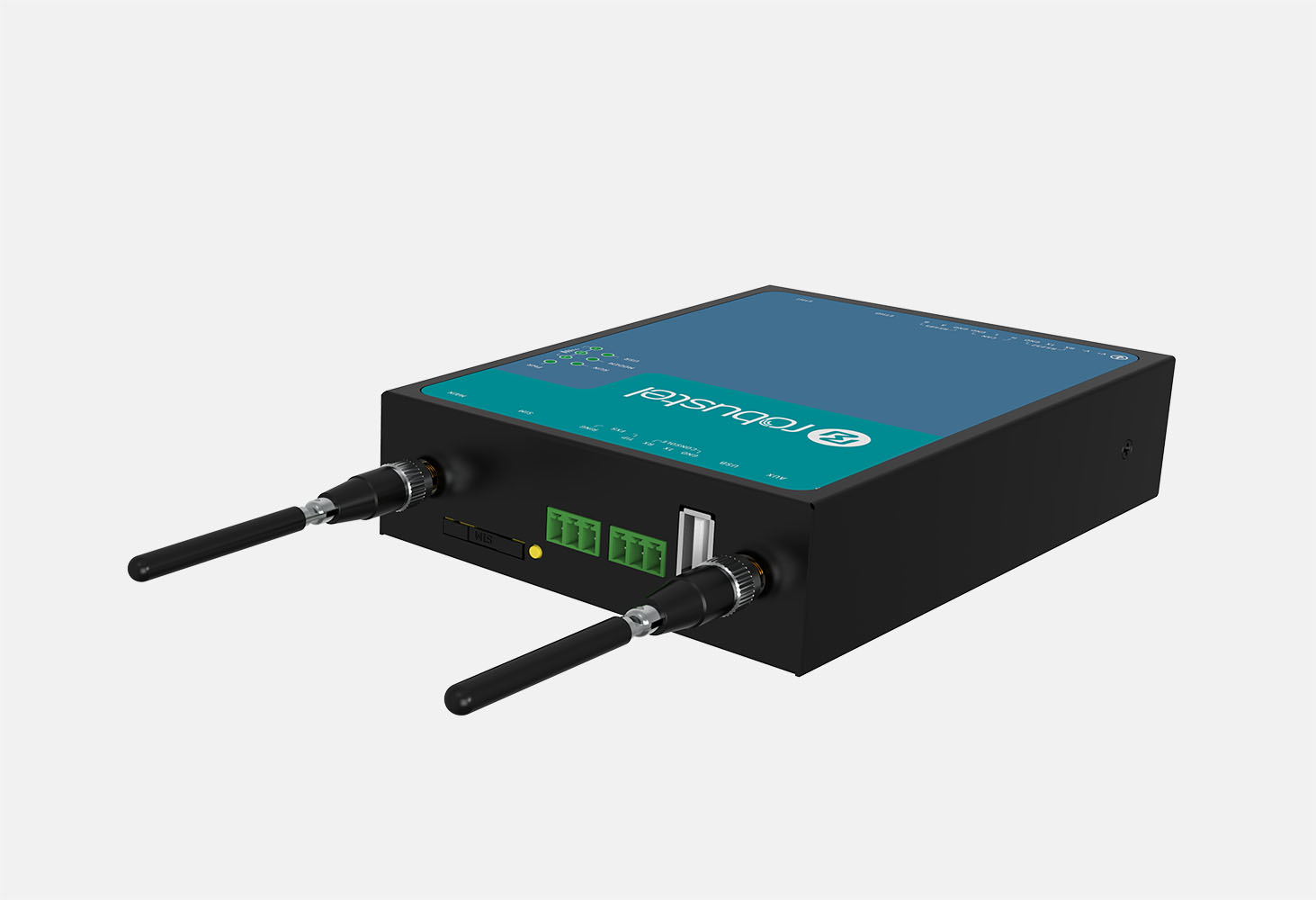

R3010 Industrial Gateway

Industrial Cellular IoT Gateway.
Designed for elevator monitoring and provides fast, reliable and stable Internet connectivity.

  • Key Features
  • Specification
  • Documentation
  • Model

R3010 is an industrial gateway designed for elevator monitoring and provides fast, reliable and stable Internet connectivity.



Key Features

  • 2G/3G/4G cellular network Support
  • Support always online and connect according to needs
  • Various interfaces: RS232/CAN/RS485/Console/USB/Ethernet/FXS
  • RS485 serial port supports BACnet protocol
  • Support voice communication
  • Support IPSec, OpenVPN, PPTP, L2TP, GRE, DMVPN
  • Support Modbus RTU/ASCII converts to TCP
  • Built-in real time clock, software watchdog
  • Support message, telephone and reboot at regular time
  • Support e-mail and message event alert
  • RobustOS + SDK + App
  • Equipped with third party management platform, to realize real-time processing and analysis, fault real-time warning
  • Management via SMS/Web/CLI/SNMP/RobustLink Cloud
  • Robust industrial design (9 to 26V DC, desktop, wall or DIN rail mounting)



Cellular Interface
Number of Antenna 2 (MAIN + AUX)
Type of Ports SMA-K
SIM slot Number 1 (3.0 V/1.8 V)
Standards GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE



Device Management
Management Web, CLI, SNMP v1/v2/v3, SMS
RobustLink device management cloud platform
RobustVPN VPN cloud platform



LED Indicators
LED Indicators RUN, MODEM, USR, RSSI(1-3), PWR
Network port indicator



Voice Interface
Physical Connector 3-pin 3.81mm connector
Interface type 1xFXS
Interface Standard ITU Q.512 (SLIC), ITU K.20 (overcurrent and overvoltage protection)
Subscriber line interface circuit (SLIC)
Ring voltage 40~90 Vpk configurable
Ring frequency 20~25 Hz
Ring waveform sinusoidal
Maximum ringer load 5 ringer equivalence numbers (RENs)
On-hook voltage (tip/ring) -46~-56V
Off-hook current 18~20 mA
Terminating impedance configurable



Other
Number of Ports 1x RS-232, 1 x CAN, 1 x RS-485 serial port, 1 x Console, 1 x SIM port
RS-232 Tx, Rx, GND
CAN H, L, GND
RS-485 A (Data+), B (Data-), GND
Console Tx, Rx, GND
Interface 3-pin 3.81mm connector
Type of Ports 2 x SMA female antenna port (MAIN +AUX)
Ethernet Port 2 x 10/100 Mbps (ETH0 + ETH1)
Expansion 1 x USB 2.0 host up to 480 Mbps



Software(Basic features of RobustOS)
Network protocols PPP、PPPoE、TCP、UDP、DHCP、ICMP、NAT、HTTP、HTTPs、DNS、ARP、RIP、OSPF、NTP、SMTP、Telnet、VLAN、SSH2、IP Pass-through, etc.
VPN tunnel IPsec, OpenVPN, GRE
Firewall DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Management Web, CLI, SMS
Serial port Transparent, TCP Client/Server, UDP,
Modbus RTU Gateway, BACnet



App center(Apps of RobustOS)
Apps L2TP、PPTP、DMVPN、RobustVPN、DDNS、VRRP、QoS、Captive Portal、WLAN Multi AP、SNMP、Language、RobustLink
*Request on demand, for more Apps please visit www.robustel.com.



Power Supply and Consumption
Power supply interface 2-pin 3.81mm connector
Input voltage 9 to 26 VDC
Power consumption 900 mA (MAX) @ 9 V, 600 mA (MAX) @ 12 V, 400 mA (MAX) @ 26 V



Physical Characteristics
Industry Protection Level IP30
Housing Metal, 300g
Dimensions 134mm x 98mm x 32mm
Installation Desktop, wall and DIN rail mounting
Operation Temperature -40~75°C
Storing Temperature -40~85°C
Humidity 5~95%RH




Approvals

Regulatory

CE, FCC, IC, PTCRB, Telec

Carrier

AT&T

Environmental

RoHS2.0, WEEE

Model

R3010-4L

Antenna Number

2

Air Interface

GSM/GPRS/EDGE/ HSDPA/HSUPA/HSPA+/FDD LTE

Frequency Bands

EMEA: B1/B3/B5/B7/B8/B20; B38/B40/B41

AU: B1/B2/B3/B4/B5/B7/B8/B28; B40

NA: B2/B4/B5/B17

JP: B1/B3/B8/B18/B19/B26; B41

4G*

3G

EMEA: B1/B5/B8

AU:B1/B2/B5/B8

NA: B2/B5

JP: B1/B6/B8/B19

2G

EMEA: B3/B8

AU: B2/B3/B5/B8

Operating Temperature

-40 to +75°C

Storage Temperature

-40 to +85°C

Relative Humidity

5 to 95% RH

*For more information about 4G frequency bands in different countries, please contact your Robustel sales representative.
