R1510

Industrial Cellular VPN Router
R1510 industrial cellular IoT gateway provides high speed wireless network bandwidth for device by wireless connection and with Ethernet, Wifi and 4G internet connection options with auto-failover to ensure the stable connection of wireless network.

  • Key Features
  • Specification
  • Documentation
  • Model

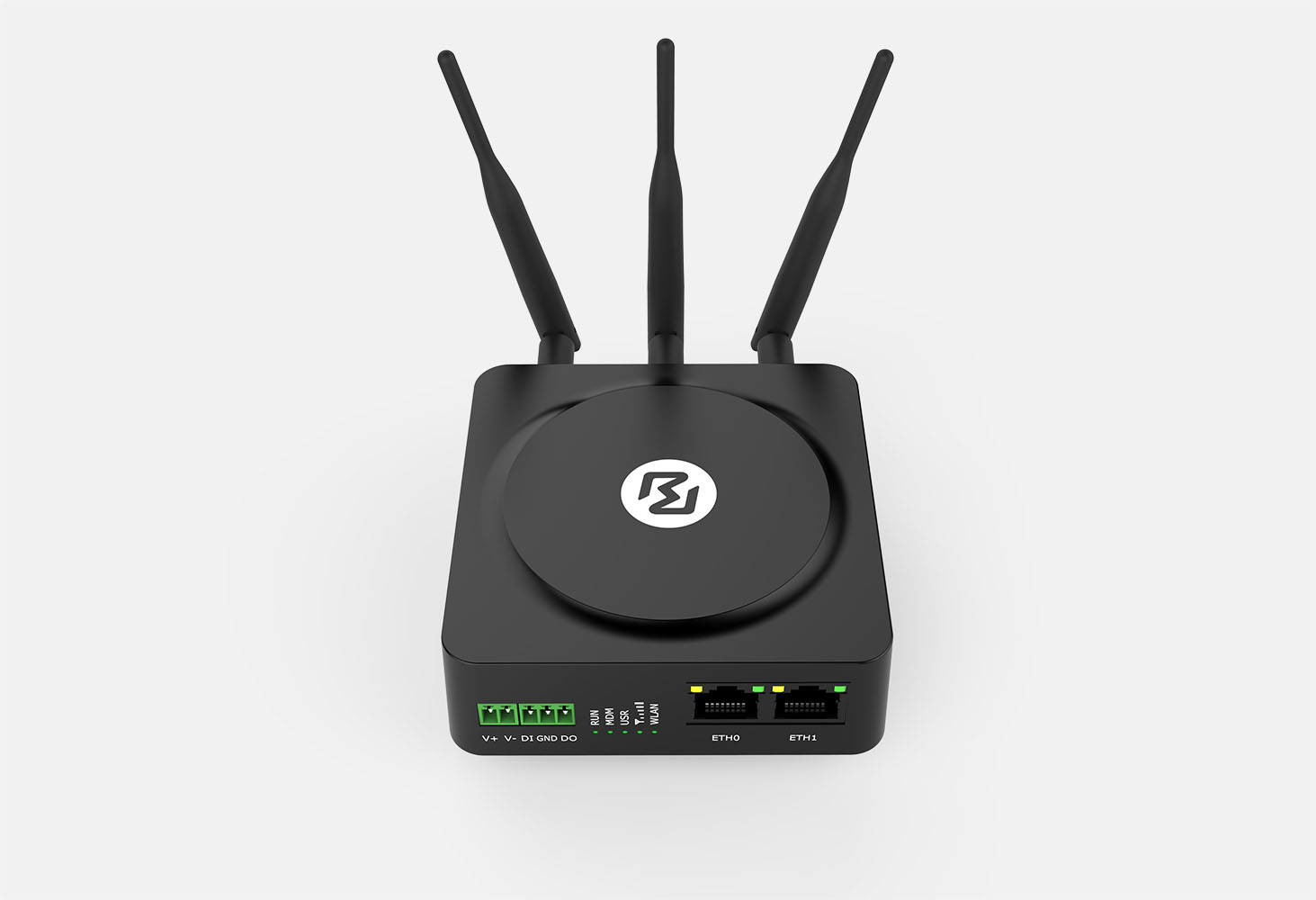

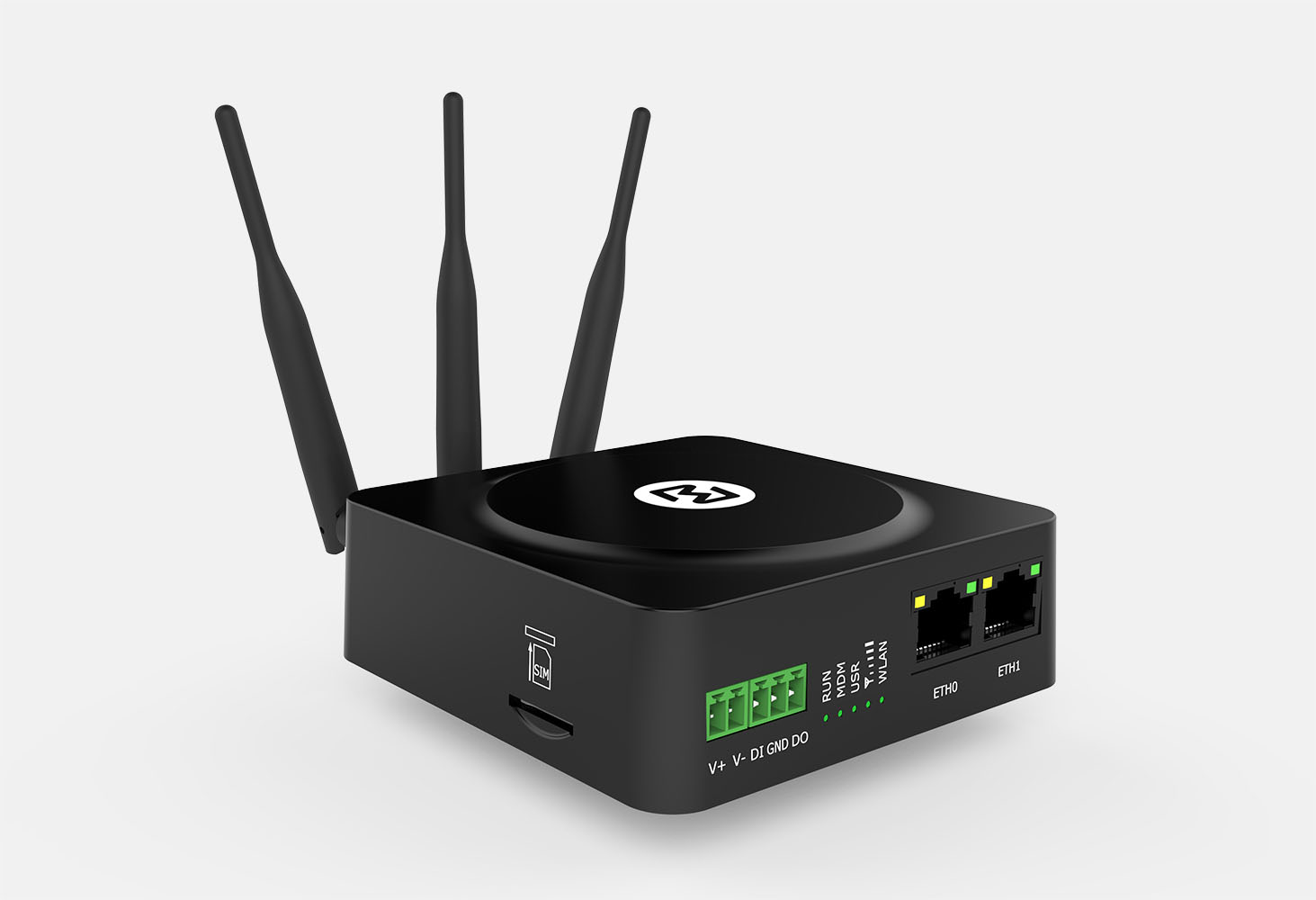

Robustel’s R1510 router is a Dual Ethernet port (LAN + WAN) 3G/4G router with advanced software functions at a very competitive price point.

The R1510 has many unique software innovations including, but not limited to:
RobustVPN – innovative use of Open VPN tunneling to provide a fixed IP address on ANY SIM Card.
RCMS – Robustel’s Cloud management platform – essential for managing an estate of routers – Basic version FREE.
Data Guard – critical ‘failsafe’ that stops unexpected data overusage within seconds of a threshold being breached.
Smart Reboot – essential backup solution for when your roaming SIM card doesn’t roam!



KEY FEATURES

  • Highly stable 2G/3G/4G cellular connections
  • Ethernet, Wifi and 4G internet connection options with auto-failover
  • Free cloud management platform –RCMS
  • Fully programmable Linux environment with excellent SDK Documentation
  • ‘Smart Reboot’for enhanced roaming SIM management
  • RobustVPN provides fixed IP address on ANY SIM card
  • Full SMS control for diagnosis and recovery from data network problems
  • Very small footprint for space-constrained applications
  • Wall-mount and DIN-rail mounting options available

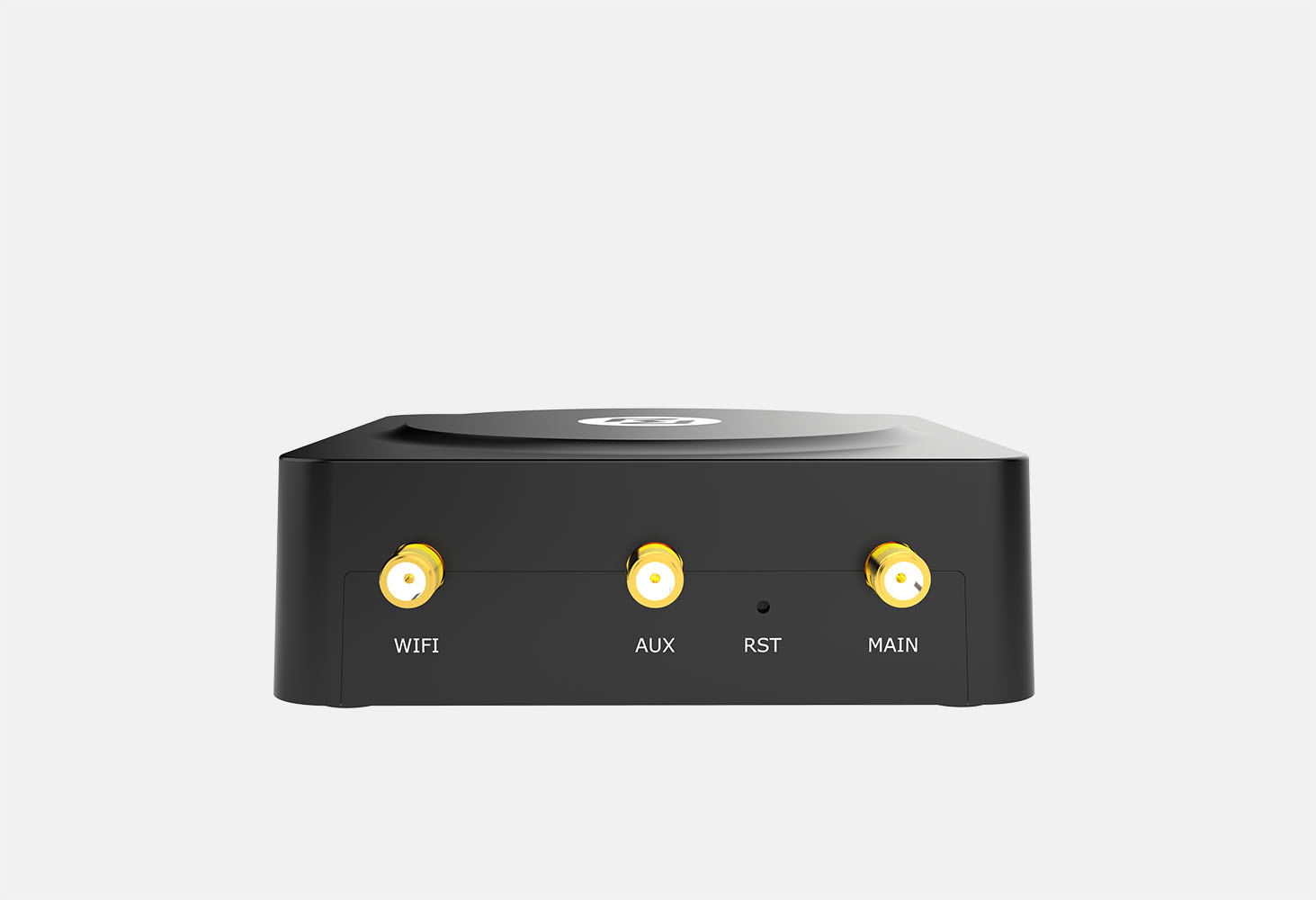

Cellular Interface

Number of antennas

2 external antenna (MAIN + AUX)

Connector

SMA-K

SIM

1 (3 V & 1.8 V) Standard SIM or eSIM



Ethernet Interface

Number of ports

2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN

Magnet isolation protection

1.5 KV



WiFi Interface

Number of antennas

1 external antenna

Connector

RP-SMA-K (external antenna)

Standards

802.11b/g/n, supports AP and Client modes

Frequency bands

2.4 GHz

Security

WEP, WPA, WPA2

Encryption

64/128 AES, TKIP

Data speed

2*2 MIMO, 300 Mbps

RF output power (+/-1 dBm)









802.11b                        19 dBm

802.11g                        19 dBm

802.11n (20 MHz)     18 dBm

802.11n (40 MHz)      17 dBm

Receiving sensitivity (+/-1 dBm)









802.11b                        -93 dBm

802.11g                        -90 dBm

802.11n (20 MHz)     -88 dBm

802.11n (40 MHz)     -85 dBm



DI/DO

Type

1 x DI (wet contact) + 1 x DO (wet contact)

Connector

3-pin 3.5 mm female socket

Absolute maximum VDC

30V DC (DI/DO)



Absolute maximum ADC

20mA



Others

Reset button

1 x RST

LED indicators



1 x RUN, 1 x MDM, 1 x USR, 1 x RSSI, 1 x WiFi

Built-in

Watchdog, Timer





Software (Basic features of RobustOS)

Network protocols



PPPoE, DHCP , NAT, DNS, NTP, SMTP, Telnet, VLAN,VLAN, VLAN, SSH2, DDNS, etc.

VPN tunnel

IPsec, OpenVPN, GRE

Firewall

DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control

Management

Web, CLI, SMS





App Center (Available Apps for RobustOS)

Apps*

L2TP, PPTP, DMVPN, VRRP, QoS, WLAN Multi AP, SNMP

*Request on demand. For more Apps please visit www.robustel.com.



Power Supply and Consumption

Connector

2-pin 3.5 mm female socket

Input voltage

9 to 36V DC

Power consumption

Idle: 100 mA@12 V

Data link: 500 mA (peak) @12 V

Physical Characteristics

Ingress protection

IP30

Housing & Weight

Plastic, 150 g

Dimensions

91.5 x 91.5 x 30.8mm

Installations

Desktop, wall mounting and 35 mm DIN rail mounting





Approvals

Regulatory:

CE, Telec, RCM

Environmental:

RoHS 2.0, WEEE

EMI

EN 55032: 2012/AC: 2013 (CE & RE) Class A

EMS









IEC 61000-4-2 (ESD) Contact Level 2;

IEC 61000-4-3 (RS) Level 2

IEC 61000-4-4 (EFT) Level 2

IEC 61000-4-5 (Surge) Level 2

IEC 61000-4-6 (CS) Level 2

(* :In progress)



Model

R1510-4L

Router Type

LTE Router

Air Interface

GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/

TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE/



Frequency Bands

EU: B1/B3/B7/B8/B20/B28

AU+LATAM: B1/B3/B5/B7/B8/B28, B40

CN+IN: B1/B3/B5/B8, B34/B38/B39/B40/B41

4G*

3G

WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+: B1/B2/B5/B8

TD-SCDMA: B34/B39

CDMA (CDMA 1X/EVDO):BC0

2G

B3/B8

Operating Temperature

-25 to +70 °C

Storage Temperature

-40 to +85 °C

Relative Humidity

5 to 95% RH

* Please note that the different LTE frequency bands are model dependent and not all 4G frequencies are currently supported on a single model of R1510 router.

* Please contact your sales representative for more detailed information on model numbers and for availability of “Global” routers.
