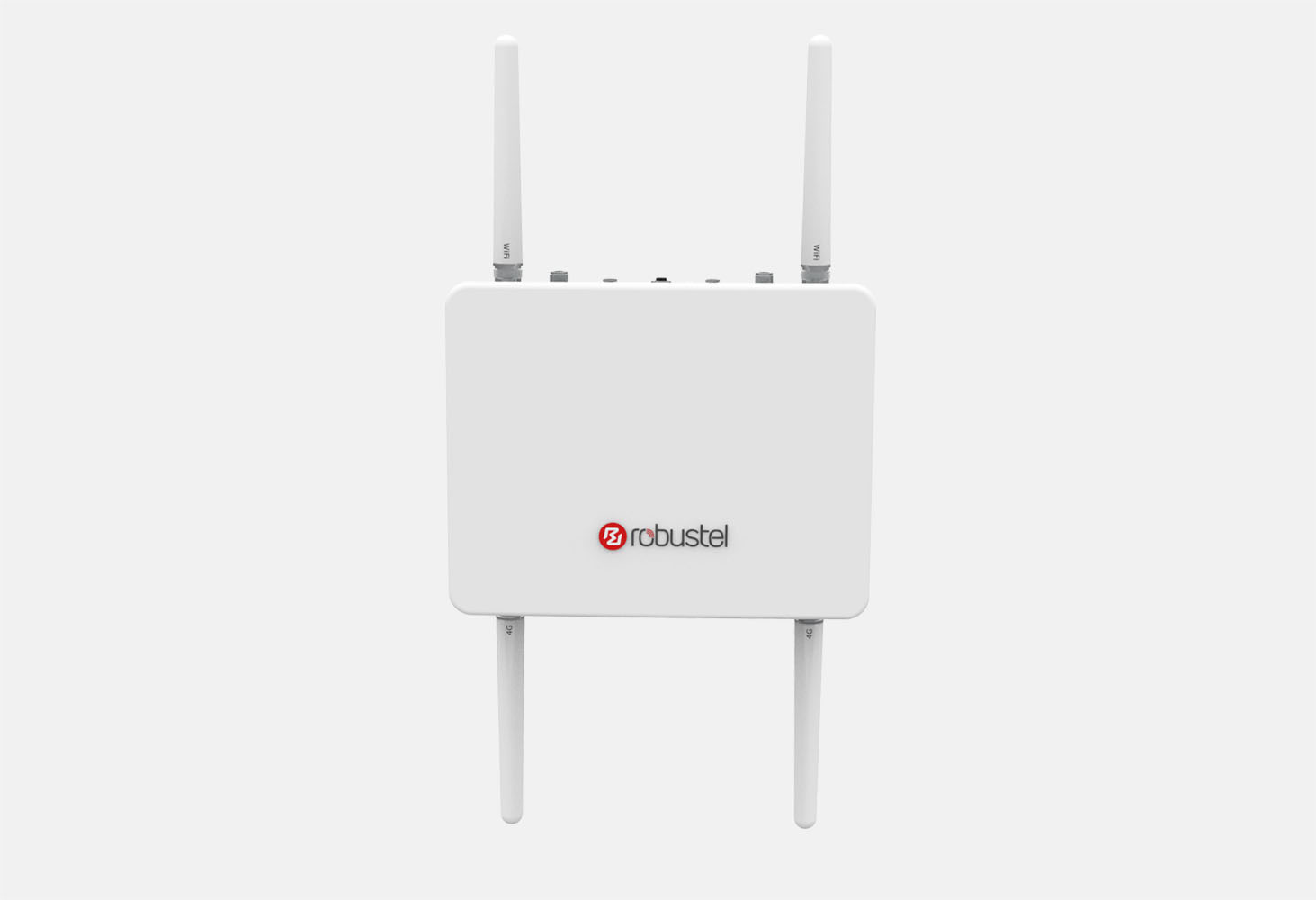

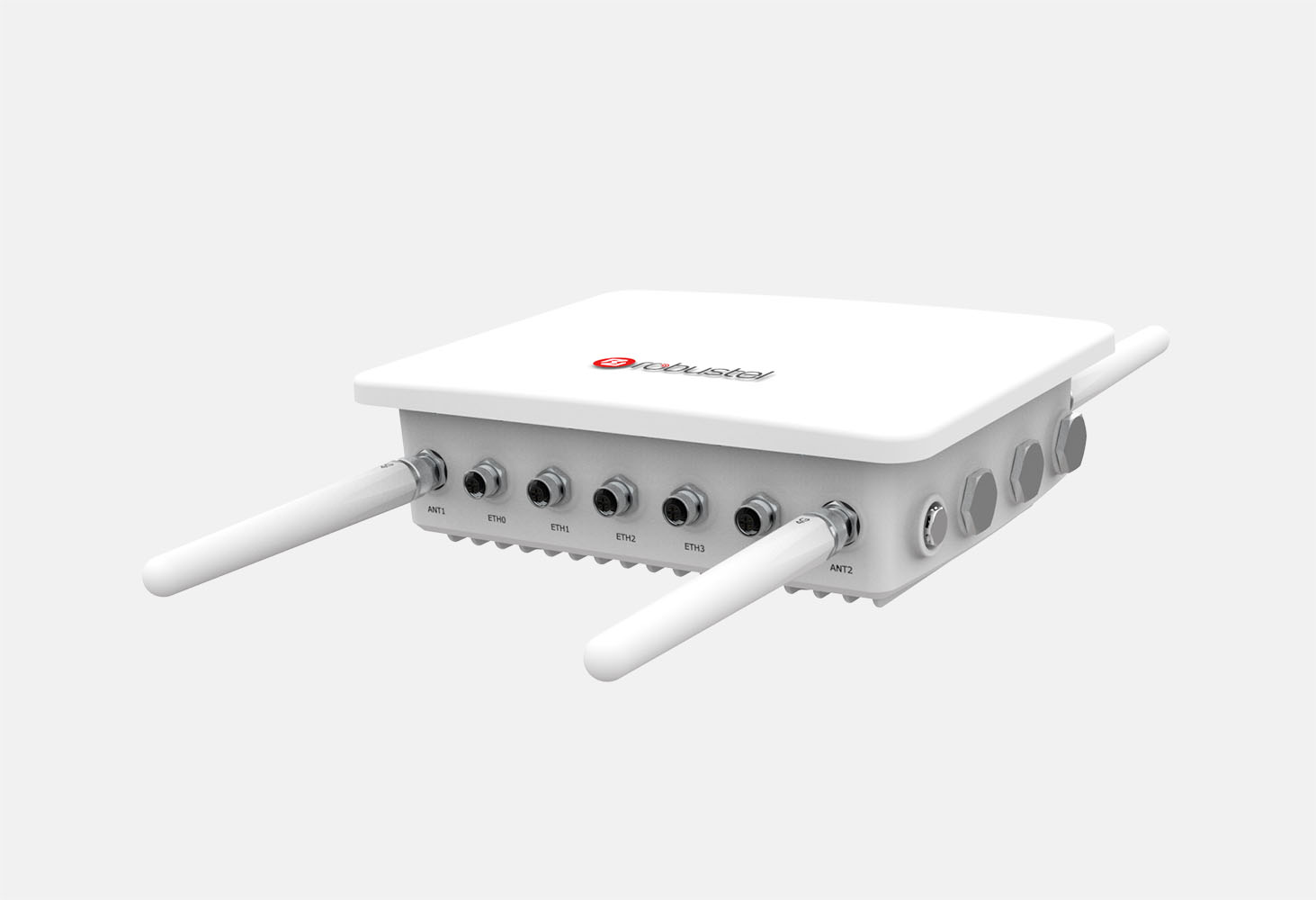

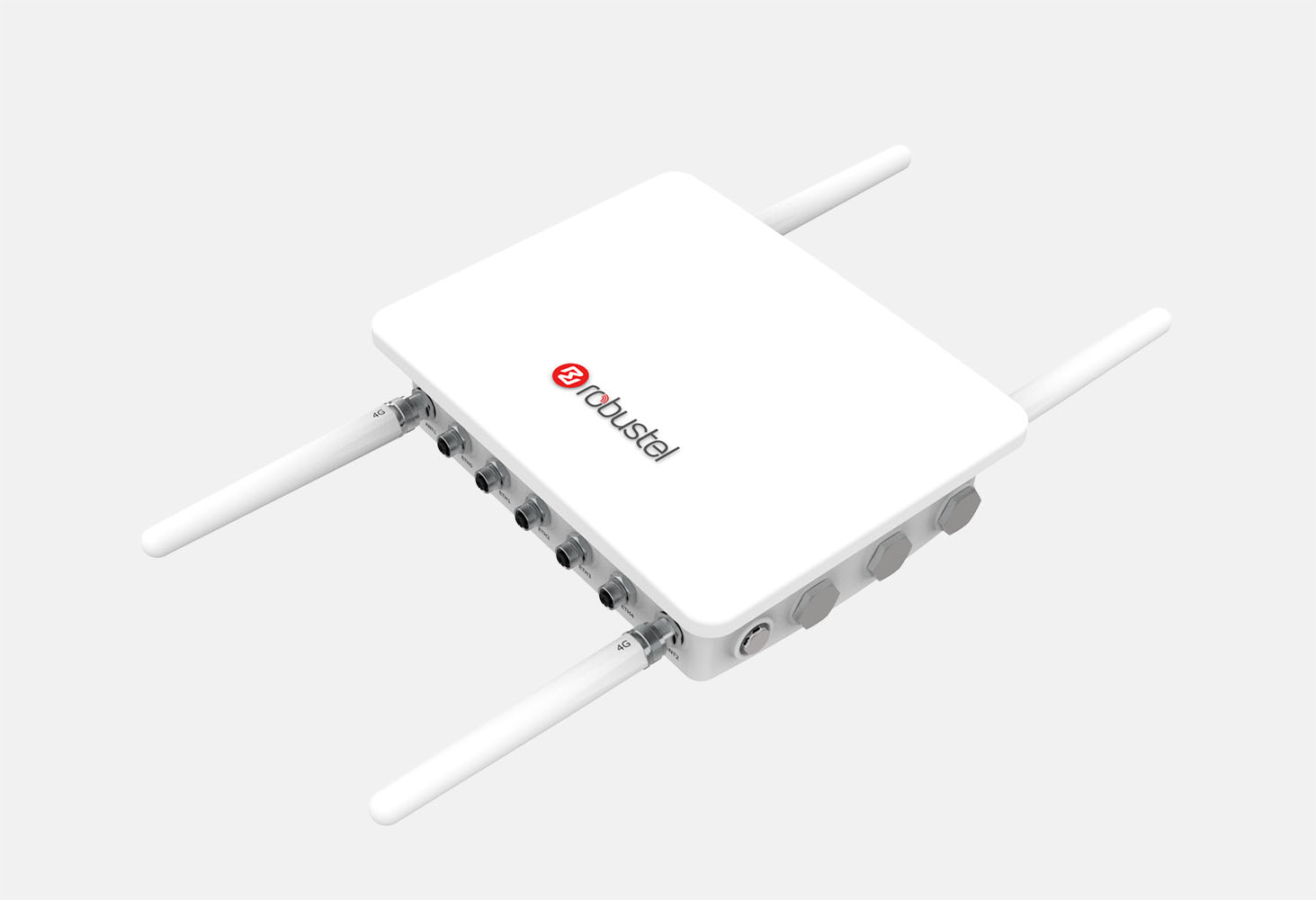

TPH6700 IP67 Industrial Housing

TPH6700 IP67 Rated Industrial Housing

This IP67 PC/ABS Housing allows you to combine a powerful device and a robust enclosure together in a single unit. The housing provides high-level protection for your devices.

The TPH6700 can be mounted either on a wall or a pole, and will survive in diverse temperatures and environments.

  • Key Features
  • Specification
  • Downloads
  • Model

TPH6700 IP67 Rated Industrial Housing



Designed to protect devices and connectors from extreme outdoor environments and harsh industrial conditions, the Robustel Typhoon 6700 IP67 PC/ABS Housing (TPH6700) provides a weatherproof enclosure based on the available features of R2000/R2000D/R3000/R3000Q/R3000LG/R1520.

With an IP67 rated enclosure, the TPH6700 can be mounted either on a wall or a pole and positioned in diverse temperatures and environments.



Key Features

  • IP67 ingress protection withstanding water, dust and other extreme weather conditions
  • Standards for the housing-Performance requirement for high and low temperature
  • Ageing-resistance level (UL746C)
  • Flame-retardant level (grade 2 of UL746C)
  • Standard requirement for environment protection
  • Applicable to the majority of Robustel’s products
  • Various interfaces meeting the different scenarios
  • Easy wall or pole mounting options







Cellular Interface
Number of antennas 4 or 2 connectors (optional)

(MAIN + AUX + ANT1 + ANT2)

Connector M16, N-port female


Wi-Fi Interface

Number of antennas 2 (MAIN + AUX)
Connector M16, N-port female


Ethernet Interface

Number of ports 5, 2 or 1 ports (optional)

10/100 Mbps

Connector M12


Serial Interface

Number of ports 1 x RS232, 1 x RS485

or 1 x RS232 + 1 x RS485

Connector M12, 8-pin


Power Interface

Number of ports 1 x Power + 1 x Power (optional)
Connector M12, 3-pin or 5-pin (optional)
Input voltage 9 – 60V DC

(R2000: 9 – 36V DC)

Optional: 48 – 57V, PoE input



Physical Characteristics

Enclosure cover Fully detachable
Material&Weight PC/ABS, 1010 g
Dimensions 310 x 245 x 93.4 mm
Installations Wall mounting & pole mounting


Approvals

Regulatory CE, RCM
Application IP67 test
Environmental RoHS, WEEE
TPH6700 Datasheet



TPH6700 Quick Guide (Installation and Configuration)



*All Robustel Firmware and RobustOS Apps are now available to download from the App Centre section of RCMS Cloud.

If you don’t already have access to RCMS Cloud you can Sign Up  freely.

*Please contact our Technical Support if you have any trouble finding the resources.

PN Model Number of Cellular Antennas Number of

Wi-Fi Antennas

Number of Ethernet Ports PoE Number of Serial Ports Number of

Lora Antennas

GPS

(Internal)

Operating Environment
B021003 TPH6700-R2000 2 2 2 1 x PD Temp: -25 to 70°C  RH: 5 to 95%
B021012 TPH6700-R2000D 2 2 4 Temp: -25 to 70°C  RH: 5 to 95%
B021007 TPH6700-R2000D 4 2 5 4 x PSE Temp: -25 to 70°C  RH: 5 to 95%
B021001 TPH6700-R3000 2 1 2 1 Temp: -40 to 70°C  RH: 5 to 95%
B021011 R3000LG-OG 2 2 1 x PD 1 1 1 Temp: -40 to 70°C  RH: 5 to 95%
B021014 TPH6700-R3000Q 2 4 1 Temp: -40 to 85°C  RH: 5 to 95%
B021017 TPH_R3000LG 2 2 1 1 1 Temp: -40 to 70°C  RH: 5 to 95%
B021018 TPH_R1520 2 2 1 1 x PD Temp: -25 to 70°C  RH: 5 to 95%

*For more ordering information about TPH6700, please contact your Robustel sales representative.
