High Speed Smart LTE / LTE-A Router.
Offering state-of-the-art mobile connectivity for internet of things applications.

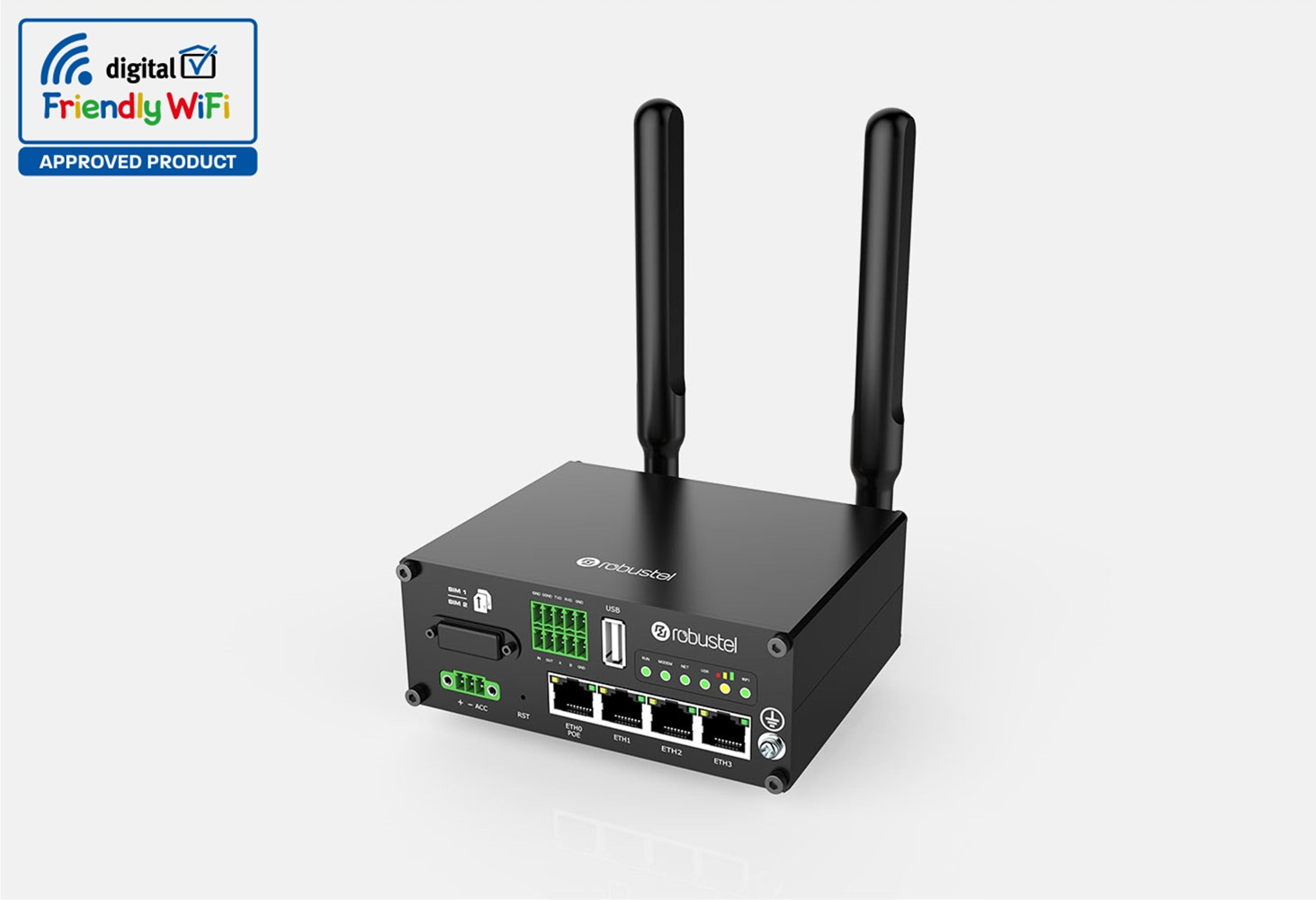

The Robustel High Speed Smart LTE /LTE-A Router (R2110) is a rugged cellular router offering state-of-the-art mobile connectivity for internet of things applications.
R2110 is a powerful platform developed based on RobustOS, a Robustel self-developed and Linux-based operating system which is designed to be used in Robustel devices. The RobustOS includes basic networking features and protocols providing customers with excellent user experience. Meanwhile, RobustOS offers Software Development Kit (SDK) allows partners and customers to develop IoT applications by using C, C++. It also provides various Apps to meet fragmented IoT market demands.
Key Features
| Cellular Interface | |
| Number of antennas | 2 (MAIN + AUX) |
| Connector | SMA-K |
| SIM | 2 Mini SIM (2FF) |
| Ethernet Interface | |
| LAN port | 3 x LAN (10/100/1000 Mbps) |
| WAN port | Support 802.3at PD feature on ETH0 |
| 1 x WAN (10/100/1000 Mbps) | |
| Magnet isolation protection | 1 KV |
| WiFi Interface | |
| Number of antennas | 2 |
| Connector | RP-SMA-K |
| Standards | 802.11a/b/g/n/ac 2*2 MIMO, supports AP and Client modes |
| Frequency bands | 2.412 – 2.472 GHz (2.4 GHz ISM band) |
| 5.15 – 5.825 GHz (5 GHz ISM band) | |
| Security | Open, WPA, WPA2, WEP |
| Encryption | AES, TKIP, WEP64 |
| Data speed | 5G: Up to 867Mbps |
| 2.4G: Up to 300Mbps | |
| Bluetooth Interface (Optional) | |
| Number of antennas | 1 |
| Connector | RP-SMA-K |
| Standards | BLE 5.0 Compatible with BLE 4.2, BLE 4.0 |
| GNSS (Optional) | |
| Number of antennas | 1 |
| GNSS technology | GPS/QZSS/GOLNASS/Galileo/BeiDou |
| Connector | SMA-K with 50 ohms impedance |
| Tracking sensitivity | GNSS: greater than -148 dBm |
| Horizontal position accuracy | GNSS: 2.5 m |
| Serial Interface | |
| Number of ports | 1 x RS-232 + 1 x RS-485 |
| Connector | 2 x 3-pin 3.5 mm female socket |
| ESD protection | ±15 KV |
| Baud rate | 300bps to 115200bps |
| DI/DO | |
| Type | 1x DI + 1 x DO, wet contact |
| Connector | 2 x 2-pin 3.5 mm female socket |
| Isolation | 3.75KV DC |
| Absolute maximum VDC | “V+” +30V DC (DI), +30V DC (DO) |
| Absolute maximum ADC | 100 mA |
| Others | |
| Reset button | 1 x RST |
| SD | 1 x Micro SD interface |
| Expansion | 1 x USB2.0 Host; 5V/500mA |
| LED indicators | 1 x RUN, 1 x Modem, 1 x USR, 1 x RSSI, 1 x NET, 1 x WIFI |
| Built-in | Watchdog |
| Software (Basic features of RobustOS) | |
| Network protocols
|
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, SSH2, DDNS, etc. |
| VPN tunnel | IPsec, OpenVPN, GRE |
| Firewall | DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Management | Web, CLI, SMS |
| Serial port | Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
| App Center (Available Apps for RobustOS) | |
| Apps* | L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Bluetooth, Dynamic Route, Data Guard |
| *Request on demand. For more Apps please visit www.robustel.com. | |
| SDK | |
| Supported programming language
|
C, C++ |
| Flash available for SDK | 5 MB |
| RAM available for SDK | 256 MB |
| Power Supply and Consumption | |
| Connector | 3-pin 3.5 mm female socket with lock |
| Input voltage | 9 ~ 36 VDC |
| Power consumption | Idle: 500 mA@12 V
Data link: 1.3 A (peak) @12 V |
| Physical Characteristics | |
| Ingress protection | IP30 |
| Housing & Weight | Aluminum, 500 g |
| Dimension | 125 x 100 x 48 mm |
| Installations | Desktop, wall mounting and DIN rail mounting |
| Operating temperature | Normal operation: -20 ~ +55 °C
Extended operation: -25 ~ +70 °C |
| Storage temperature | -40 ~ +85 °C |
| Relative humidity | 5 ~ 95% RH |
| Approvals | |
| Environmental | RoHS 2.0, WEEE |
R2110 User Guide
R2110 Firmware 5.1.0
R2110 Hardware Manual
RobustOS Software Manual
*All Robustel Firmware and RobustOS Apps are now available to download from the App Centre section of RCMS Cloud.
If you don’t already have access to RCMS Cloud you can Sign Up freely.
*Please contact our Technical Support if you have any trouble finding the resources.
| Model | PN | Category | BLE | GNSS | POE-PD | Frequency Bands | Country /Region | Certifications
(*In progress) |
| R2110-4L | B044702 | Cat 6 | – | – | ✓ | 4G: LTE FDD: B1/B3/B5/B7/B8/B18/B19/B21/B28
LTE TDD: B38/B39/B40/B41 3G: UMTS/HSPA+: B1/B5/B6/B8/B9/B19 TD SCDMA: B39 |
Oceania | Telstra, RCM |
| B044714 | ✓ | ✓ | ✓ | |||||
| B044749 | – | – | – | 4G: LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32
LTE-TDD: B38/B40/B41 3G: WCDMA: B1/B3/B5/B8 |
EMEA | CE, UKCA | ||
| B044742 | – | – | ✓ | |||||
| B044743 | – | ✓ | ✓ | |||||
| B044722 | Cat 4 | – | – | ✓ | 4G: LTE FDD: B1/B3/B7/B8/B20/B28A
3G: WCDMA: B1/B8 2G: GSM: B3/B8 |
EMEA | E-Mark, CE, UKCA | |
| B044746 | – | – | – | |||||
| B044730 | – | – | ✓ | 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/
B18/B19/B20/B25/B26/B28 LTE TDD: B38/B39/B40/B41 3G: WCDMA: B1/B2/B4/B5/B6/B8/B19 2G: GSM: B2/B3/B5/B8 |
Oceania
EMEA |
E-Mark, CE, RCM, ICASA, UKCA | ||
| B044733 | ✓ | – | ✓ | |||||
| B044739 | ✓ | ✓ | ✓ | |||||
| B044747 | ✓ | ✓ | – | |||||
| B044744 | – | ✓ | ✓ | |||||
| B044748 | – | ✓ | – | |||||
| B044751 | – | – | – | |||||
| B044735 | ✓ | ✓ | ✓ | 4G: LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41 3G: WCDMA: B1/B6/B8/B19 |
Japan | Telec, JATE | ||
| B044737 | – | – | ✓ | |||||
| B044738 | ✓ | – | ✓ |
*For more information about frequency bands in different countries, please contact your Robustel sales representative.
