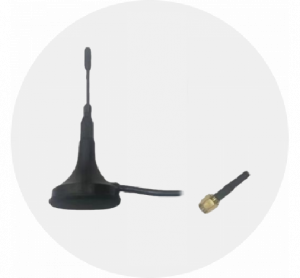

E003217 WiFi & Bluetooth Magnetic Antenna 2.7dBi 3M

  • Specification
  • Downloads
  • Model
Parameter Rated Value
Frequency Range 2.4 ~ 2.5 GHz
Gain ≤ 2.7 dBi
V.S.W.R ≤ 2.0
Polarization Linear
Radiation Pattern Omni-directional
Impedance 50 Ohm
Connector RP-SMA male
Cable 302-3, 3000 mm
Dimension Φ45 * 285 mm
Operating Temperature -40 ℃ ~ 85 ℃
RoHS Compliant
Related Products Compatible with products that support 2.4G wifi/BT
Model PN
WiFi & Bluetooth Magnetic Antenna E003217
