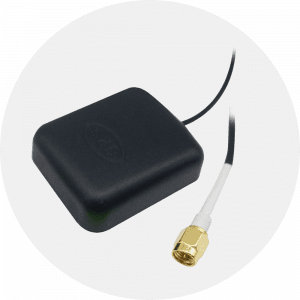

E003031 GNSS Magnetic Antenna 3.0dBi

  • Specification
  • Downloads
  • Model
Parameter Rated Value
Center Frequency 1575.42 MHz
Antenna Gain 3.0 dBi
Antenna V.S.W.R 1.5 Max
Polarization RHCP
Impedance 50 Ohm
LNA Gain 28 dBi
LNA Noise Figure 1.5 dB
Supply Voltage 2.7V/3.0V/3.3V/5.0V
Current Consumption 5mA, 10mA Max
Cable RG174, 3000mm
Mounting Method Magnet
Connector SMA Male
Operating Temperature -40℃ ~ 70℃
RoHS Compliant
