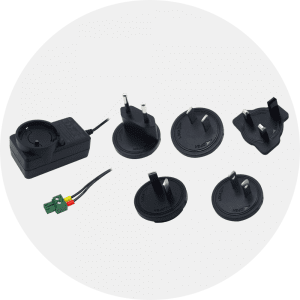

S011001-S011006 Pluggable Terminal Block Power Supply 12VDC 1.0A 12W 2PIN 3.5mm Pitch

  • Specification
  • Downloads
  • Model
Parameter Rated Value Absolute Maximum
Input Voltage 100-240VAC 90-264VAC
Input Frequency 50/60 Hz 47-63 Hz
Input Current(@100-240 VAC) – 0.4A
Inrush Current(@100-240 VAC) – 60A
Output Voltage 12 VDC 12VDC±5%
Output Current 0-1.0A –
Overshoot – 10%
Certification IEC 62368-1:2014(Second Edition)
Short-Circuit Protection √
Input Protection Fuse
HIPOT (Dielectric Withstand Test) 3000VAC
MTBF 20000 h
Input Plug&Part Number Global* UK US CN AU EU
S011001 S011002 S011003 S011004 S011005 S011006
*Note: The UK plug, US plug, AU plug, and EU plug are all included in Global version.
Output Connector Pluggable terminal block, 2PIN, 3.5mm pitch
Related Products R1510 Lite, R1510, R1511, R1511P
S011001toS011006 Pluggable Terminal Block Power Supply 12VDC 1.0A 12W 2PIN 3.5mm Pitch FLYER
Global* UK US CN AU EU
S011001 S011002 S011003 S011004 S011005 S011006
