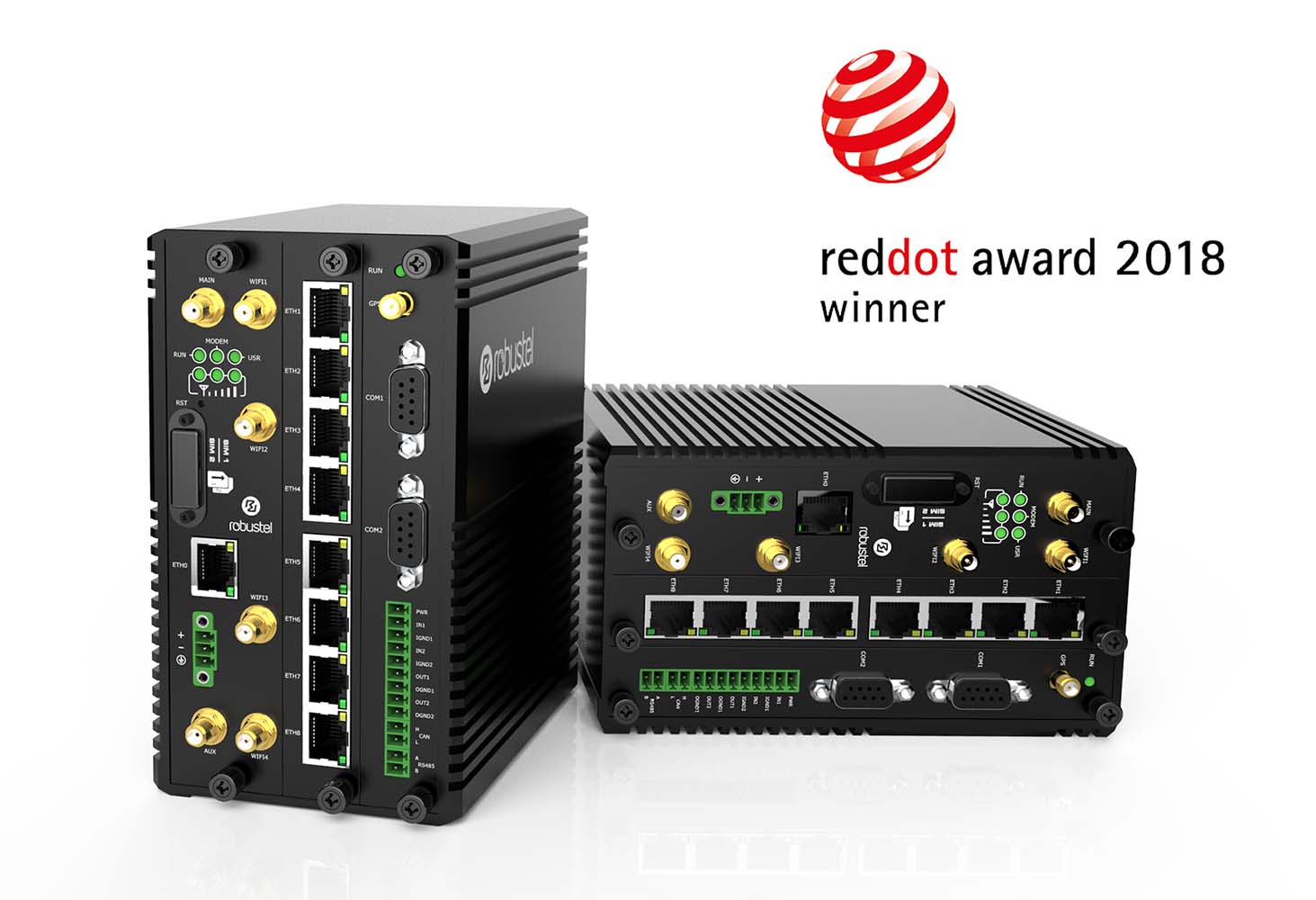

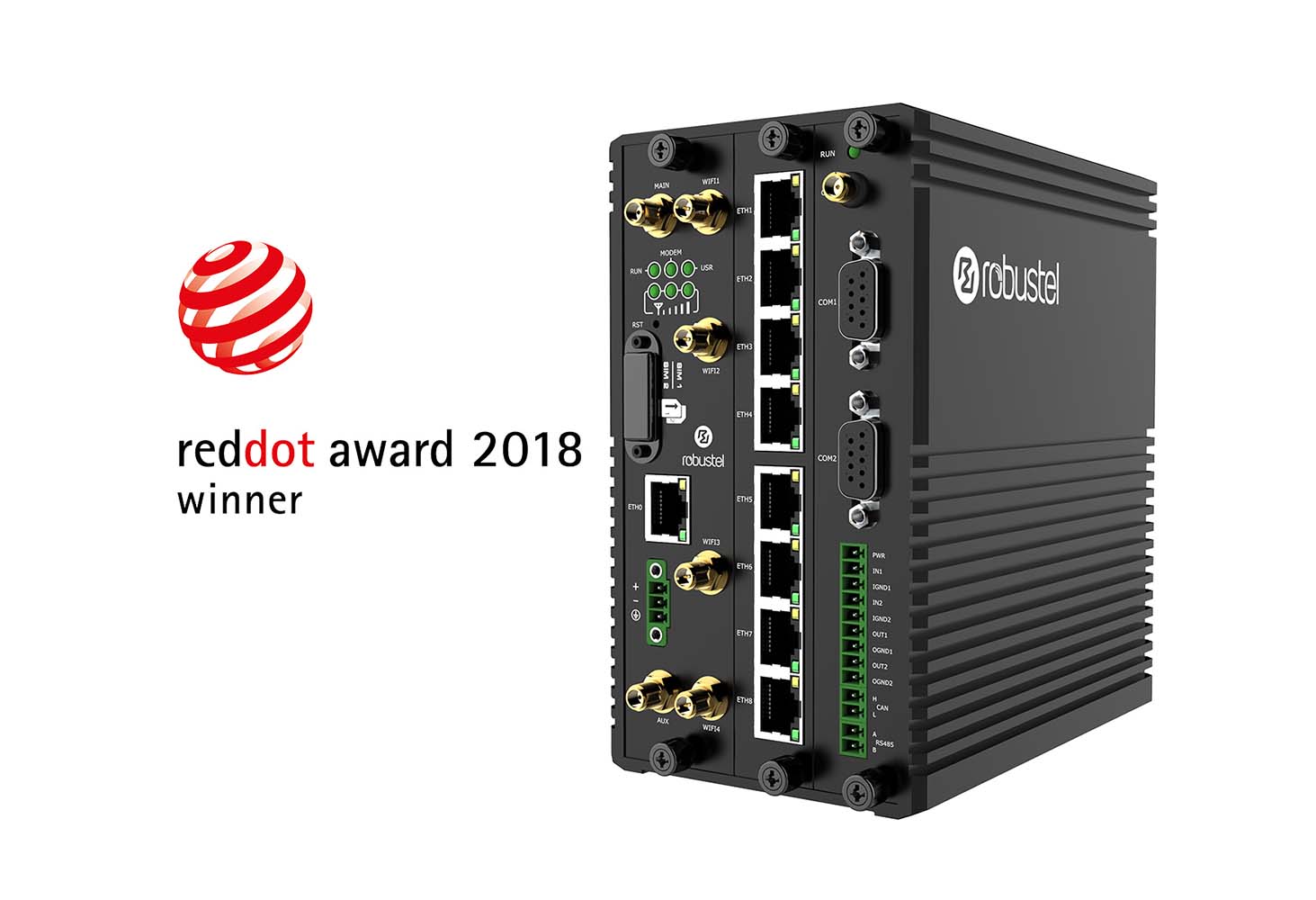

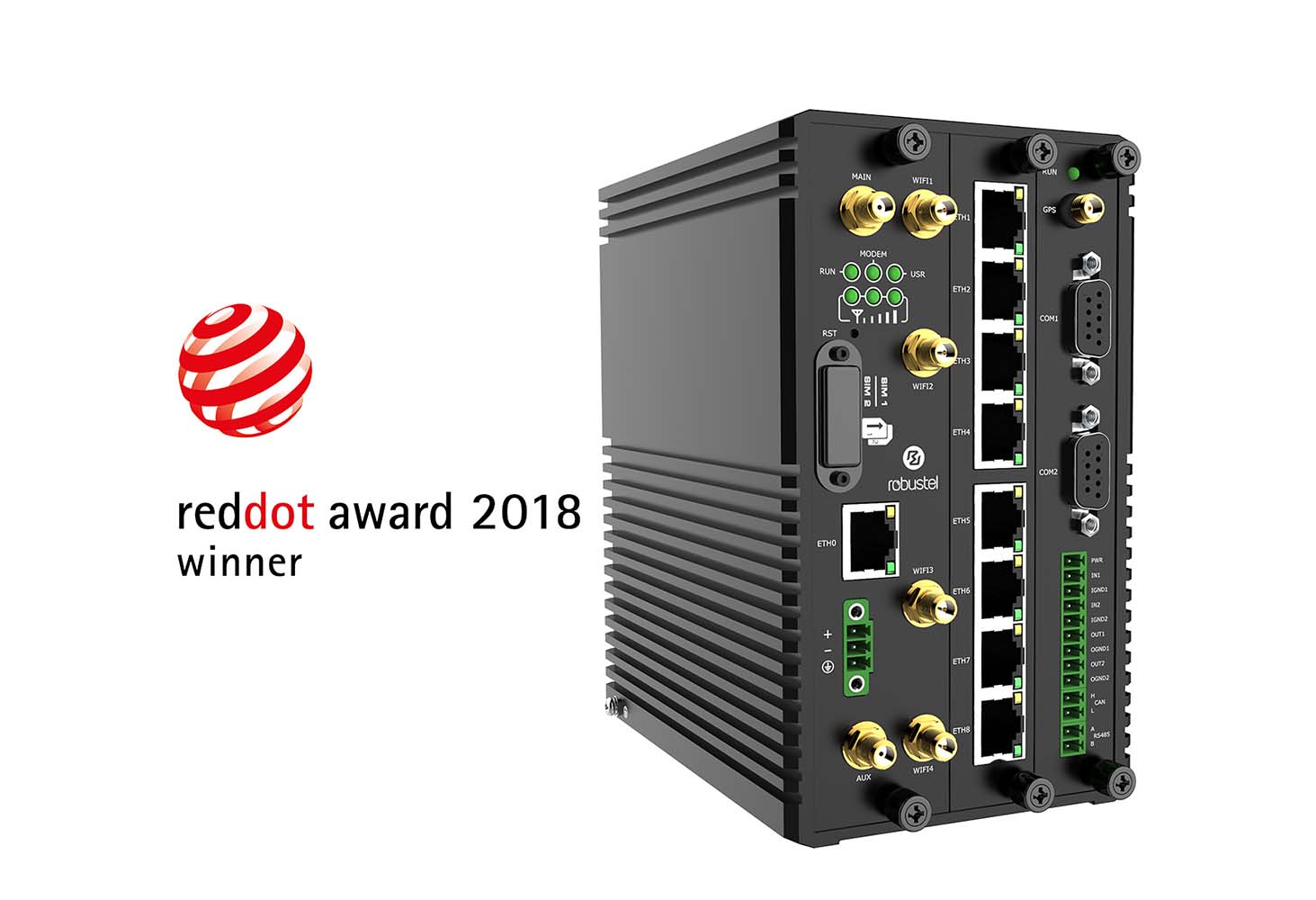

MEG5000 Modular Edge Gateway

Flexible, easy to configure and manage,MEG5000 features three scalable cards that support a variety of interfaces to meet the changing demands of applications in the industrial Internet of Thing (IIoT).

  • Key Features
  • Specification
  • Documentation
  • Model

MEG5000, Robustel Modular Edge Gateway for Internet of Things (IoT), is a most configurable and manageable cellular gateway. The MEG5000 features three scalable cards supporting various interfaces to meet changing demands for industrial IoT applications. With quick-to-deploy and easy-to-customize, the MEG5000 gateway can be tailored to your industrial needs.

Key Features

Flexible interfaces supporting numerous industrial applications
High performance, high reliability and high throughput for data processing
Quick customization meeting rapid market promotion
Integrated Linux programming environment for edge computing
Embedded mSATA SSD providing data logging
RobustOS + SDK + App
IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
The option Backup Mode supporting cold, warm and load balancing
Event/Alarm management with notification (SMS, e-mail, DI/DO, SNMP trap or RobustLink)
Robust industrial design (9 to 60V DC,desktop or wall mounting or DIN rail mounting)



Cellular Interface
Number of antennas2 (MAIN + AUX)
ConnectorSMA, female
SIM slot2 (3 V & 1.8 V)
StandardsGSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/
HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE



Ethernet Interface
Number of ports1 x 10/100/1000 Mbps WAN (ETH0) +
8 x 10/100 Mbps LAN (ETH1~ETH8)
Magnet isolation protection1.5 KV



WiFi Interface
Number of antennasSupport up to 4 antennas (WiFi1 + WiFi2 + WiFi3 + WiFi4)
ConnectorRP-SMA, male
Standards802.11a/b/g/n/ac, supporting AP and Client modes
Frequency bands2.412 – 2.472 GHz (2.4 GHz ISM band)
5.180 – 5.825 GHz (5 GHz ISM band)
SecurityOpen, WPA, WPA2, WEP
EncryptionAES, TKIP, WEP64, WEP128
Data speedUp to 1300 Mbps



Device Interface
GPS/GLONASS1 x GPS/GLONASS, SMA, female(Optional)
Serial port2 x RS-232 + 1 x RS-485 + 1 x CAN
DI/DO2 x Digital Input + 2 x Digital Output



Others
GPS/GLONASS1 x GPS/GLONASS, SMA, female(Optional)
LED indicators
1 x RUN( Main control card), 1 x RUN(Expansion Card 2), 1 x MODEM, 1 x USR, 3 x RSSI
1 x Link indicator + 1 x Speed indicator for each Ethernet port



Software (Basic features of RobustOS)
Network protocolsPPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc.
VPN tunnelIPsec, OpenVPN, GRE
FirewallDMZ, anti-DoS, Filtering (IP/Domain name/
MAC address), Port Mapping, Access Control
ManagementWeb, CLI, SMS
Serial portTransparent, TCP Client/Server, UDP, Modbus RTU Gateway



App Center (Available Apps for RobustOS)
AppsL2TP, PPTP, DMVPN, RobustVPN, VRRP, QoS, SNMP, Language, RobustLink
*Request on demand. For more Apps please visit www.robustel.com.



Power Supply and Consumption
Connector3.5 mm terminal block with lock
Input voltage12 to 60V DC
Input current12V@3A, 24V@1.5A



Approval
RoHS
WEEE
ModelMEG5000-4LMEG5000-NU
Gateway TypeLTE gateway
Antenna Number22
Air Interface
GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/
TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE
Frequency Bands
4G
AU: B1/B2/B3/B4/B5/B7/B8/B28, B40
EU: B1/B3/B7/B8/B20/B28/B31, B38/B40
US: B2/B4/B5/B13/B17/B25, B41
JP: B1/B3/B8/B9/B18/B19/B21/B28, B41
CN: B1/B3, B38/B39/B40/B41
3G
WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+: B1/B2/B5/B6/B8/B9/B19
TD-SCDMA: B34/B39
CDMA (CDMA 1X/EVDO): R0/A BC0/BC1/BC10
2G850/900/1800/1900 MHz
Operating Environment
-40 to +65 °C/-10 to +65 °C(with Wifi)/5 to 95% RH
-40 to +65 °C/-10 to +65 °C(with Wifi)/5 to 95% RH
*For more information about 4G frequency bands in different countries, please contact your Robustel sales representative.
