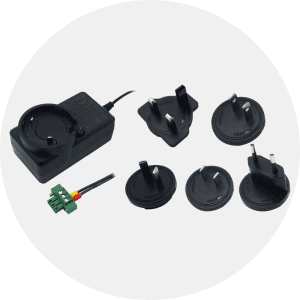

S011043-S011048 Pluggable Terminal Block Power Supply 18W

  • Specification
  • Downloads
  • Model
Parameter Rated Value Absolute Maximum
Input Voltage 100 ~ 240VAC 90 ~ 264VAC
Input Frequency 50/60 Hz 47 ~ 63 Hz
Input Current(@100-240 VAC) – 0.4A
Inrush Current(@100-240 VAC) – 60A
Output Voltage 12 VDC 12VDC±5%
Output Current 0-1.5A –
Overshoot – 10%
Certification IEC 62368-1:2014(Second Edition)
Short-Circuit Protection √
Input Protection Fuse
HIPOT (Dielectric Withstand Test) 3000VAC
MTBF 50000 h
Input Plug&Part Number Global* UK US CN AU EU
S011043 S011044 S011045 S011046 S011047 S011048
*Note: The UK plug, US plug, AU plug, and EU plug are all included in Global version.
Output Connector Pluggable terminal block, 3-pin, 3.5 mm pitch with lock
Related Products R2110, R5020
S011043toS011048 Pluggable Terminal Block Power Supply 12VDC1.5A 18W 3PIN 3.5mm Pitch with Lock FLYER
Global* UK US CN AU EU
S011043 S011044 S011045 S011046 S011047 S011048
