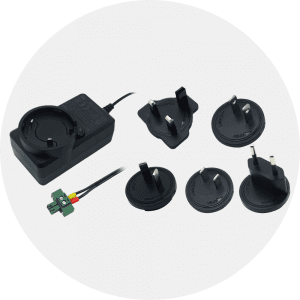

S011025-S011030 Pluggable Terminal Block Power Supply 18W

  • Specification
  • Downloads
  • Model
Parameter Rated Value Absolute Maximum
Input Voltage 100 ~ 240VAC 90 ~ 264VAC
Input Frequency 50/60 Hz 47 ~ 63 Hz
Input Current(@100-240 VAC) 0.4A
Inrush Current(@100-240 VAC) 60A
Output Voltage 12 VDC 12VDC±5%
Output Current 0 ~ 1.5A
Overshoot 10%
Certification IEC 62368-1:2014(Second Edition)
Short-Circuit Protection
Input Protection Fuse
HIPOT (Dielectric Withstand Test) 3000VAC
MTBF 50000 h
Input Plug&Part Number Global UK US CN AU EU
S011025 S011026 S011027 S011028 S011029 S011030
*Note: The UK plug, US plug, AU plug, and EU plug are all included in Global version.
Output Connector Pluggable terminal block, 2-pin, 3.5 mm pitch with lock
