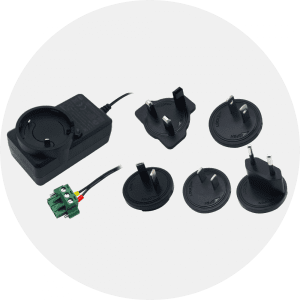

S011007-S011012 Pluggable Terminal BLOCK POWER SUPPLY 12W

  • Specification
  • Downloads
  • Model
Parameter Rated Value Absolute Maximum
Input Voltage 100 ~ 240VAC 90 ~ 264VAC
Input Frequency 50/60 Hz 47 ~ 63 Hz
Input Current(@100-240 VAC) – 0.4A
Inrush Current(@100-240 VAC) – 60A
Output Voltage 12 VDC 12VDC±5%
Output Current 0 ~ 1.0A –
Overshoot – 10%
Certification IEC 62368-1:2014(Second Edition)
Short-Circuit Protection √
Input Protection Fuse
HIPOT (Dielectric Withstand Test) 3000VAC
MTBF 20000 h
Input Plug&Part Number Global* UK US CN AU EU
S011007 S011008 S011009 S011010 S011011 S011012
*Note: The UK plug, US plug, AU plug, and EU plug are all included in Global version.
Output Connector Pluggable terminal block, 3-pin, 5.0 mm pitch with lock
Related Products R3000
S011007toS011012 Pluggable Terminal Block Power Supply 12VDC1.0A 12W 3PIN 5.0mm Pitch with Lock FLYER
Global UK US CN AU EU
S011007 S011008 S011009 S011010 S011011 S011012
