The R5030 is an industrial-grade 5G router that provides cutting-edge wireless connectivity with dual-band Wi-Fi 6 support. It is powered by our proven high-performance CPU platform and RobustOS—an operating system independently developed by Robustel. This OS features enterprise-grade security that has been validated through comprehensive third-party penetration testing. Compliant with 3GPP Release 15/16 standards, the R5030 is designed for the following applications:
Passenger Wi-Fi Solutions: Delivering seamless onboard connectivity to enhance passenger experience through high-density mobile access.
Enterprise Networking Applications: Empowering businesses with robust connectivity solutions.
Key Features
Hardware System | |
CPU | Dual-core ARM Cortex A53, 1.0 GHz |
RAM | 512 MB |
Flash | 8 GB eMMC |
Cellular Interface | |

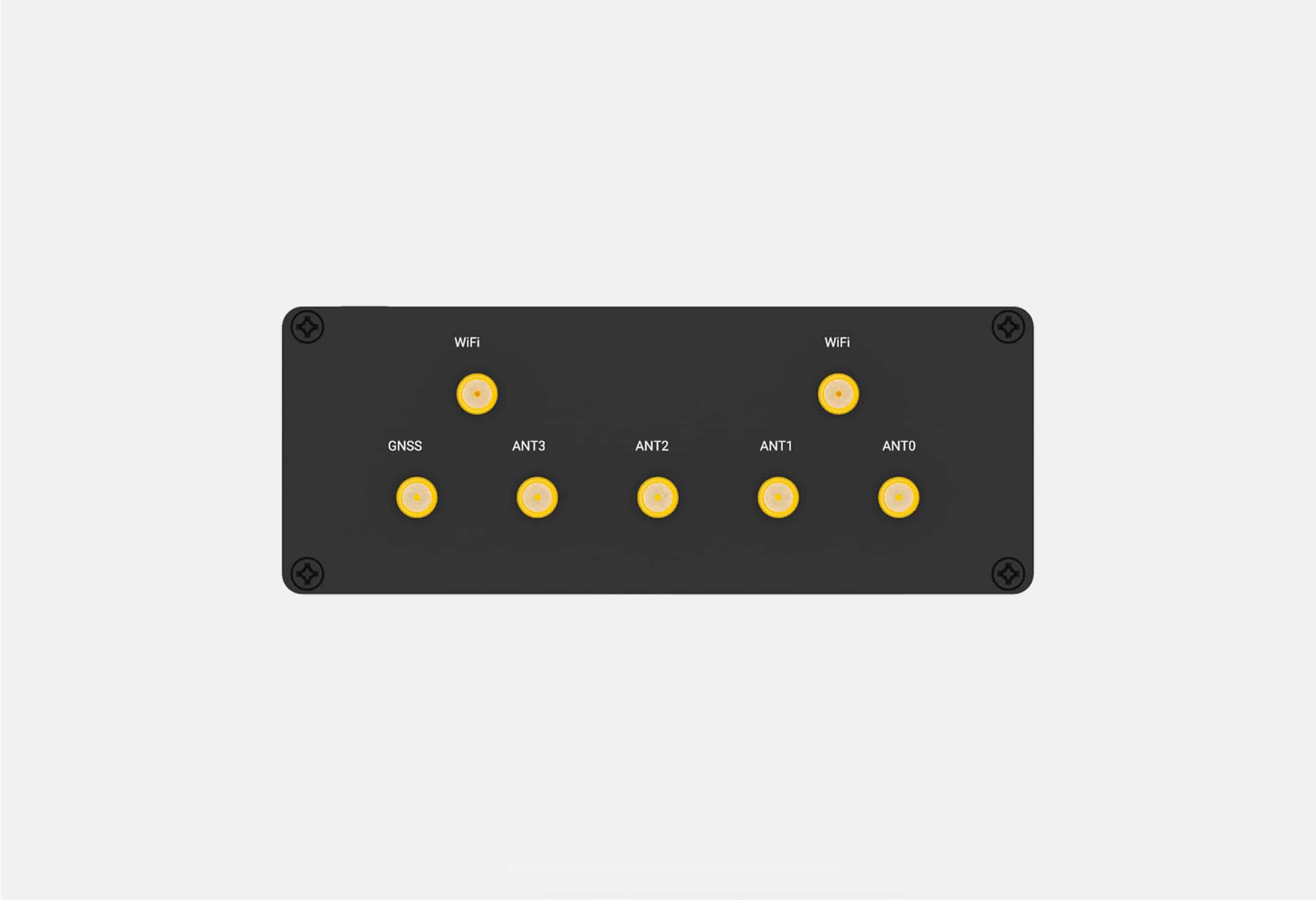

Numbers of antennas | 4 (ANT0 + ANT1 + ANT2 + ANT3) |
Connector | SMA-K |
SIM | 2 x Mini SIM (2FF) |
Ethernet Port | |
Numbers of ports | 5 x 10/100/1000 Mbps, 1 x WAN + 4 x LAN, or 5 x LAN optional |
PoE-PD | ETH0 Port, compliance with IEEE802.3at |
Magnet isolation protection | 1 KV |
WiFi Interface | |
Number of antennas | 2 |
Connector | RP-SMA-K |
Standards | 802.11 a/b/g/n/ac/ax, 2 x 2 MIMO, supports AP and Client modes |
Frequency bands | 2.412 – 2.484 GHz (2.4 GHz ISM band)
5.18 – 5.825 GHz (5 GHz ISM band) |
Security | WPA, WPA2, WPA3 |
Encryption | AES, TKIP |
Digital Input/Output Port | |
Number of ports | 1 x DI + 1 x DO, wet contact |
Connector | 4-pin Micro-Fit socket (share with power supply) |
Absolute maximum VDC | +30 V DC (DI), +30 V DC (DO) |
Absolute maximum ADC | 100 mA (DO) |
Signal definition | DI, DO, –
(Power Minus is also referred to as DI/DO Minus) |
GNSS Interface | |
Number of antennas | 1 |
Connector | SMA-K |
GNSS frequency | GPS: L1, L5
QZSS: L1, L5 Galileo: E1, E5a GLONASS: L1OF BDS: B1 |
Others | |
Reset button | 1 x RST |
USB port | 1 x USB 2.0 (host), 500 mA |
LED indicators | 1 x RUN, 1 x MDM, 1 x RSSI, 1 x USR, 1 x 2.4G Wi-Fi, 1 x 5G Wi-Fi |
Watchdog | External |
Software (Basic features of RobustOS) | |
Network protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, NTP, SMTP, Telnet, VLAN, HTTPs, ARP, SSH2, DDNS, etc. |
VPN tunnels | IPsec, OpenVPN, GRE, WireGuard |
Firewalls | DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
Remote management | Web, CLI, SMS |
Others | Smart Roaming V3 |
SDK | |
Supported programming language | C, C++ |
Flash available for SDK | 6.5 GB |
RAM available for SDK | 256 MB |
App Center (Available Apps for RobustOS) | |
Apps* | PPTP, DMVPN, VRRP, SNMP, Language, RCMS, Captive Portal, WLAN Multi AP, Edge2Cloud |
*Request on demand. For more Apps please visit www.robustel.com. |
Cloud Platform | |
Robustel Cloud Manager Service (RCMS) | RobustLink, RobustVPN, Operation Console, Portal Management |
Power Supply and Consumption | |
Connector | 4-pin Micro-Fit socket |
Input voltage | 12/24 V DC, 9 ~ 36 V DC
Reverse polarity protection, surge protection |
Power consumption | Idle: 6 W@24 V Max: 16.32 W @24 V |
Recommended power supply | 24 V DC/1.5 A power adapter |
PoE-PD (ETH0) | 42.5 ~ 57 V DC |
Physical Characteristics | |
Ingress protection | IP30 |
Housing & Weight | Metal, 580 g |
Dimension | 49 x 105 x 128 mm |

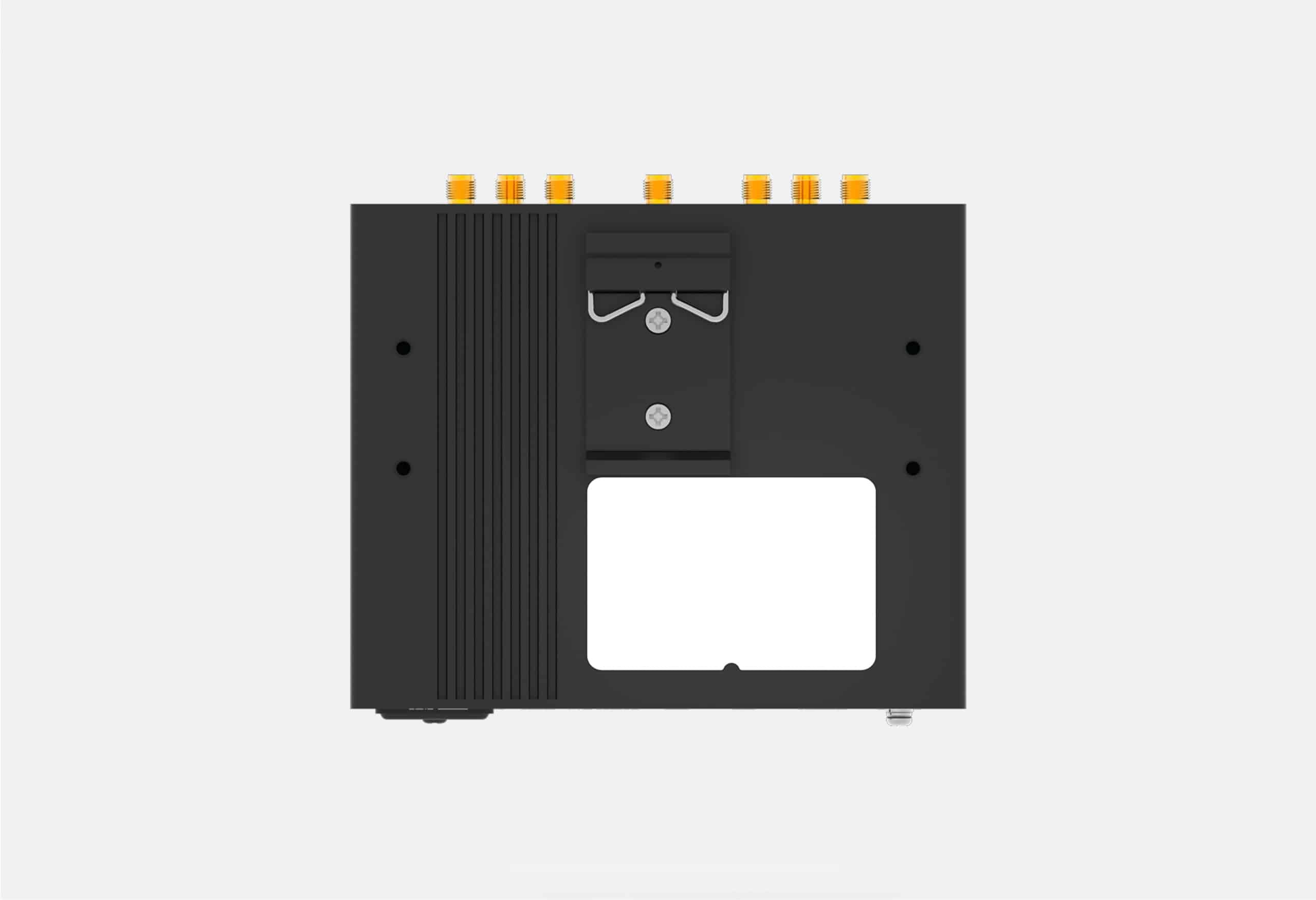

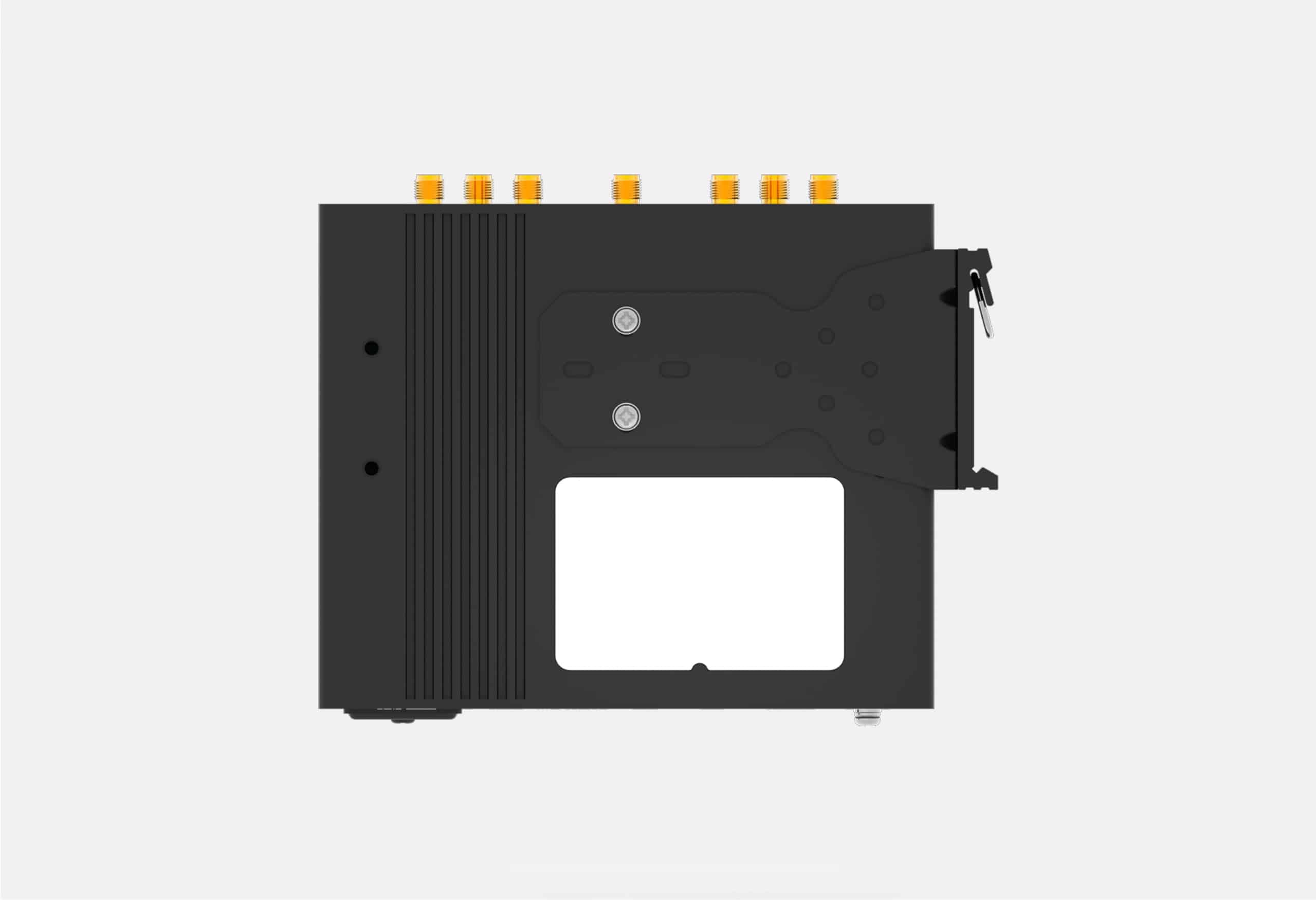

Installations | Desktop, wall mounting and 35 mm DIN rail mounting |
Operating temperature | -20 ~ +70 °C |
Storage temperature | -40 ~ +85 °C |
Relative humidity | 5 ~ 95% RH (non-condensing) |
Regulatory and Type Approvals | |
Evvironmental | RoHS2.0 |
Testing | IEC 60068-2-27 (Mechanical Shock) IEC 60068-2-64 (Random Vibration) |
EMI | EN 55032 Conducted Emission Class B EN 55032 Radiated Emission Class B |
EMS | EN 61000-4-2 (ESD) Contact Level 2, Air Level 3
EN 61000-4-3 (RS) Level 2 EN 61000-4-4 (EFT) Level 2 EN 61000-4-5 (Surge) Level 2 EN 61000-4-6 (CS) Level 2 ISO 7637-2 (Surge) Level 3 |
*All Robustel Firmware and RobustOS Apps are now available to download from the App Centre section of RCMS Cloud.
If you don’t already have access to RCMS Cloud you can Sign Up freely.
*Please contact our Technical Support if you have any trouble finding the resources.
Model | Order Code | Frequency Bands1 | Country
/Region2 |
Certifications (*In progress) |
Package Contains |
R5030-A-5G-A30EU | A015400001 | 5G:
NR SA/NSA: n1/3/5/7/8/20/28/38/40/41/71/75/76/77/78
4G: LTE FDD: B1/3/5/7/8/20/28/29/32/71 LTE TDD: B38/40/41/42/43
3G: WCDMA: B1/5/8 |
EMEA
+ APAC |
CE*
UKCA* RCM* E-Mark* |
1 x R5030 Router (B Code: B015400001)
1 x Wall Mounting Kit 1 x Power Plug Converter |
A015400002 | 1 x R5030 Router (B Code: B015400001)
1 x Wall Mounting Kit 4 x Cellular Antenna 2 x Wi-Fi Antenna 1 x GNSS Antenna 1 x Power Adapter |
||||
R5030-B-5G-A30EU3
|
A015400003 | 1 x R5030 Router (B Code: B015400002)
1 x Wall Mounting Kit 1 x Power Plug Converter |
|||
A015400004 | 1 x R5030 Router
(B Code: B015400002) 1 x Wall Mounting Kit 4 x Cellular Antenna 2 x Wi-Fi Antenna 1 x GNSS Antenna 1 x Power Adapter |
||||
R5030-A-5G-A43EA |
A015400005 | 5G:
NSA: n1/3/7/28/38/40/41/77/78 SA: n1/3/5/7/8/20/28/38/40/41/66/77/78
4G: LTE FDD: B1/2/3/4/5/7/8/20/28/66 LTE TDD: B38/40/41
3G: WCDMA: B1/2/5/8 |
EMEA
+ APAC |
CE*
UKCA* RCM* |
1 x R5030 Router (B Code: B015400003)
1 x Wall Mounting Kit 1 x Power Plug Converter |
A015400006 | 1 x R5030 Router (B Code: B015400003)
1 x Wall Mounting Kit 4 x Cellular Antenna 2 x Wi-Fi Antenna 1 x GNSS Antenna 1 x Power Adapter |
||||
R5030-A-5G-A25GL4 | A015400007 | 5G:
NR SA/NSA: n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/ 30/38/40/41/48/66/70/71/75/76/77/78/79
4G: LTE FDD: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/ 28/29/30/32/66/71 LTE TDD: B34/38/39/40/41/42/43/48 LAA: B46 (only supports 2 x 2 MIMO)
3G: WCDMA: B1/2/4/5/8/19 |
Global | / | 1 x R5030 Router (B Code: B015400004)
1 x Wall Mounting Kit 1 x Power Plug Converter |
A015400008 | 1 x R5030 Router
(B Code: B015400004) 1 x Wall Mounting Kit 4 x Cellular Antenna 2 x Wi-Fi Antenna 1 x GNSS Antenna 1 x Power Adapter |
Note:
1. For more information about frequency bands in different countries, please contact your Robustel sales representative.
2. Region: APAC(excluding China and Japan); EMEA (excluding Russia and Belarus).
3. The R5030-B-5G-A30EU is designed for vehicle applications and operates on different Wi-Fi bands compared to R5030-A-5G-A30EU.
4. The R5030-A-5G-A25GL certification is currently on hold. FCC and Anatel certifications will be triggered as needed.
