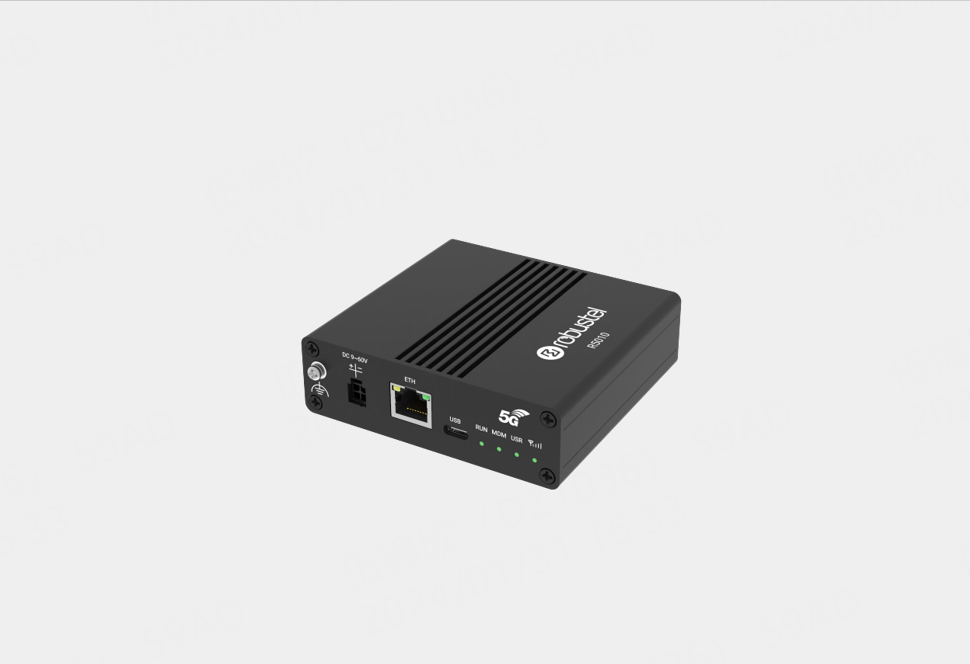

R5010 High Speed 5G Router

The R5010 is Robustel’s latest 5G-capable router supporting global 5G, 4G, and 3G bands. It utilizes our proven high-performance RobustOS – an in-house developed operating system that has successfully undergone extensive third-party penetration testing.

  • Key Features
  • Specification
  • Downloads
  • Model

The R5010 is Robustel’s latest 5G-capable router supporting global 5G, 4G, and 3G bands. It utilizes our proven high-performance RobustOS – an in-house developed operating system that has successfully undergone extensive third-party penetration testing.



The R5010 is compliant with 3GPP Release 16 and is designed for the following applications:

Primary Broadband: Cellular network operators now offer unlimited 5G plans at competitive prices. For many businesses, transitioning from wired connections to wireless internet can be both technically and commercially beneficial.

SD-WAN: While many appliances come with built-in cellular options, the R5010 provides a cost-effective solution for adding a 5G backup route. Its ability to be positioned externally enhances the likelihood of receiving a strong 5G signal.



KEY FEATURES

  • Low-cost industrial 5G router
  • Global 5G/4G/3G cellular connections
  • Cutting-edge 5G 3GPP Release 16 cellular interface
  • 1 x 1000 Mbps Ethernet port
  • PoE-PD compatibility with IEEE 802.at standard
  • USB modem mode
  • Fully programmable operating system with comprehensive SDK support
  • Multiple VPN options available including DMVPN, IPsec, L2TP, and more
  • Free cloud management platform (RCMS)
  • Robust metal enclosure with a compact design for DIN-rail and wall mounting



This video introduces its key hardware and software features so the product can be understood in just a few minutes:

Robustel R5010 Quick Pitch

Cellular Interface

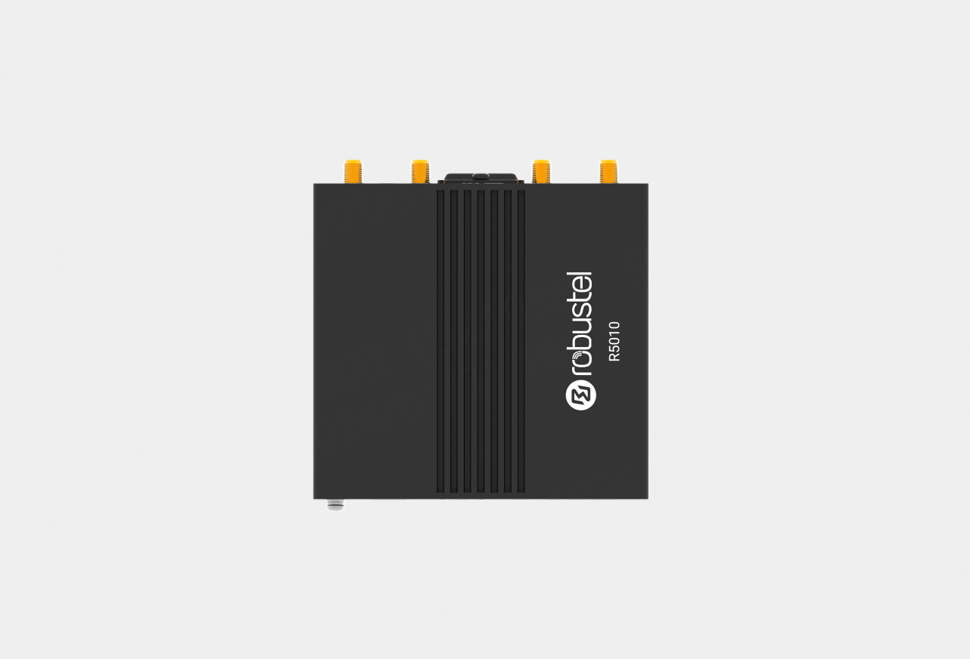

Number of antennas 4 (ANT0 + ANT1 + ANT2 + ANT3)
Connector SMA-K
SIM 2 x Mini SIM (2FF)

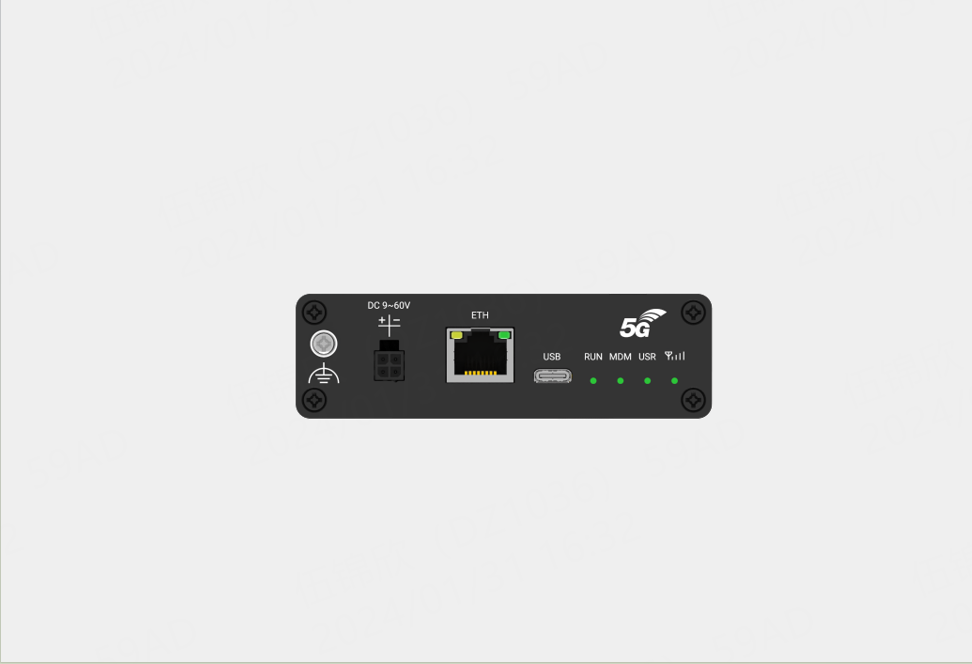

Ethernet Port
Number of ports 1 x 10/100/1000 Mbps, LAN, supporting 802.3at PD feature on ETH
Magnet isolation protection 1 KV



Others
Reset button 1 x RST
USB port 1 x USB 3.1 (Type C), for power supply, network supply and debug
LED indicators 1 x RUN, 1 x MDM, 1 x USR, 1 x RSSI
Watchdog External



Power Supply and Consumption
Connector 4-pin Micro-Fit socket
Input voltage 12/24/48 V DC, 9 ~ 60 V DC
5 V/3 A by USB Type C Port
Reverse polarity protection, surge protection
PoE-PD voltage Possibility to power up throught ETH
44 ~ 57 V DC
Power consumption Idle: 1.5 W@12 V
Max: 15 W@12 V
Recommended power supply 12 V DC/1.5 A power adapter



Physical Characteristics
Ingress protection IP30
Housing & Weight Aluminum, 276 g
Dimensions 30 x 94 x 100 mm
Installations Desktop, wall mounting and 35 mm DIN rail mounting
Operating temperature -40 ~ +70 °C
Storage temperature -40 ~ +85 °C
Relative humidity 5 ~ 95% RH (non-condensing)



Software (Basic features of RobustOS)
Network protocols PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, NTP, SMTP, Telnet, VLAN, HTTPs, ARP, SSH2, DDNS, etc.
VPN tunnels IPsec, OpenVPN, GRE, WireGuard
Firewalls DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Remote management Web, CLI, SMS
Others Smart Roaming V3



SDK
Supported programming languages  C, C++
Flash available for SDK 10 MB
RAM available for SDK 45 MB



App Center (Available Apps for RobustOS)
Apps* L2TP, PPTP, DMVPN*, VRRP*, QoS, SNMP, Language, RCMS, etc.
*Request on demand. For more Apps please visit www.robustel.com.



Cloud Platform
Robustel Cloud Manager Service (RCMS) RobustLink, RobustVPN, Operation Console



Regulatory and Type Approvals
Evvironmental RoHS2.0
Testing IEC 60068-2-6 (Sinusoidal Vibration)
IEC 60068-2-27 (Mechanical Shock)
IEC 60068-2-64 (Random Vibration)
EMI EN 55032 Conducted Emission Class B
EN 55032 Radiated Emission Class B
EMS EN 61000-3-2 (Harmonic Current)

EN 61000-3-3 (Voltage Flicker)

EN 61000-4-2 (ESD) Contact Level 3, Air Level 3

EN 61000-4-3 (RS) Level 2

EN 61000-4-4 (EFT) Power Ports Level 2, Signal Ports Level 2

EN 61000-4-5 (Surge) Line to line Level 2, Line to ground Level 2

EN 61000-4-6 (CS) Level 2

EN 61000-4-11 (Dips) Class 2

R5010 Datasheet



R5010 Hardware Manual



RobustOS Software Manual



*All Robustel Firmware and RobustOS Apps are now available to download from the App Centre section of RCMS Cloud.

If you don’t already have access to RCMS Cloud you can Sign Up  freely.

*Please contact our Technical Support if you have any trouble finding the resources.

Model Order Code Frequency Bands* Country/Region Certification Package Contains
R5010-A-5G-A28EU A011300001 5G: NR SA/NSA:
n1/3/5/7/8/20/28/38/40/41/75/76/77/78

4G:
LTE FDD: B1/3/5/7/8/20/28/32
LTE TDD: B38/40/41/42/43

3G:
WCDMA: B1/5/8

EMEA+ANZ CE, UKCA, CB, RCM 1 x R5010 Router (B Code: B113001)
1 x DIN Rail Mounting Kit
4 x Cellular Antenna
1 x Power Adapter
A011300002 1 x R5010 Router (B Code: B113001)
1 x DIN Rail Mounting Kit
1 x Power Plug Converter

*For more information about frequency bands in different countries, please contact your Robustel sales representative.
