MG460 Gateway

The MG460 Gateway is a maritime cyber security gateway that complies with IEC61162-460 and IEC60945 standards. It acts as a secure industrial gateway between on-board vessel equipment and external services, ensuring protection and seamless connectivity.
It helps shipowners, shipyards, and solution providers to build a cyber resilient solution to connect the CBSs(Computer based System) according to the latest IACS’s UR(Unified Requirements) E26 and E27 which became mandatory from 1st July 2024.

  • Key Features
  • Specification
  • Downloads
  • Model

Robustel’s MG460 Gateway represents a next-generation industrial maritime gateway, designed to comply with IEC 61162-460 (Maritime Safety and Security) and IEC 60945 standards. The MG460 Gateway serves as a seamless interface between onboard vessel equipment and external services, including cloud platforms and servers.



The MG460 Gateway enhances the security of the navigational equipment network by implementing a multi-layered inspection firewall and access control at both the network and transport layers, utilizing address, port, and protocol-based rules. Powered by a robust 1.6 GHz quad-core CPU and equipped with 64 GB eMMC Flash storage running a Debian Linux OS, the MG460 Gateway is capable of executing complex applications and facilitating efficient software deployment. Featuring 5 Gigabit Ethernet ports (each equipped with its own firewall), 2 software-configurable serial ports, 2 digital inputs, 2 relay outputs, and 3 protected USB ports, the MG460 Gateway provides comprehensive connectivity options for various field devices.



KEY FEATURES

  • Comply with IEC 61162-1, IEC 61162-2, IEC 61162-460 Edition 3, and IEC 60945 standards

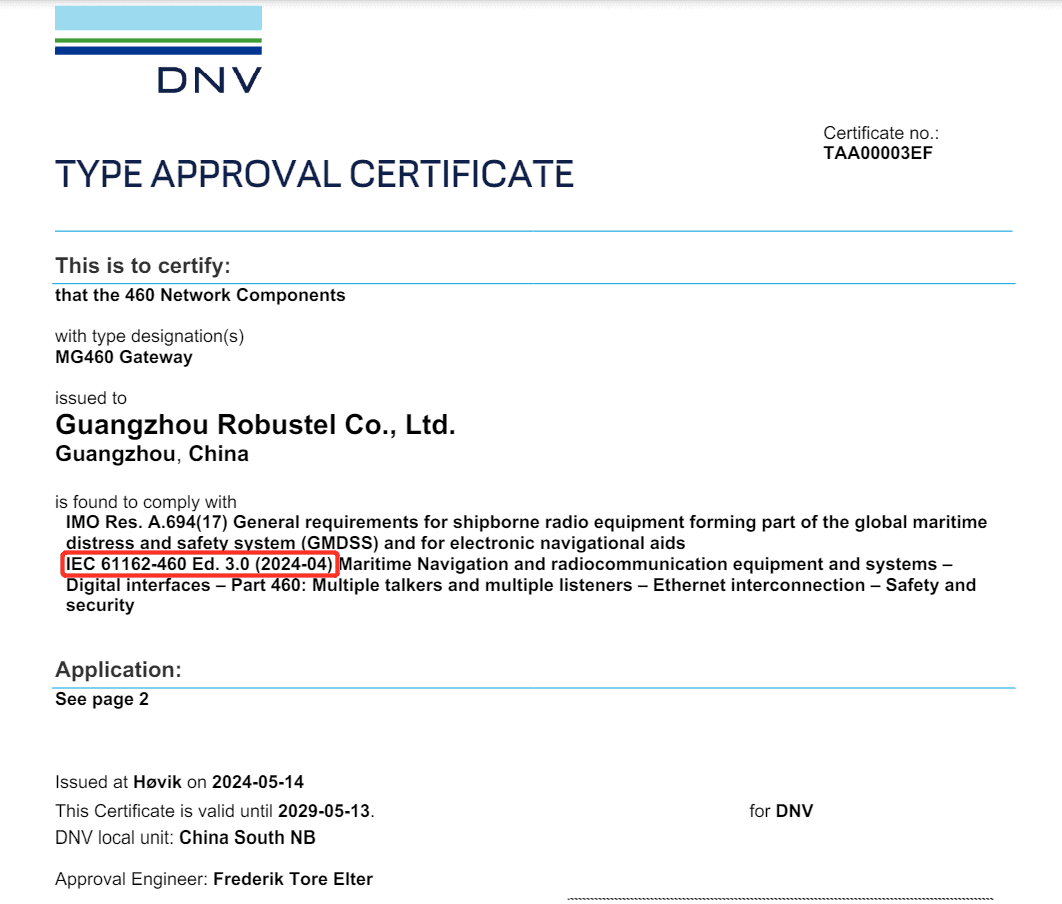

  • Achieve DNV Certification as 460-Gateway and 460-Wireless Gateway
  • Utilize a high-performance compute engine with a 1.6 GHz CPU and 64 GB eMMC Flash for executing complex applications
  • Establish a DMZ with file storage and application services for secure interconnection
  • Enable remote access tunnels with VPN for secure connectivity
  • Leverage a Linux Debian system for user software development and deployment
  • Provide 5 x 1000 Mbps Ethernet ports, each with an individual firewall for enhanced security
  • Connect industrial and legacy devices via 2 x RS-232/RS-485/RS-422 (software configurable) ports
  • Facilitate simple monitoring and control with 2 x Digital Inputs and 2 x Relay Outputs
  • Expand storage capabilities with a microSD slot for recording system logs and navigation data
  • Support dual SIM card slots for redundant communications
  • Ensure uninterrupted network connectivity with an industrial-grade design
  • Manage large device estates efficiently via RCMS (Robustel’s router/gateway management platform) and RobustVPN service



Hardware System
CPU Quad core Cortex-A53, 1.6 GHz
NPU 2.3 TOPS
RAM 4 GB DDR4
Flash 64 GB eMMC



Cellular Interface
Number of antennas 2 (4G Version)
4 (5G Version)
Connector SMA-K
SIM 2 x Mini SIM (2FF)



Ethernet Port
Number of ports 5 x RJ45, 10/100/1000 Mbps, compliance with 1000 BASE-T, LAN or WAN
Magnet isolation protection 1 KV



Serial Port
Number of ports 2 x RS-232/RS-485/RS-422 (software configurable)
Connector 2 x 5-pin 3.5 mm terminal block
ESD protection 8 KV Air, 4 KV Contact
Baud rate 300 bps ~ 115200 bps
Signal definition RS-232: TXD, RXD, GND, CTS, RTS

RS-485: Data+ (A), Data- (B), GND

RS-422: RX+, RX-, TX+, TX-, GND



Console Port
Number of ports 1 x RS-232
Connector RJ45
Baud rate 115200 bps
Signal definition TXD, RXD, GND



Digital Input Port
Number of ports 2 x DI, wet contact
Connector 4-pin 3.5 mm terminal block
Isolation Bi-directional optocoupler (DI)
Absolute maximum VDC +30 V DC
Absolute maximum ADC 100 mA
Signal definition DI1+, DI1-, DI2+, DI2-



Relay Output Port
Number of ports 2 x Relay Output
Connector 6-pin 3.5 mm terminal block
Absolute maximum VDC +48 V DC
Absolute maximum ADC 100 mA
Signal definition NC1, NO1, COM1, NC2, NO2, COM2



USB Port
Number of ports 2 x USB 3.0 (host), Type A, 5 V, 900 mA

1 x USB 2.0 (OTG), Type C



Wi-Fi Interface
Wi-Fi Wi-Fi 2.4 GHz/5 GHz, 2 x 2 MU-MIMO

IEEE 802.11 a/b/g/n/ac/ax



GNSS Interface
Version 4G
Numbers of antennas 1
Connector SMA-K
Technology GPS



Others
Reset button 1 x RST
SD 1 x microSD
HDMI 1 x HDMI
LED indicators 1 x RUN, 1 x Signal, 1 x MDM, 1 x VPN, 2 x USR
Watchdog External



Power Supply and Consumption
Connector 2-pin 3.5 mm terminal block with lock
Input voltage 24 V DC, reverse polarity protection, surge protection
Power consumption Idle: 6.24 W@24 V
Max: 14.64 W@24 V



Physical Characteristics
Ingress protection IP30
Housing & Weight Metal, 649 g
Dimensions 58 x 111 x 128 mm
Installations Desktop, wall mounting and 35 mm DIN rail mounting
Operating temperature -30 ~ +70 °C
Storage temperature -40 ~ +85 °C
Relative humidity 5 ~ 95% RH (non-condensing)



Software (Basic features of RobustOS Pro)
Network protocols PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, NTP, SMTP, Telnet, VLAN, HTTPs, ARP, SSH2, DDNS etc.
VPN tunnels IPsec, OpenVPN, GRE, DMVPN
Firewalls DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Remote management Web, CLI, SMS
Serial port protocols Transparent, TCP Client/Server, UDP, Modbus RTU Gateway



SDK
Operating system RobustOS Pro (Based on Debian 11 Bullseye)
Supported programming languages C, C++, Python, Java, Node.js, etc. (for users to develop own applications)
Debian Repository available
Flash available for SDK 62 GB
RAM available for SDK 2.5 GB



App Center (Available Apps for RobustOS Pro)
Apps* Language, RCMS, WireGuard, etc.
*Request on demand. For more Apps please visit www.robustel.com.



Cloud Platform
Robustel Cloud Manager Service (RCMS) RobustLink, RobustVPN, Operation Console



Regulatory and Type Approvals
Evvironmental RoHS2.0
EMI EN 55032 Conducted Emission Class B
EN 55032 Radiated Emission Class A
EMS EN 61000-3-2 (Harmonic Current)

EN 61000-3-3 (Voltage Flicker)

EN 61000-4-2 (ESD) Contact Level 3, Air Level 3

EN 61000-4-3 (RS) Level 3

EN 61000-4-4 (EFT) Level 3

EN 61000-4-5 (Surge) Level 3

EN 61000-4-6 (CS) Level 2

EN 61000-4-11 (Dips)



Model Order Code Wi-Fi GNSS Frequency Bands1 Country/

Region

Certification Package Contains
MG460-A5ZAZ-NU A014700002 Global CE

UKCA

RCM

CB

FCC

IC

1 x MG460 Gateway

(B Code: B014700001)
1 x DIN Rail Mounting Kit

MG460-A5CAZ-NU A014700003 Global 1 x MG460 Gateway

(B Code: B014700002)
1 x DIN Rail Mounting Kit

MG460-A5AAZ-4L-A06GL A014700004 4G:
LTE FDD: B1/2/3/4/5/7/8/12/13/
18/19/20/25/26/28
LTE TDD: B34/38/39/40/41

3G:WCDMA: B1/2/4/5/6/8/19

2G:
GSM: B2/3/5/8

Global CE

UKCA

RCM

CB

FCC

IC

1 x MG460 Gateway

(B Code: B014700003)
1 x DIN Rail Mounting Kit

MG460-A5BAZ-4L-A06GL A014700005 Global 1 x MG460 Gateway

(B Code: B014700004)
1 x DIN Rail Mounting Kit

MG460-A5AAZ-5G-A25GL2 A014700006 5G NR:
NSA: n1/2/3/5/7/8/12/13/14/18/20/
25/26/28/29/30/38/40/41/48/
66/70/71/75/76/77/78/79
SA: n1/2/3/5/7/8/12/13/14/18/20/
25/26/28/29/30/38/40/41/48/
66/70/71/75/76/77/78/79

4G:LTE FDD: B1/2/3/4/5/7/8/12/13/14/
17/18/19/20/25/26/28/29/30/32/66/71
LTE TDD: B34/38/39/40/41/42/43/48
LAA: B46

3G:
WCDMA: B1/2/4/5/8/19

Global CE

UKCA

RCM

FCC

IC

1 x MG460 Gateway

(B Code: B014700005)
1 x DIN Rail Mounting Kit

MG460-A5BAZ-5G-A25GL2 A014700007 Global 1 x MG460 Gateway

(B Code: B014700006)
1 x DIN Rail Mounting Kit



Note:

1.  For more information about frequency bands in different countries, please contact your Robustel sales representative.

2. The models MG460-A5AAZ-5G-A25GL and MG460-A5BAZ-5G-A25GL currently do not support Telstra certification and are not recommended for use on the Telstra network.
