MG360 Gateway

The MG360 is Robustel’s IEC 60945-compliant industrial gateway, engineered for maritime environments. With ruggedized construction and advanced connectivity features, it’s ideal for shipboard applications requiring reliable, secure data exchange. Designed to integrate seamlessly into modern marine electronics systems, the MG360 supports critical maritime communications while standing up to salt, vibration, and extreme conditions.

  • Key Features
  • Specification
  • Downloads
  • Model

The Robustel’s MG360 Gateway is a next-generation IEC 60945-compliant industrial maritime gateway designed to enable secure data exchange between onboard vessel systems and cloud-based services. This hardened network appliance employs multi-layered firewall protection with IP/port/protocol-based access control, ensuring robust isolation between navigational equipment networks and external infrastructures.



Equipped with a quad-core 1.6 GHz processor, 16GB eMMC storage, and Debian Linux OS, the MG360 Gateway delivers edge computing capabilities for executing complex applications and managing software deployments. Its connectivity suite includes 2 Gigabit Ethernet ports (PoE-supported), 2 software-configurable RS-232/485 serial interfaces, and 4 programmable digital I/O channels, providing versatile integration with maritime field devices.



Key Features

  • Compliance with IEC 60945 standards
  • Industrial-grade 4G/3G/2G cellular connectivity with global band support
  • High-performance computing engine featuring a 1.6 GHz CPU and 16 GB eMMC Flash for running complex applications
  • DMZ with file storage and application services for secure interconnections
  • Remote access tunnel with VPN for secure connectivity
  • Linux Debian system for user software development and deployment
  • 2 x 1000 Mbps Ethernet ports, each equipped with its own firewall for enhanced security
  • 2 x RS-232/RS-485 (software configurable) ports for connecting to industrial and legacy devices
  • 2 x Digital Inputs + 2 x Digital Outputs for straightforward monitoring and control
  • Expanded microSD slot for recording system logs and navigation data
  • Dual SIM card slots for redundant communications
  • Industrial-grade design to ensure uninterrupted network connectivity
  • Support for RCMS (Robustel’s Router/Gateway Management System) for efficient management of large device estates via RobustVPN service
Hardware System
CPU Quad core Cortex-A53, 1.6 GHz
NPU 2.3 TOPS
RAM 4 GB DDR4
Flash 64 GB eMMC



Cellular Interface
Numbers of antennas 2
Connector SMA-K
SIM 2 x Mini SIM (2FF)



Ethernet Port
Numbers of ports 2 x RJ45, 10/100/1000 Mbps, compliance with 1000 BASE-T, LAN or WAN
Magnet isolation protection 1 KV



Serial Port
Number of ports 2 x RS-232/RS-485 (software configurable)
Connector 6-pin 3.5 mm terminal block with lock
ESD protection 8 KV Air, 4 KV Contact
Baud rate 300 bps to 115200 bps
Signal definition RS-232: TXD, RXD, GND

RS-485: Data+ (A), Data- (B), GND



Digital Input/Output Port
Number of ports 2 x DI + 2 x DO, wet contact
Connector 8-pin 3.5 mm terminal block with lock (DI/DO)
Isolation Bi-directional optocoupler (DI)
Single directional optocoupler (DO)
Absolute maximum VDC +30 V DC
Absolute maximum ADC 100 mA
Signal definition DI1+, DI1-, DI2+, DI2-, DO1+, DO1-, DO2+, DO2-



Wi-Fi Interface
Number of antennas 2
Connector RP-SMA-K
Standards 802.11a/b/g/n/ac, 2 x 2 MIMO
Supporting AP and Client modes
Frequency bands 2.412 – 2.484 GHz (2.4 GHz ISM band)
5.15 – 5.85 GHz (5 GHz ISM band)
Security WEP 64-bit and 128-bit encryption with H/W TKIP processing
WPA/WPA2 (Wi-Fi Protected Access)
AES-CCMP hardware implementation



Bluetooth Interface
Number of antennas 1 (Multiplexing Wi-Fi antenna)
Connector RP-SMA-K
Standards Bluetooth 2.1 and 3.0 + Enhanced Data Rate (EDR) + Bluetooth 5.2



GNSS Interface
Number of antennas 1
Connector SMA-K



Others
Reset button 1 x RST
USB port 1 x USB 2.0 (host), Type A, 5 V, 900 mA
LED indicators 1 x RUN, 1 x MDM, 1 x USR, 1 x Signal
Watchdog External



Software (Basic features of RobustOS Pro)
Network protocols PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, NTP, SMTP, Telnet, VLAN, HTTPs, ARP, SSH2, DDNS, etc.
VPN tunnels IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN, WireGuard
Firewalls DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Remote management Web, CLI, SMS
Serial port protocols Transparent, TCP Client/Server, UDP, Modbus RTU Gateway
Others Smart Roaming V2



SDK
Operating system RobustOS Pro (Based on Debian 11 Bullseye)
Supported programming language C, C++, Python, Java, Node.js, etc. (for users to develop own applications)
Debian Repository available
Flash available for SDK 14 GB
RAM available for SDK 1.5 GB



App Center (Available Apps for RobustOS Pro)
Apps* Language, RCMS, Edge2Cloud, etc.
*Request on demand. For more Apps please visit www.robustel.com.



Cloud Platform
Robustel Cloud Manager Service (RCMS) RobustLink, RobustVPN, Operation Console



Power Supply and Consumption
Connector 2-pin 3.5 mm terminal block with lock
Input voltage 24 V DC, reverse polarity protection, surge protection
Power consumption Idle: 5.0 W@24 V
Max: 20.0 W@24 V



Physical Characteristics
Ingress protection IP30
Housing & Weight Metal, 567 g
Dimensions 49 x 105 x 128 mm

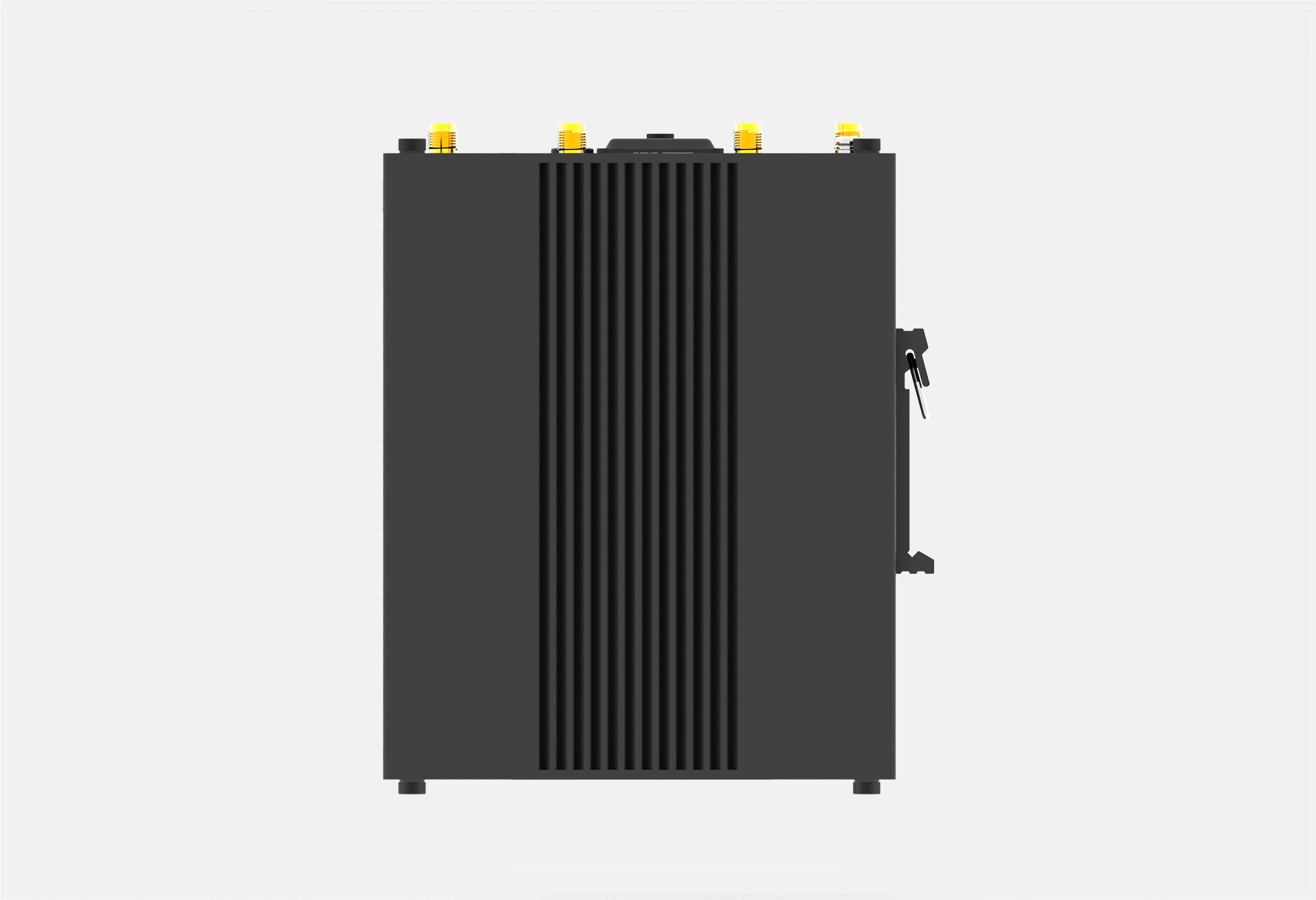

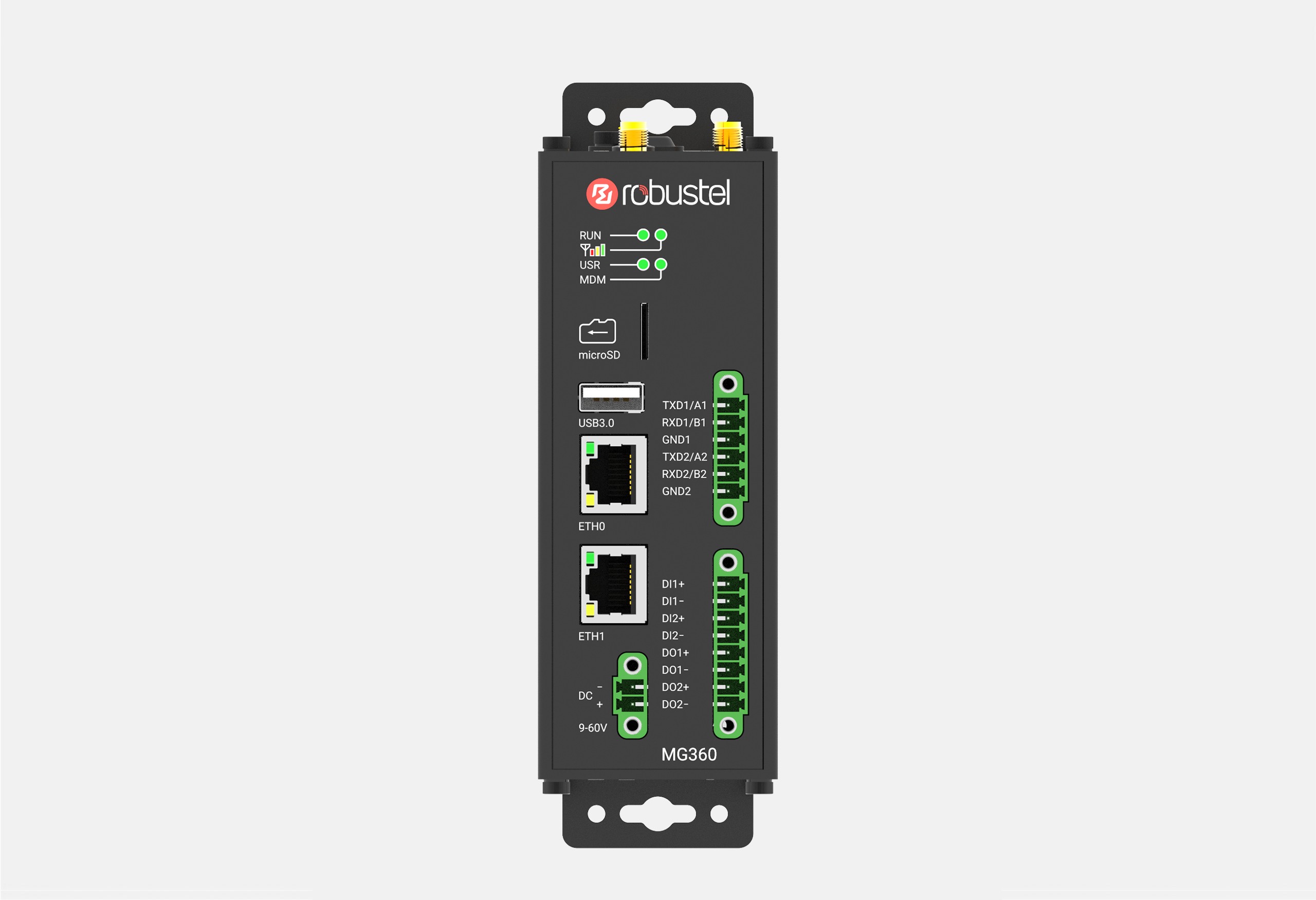

Installations Desktop, wall mounting and 35 mm DIN rail mounting
Operating temperature -40 ~ +70 °C
Storage temperature -40 ~ +85 °C
Relative humidity 5 ~ 95% RH (non-condensing)



Regulatory and Type Approvals
Evvironmental RoHS2.0
EMI EN 55032 Conducted Emission Class B
EN 55032 Radiated Emission Class B
EMS EN 61000-4-2 (ESD) Level 4

EN 61000-4-3 (RS) Level 3

EN 61000-4-4 (EFT) Level 4

EN 61000-4-5 (Surge) Level 3

EN 61000-4-6 (CS) Level 2

EN 61000-4-8 (PFM) Level 4

EN 61000-4-11 (Dips)





MG360 Gateway Datasheet



*All Robustel Firmware and RobustOS Apps are now available to download from the App Centre section of RCMS Cloud.

If you don’t already have access to RCMS Cloud you can Sign Up  freely.

*Please contact our Technical Support if you have any trouble finding the resources.

Model Order Code Wi-Fi GNSS Frequency Bands* Country/Region Certification Package Contains
MG360-A2CAZ-4L-A06GL A015500001 4G: LTE FDD: B1/2/3/4/5/7/8/12/

13/18/19/20/25/26/28

LTE TDD: B34/38/39/40/41

3G: WCDMA: B1/2/4/5/6/8/19

2G: GSM: B2/3/5/8

Global CE, UKCA, RCM, FCC, IC 1 x MG360 Gateway

(B Code: B015500001)

1 x DIN Rail Mounting Kit

*For more information about frequency bands in different countries, please contact your Robustel sales representative.
