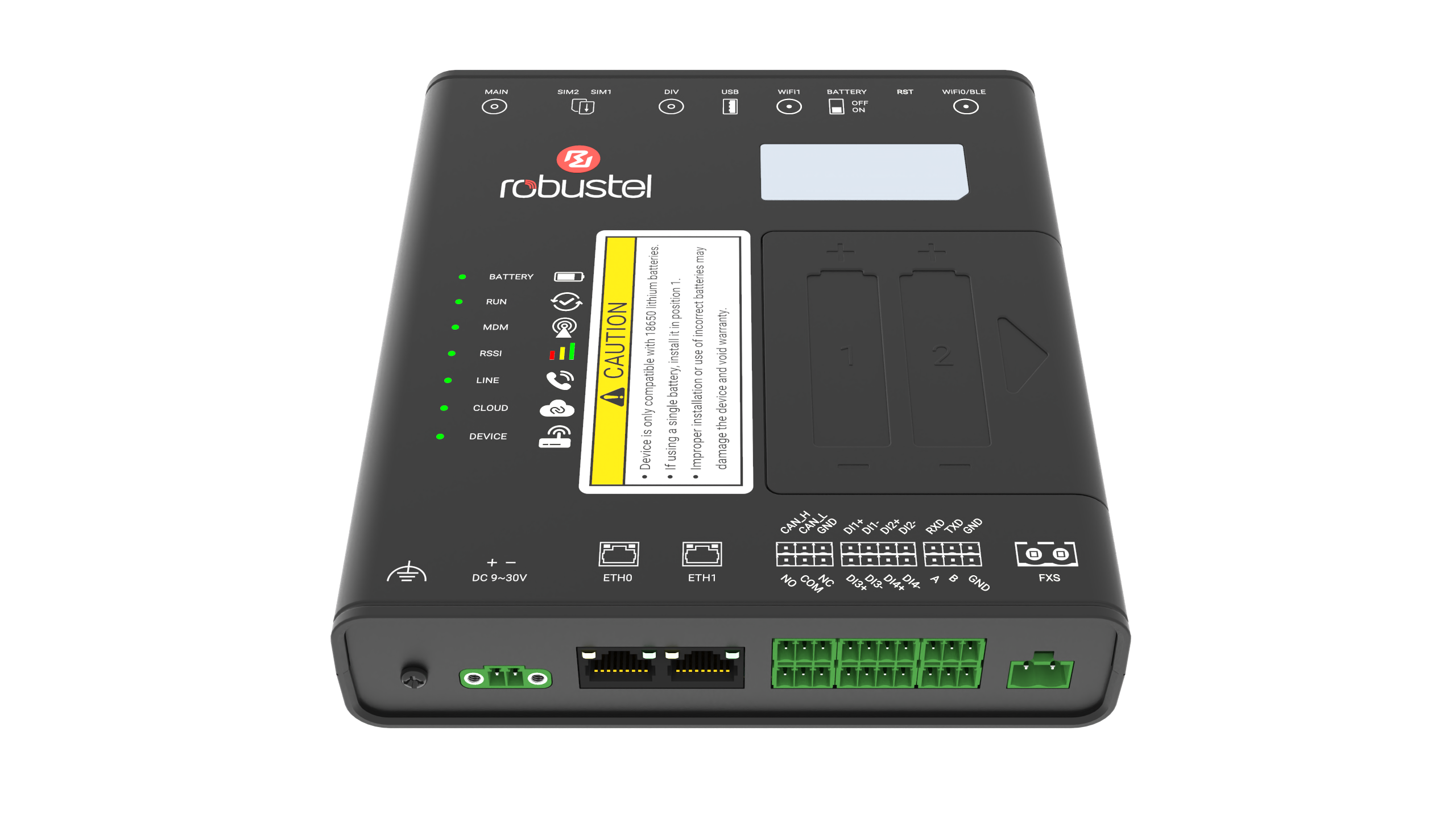

EV8100 Elevator Voice Gateway

Robustel’s EV8100 is an advanced elevator voice gateway designed to facilitate voice transmission over VoIP and VoLTE, ensuring seamless communication between cellular networks and elevator intercom systems. This next-generation device features multiple interfaces, enabling comprehensive remote monitoring and management of the elevator communication system, which allows for rapid and efficient resolution of any issues or malfunctions.

  • Key Features
  • Specification
  • Downloads
  • Model

With its robust design and advanced capabilities, the EV8100 serves as a reliable and essential safety solution for modern buildings. It supports Docker, allowing for the easy deployment of applications, and is powered by RobustOS Pro – Robustel’s latest Linux Debian Bullseye-based router operating system, featuring enhanced cybersecurity, an intuitive graphical user interface (GUI), and a wide array of software functionalities, including VPN support, Smart Roaming, SMS remote control, and more.



KEY FEATURES

  • Supports VoIP and VoLTE, with VoLTE as a backup voice communication line
  • Complies with EN 81-28 and AS1735 standards with an integrated battery holder
  • Provides stable 4G/3G/2G cellular connectivity with global band support
  • Features an 8 GB eMMC Flash for running complex applications
  • Enables application management through Docker containerization
  • Connects to industrial and legacy devices via 1 x RS-232, 1 x RS-485, and 1 x CAN ports
  • Allows monitoring and control with 4 x Digital Inputs (DI) and 1 x Relay
  • Offers dual SIM slots for redundant communication
  • Includes optional 802.11ac Wi-Fi for Access Point and Client modes
  • Provides optional Bluetooth 5.2 for enhanced wireless connectivity
  • Supports development in C, C++, Java, Python, and Node.js
  • Grants access to over 50,000 applications from the Debian repository
  • Ensures secure connections with various VPN options, including IPsec and OpenVPN
  • Facilitates device management with Robustel’s cloud management platform (RCMS)

Learn more and fast with this video of Robustel’s new VoIP gateway showing the hardware itself, use cases, special features & live demonstration of both router & cloud platform.

Robustel EV8100 Quick Pitch Video



Hardware System
CPU ARM Cortex-A7, 792 MHz
RAM 512 MB DDR3
Flash 8 GB eMMC



Cellular Interface
Number of antennas 2
Connector SMA-K
SIM 2 x Mini SIM (2FF)



FXS Port
Number of ports 1
Connector 2-pin 5.08mm terminal block
Signal definition TIP, RING
Loop voltage -48 V DC
Loop current 20 mA max
Loop resistance 800 Ohm max



Ethernet Port
Numbe of ports 2 x RJ45, 10/100Mbps, LAN or WAN, 1 KV magnet isolation protection



Serial Port
Number of ports 1 x RS-232 + 1 x RS-485 + 1 x CAN
Connector 3.5 mm terminal block
ESD protection 8 KV Air, 4 KV Contact
Baud rate 300 bps to 115200 bps for RS-232/RS-485,

up to 1 Mbps for CAN

Signal definition RS-232: TXD, RXD, GND

RS-485: A, B, GND

CAN: CAN_H, CAN_ L, GND



Digital Input/Relay Port
Number of ports 4 x DI (Wet contact) + 1 x Relay (Dry contact)
Connector 3.5 mm terminal block
Absolute maximum VDC + 30 V DC (DI), +40 V DC (Relay)
Absolute maximum ADC 100 mA (DI), 300 mA (Relay)
Signal definition DI1+, DI1-, DI2+, DI2-, DI3+, DI3-, DI4+, DI4-

NC, NO, COM



WiFi Interface (Optional)
Number of antennas 2
Connector RP-SMA-K
Standards 802.11a/b/g/n/ac, 2 x 2 MIMO, supports AP and Client modes
Frequency bands 2.4 GHz/5 GHz



Bluetooth Interface (Optional)
Number of antennas 1 (Multiplexing Wi-Fi antenna)
Connector RP-SMA-K
Standards Bluetooth 2.1 and 3.0 + Enhanced Data Rate (EDR) + Bluetooth 5.2



Others
Reset button 1 x RST
Switch 1 x Battery Switch
USB port 1 x USB 2.0 (host), Type A, 5V, 500 mA
LED indicators 1 x BATTERY, 1 x RUN, 1 x MDM, 1 x RSSI, 1 x LINE,

1 x CLOUD, 1 x DEVICE

Watchdog External



Battery
1. Battery holder for 2 x 18650 lithium batteries (not included by default).
2. Device is only compatible with 18650 (flat top) type of lithium batteries.
3. lf using a single battery, install it in position 1.
4. Improper installation or use of incorrect batteries may damage the device and void warranty.



VOIP
Protocols SIP (RFC3261) over UDP, SIPs, SRTP
DTMF In-band, RFC2976, RFC 2833



Software (Basic features of RobustOS Pro)
Network protocols PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, NTP,

SMTP, Telnet, HTTPs, ARP, VLAN, SSH2, DDNS, etc.

VPN tunnels IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN
Firewalls DMZ, anti-DoS, Filtering (lP/Domain name/MAC address), Port Mapping, Access Control
Remote management Web, CLI, SMS
Serial port protocols Transparent, TCP Client/Server, UDP, Modbus RTU Gateway
Others Smart Roaming V2



SDK
Operating System RobustOS Pro (Based on Debian 11 Bullseye)
Supported programming

languages

C, C++, Python, Java, Node.js, etc.

(for users to develop own applications)

Debian Repository available
Flash available for SDK 6 GB
RAM available for SDK 256 MB



App Center (Available Apps for RobustOS Pro)
Apps*  Language, RCMS, Wireguard

*Request on demand. For more Apps please visit www.robustel.com



Cloud Platform
Robustel Cloud Manager Service (RCMS)  RobustLink, RobustVPN, Operation Console, Elevator IoT



Power Supply and Consumption
Connector 2-pin 3.5 mm terminal block with lock
Input voltage 12/24 V DC, 9~30 V DC

Reverse polarity protection, surge protection

Power consumption ldle: 4 W@12 V

Max: 15 W @12 V

Recommended power supply 12 V DC/2 A power adapter



Physical Characteristics
Ingress protection IP30
Housing & Weight Plastic, 470 g
Dimensions 170 x 150 x 35 mm

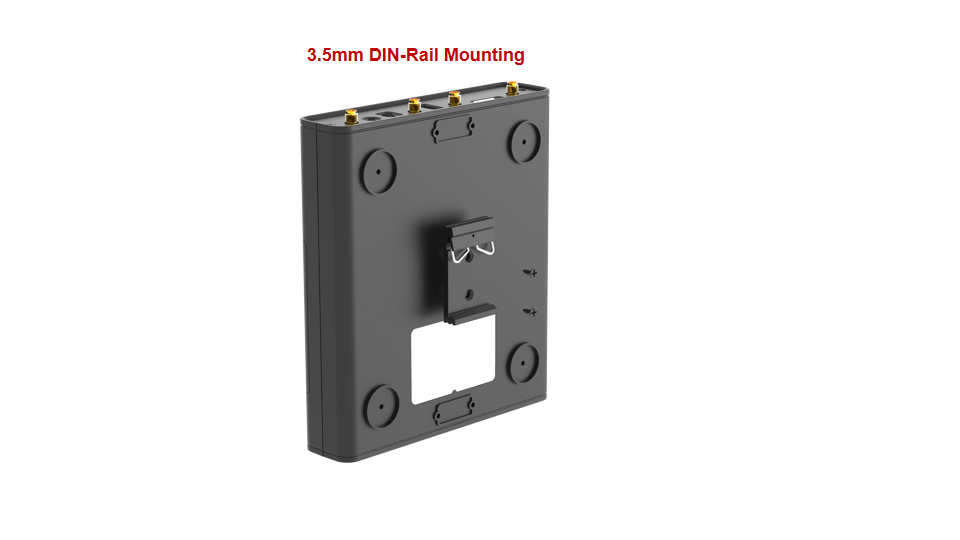

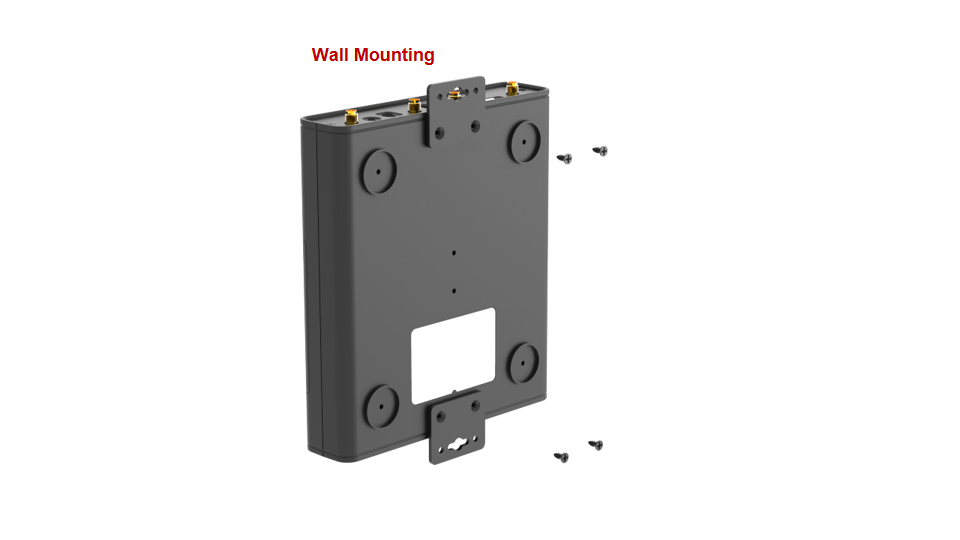

Installations Desktop, wall mounting and 35 mm DIN rail mounting

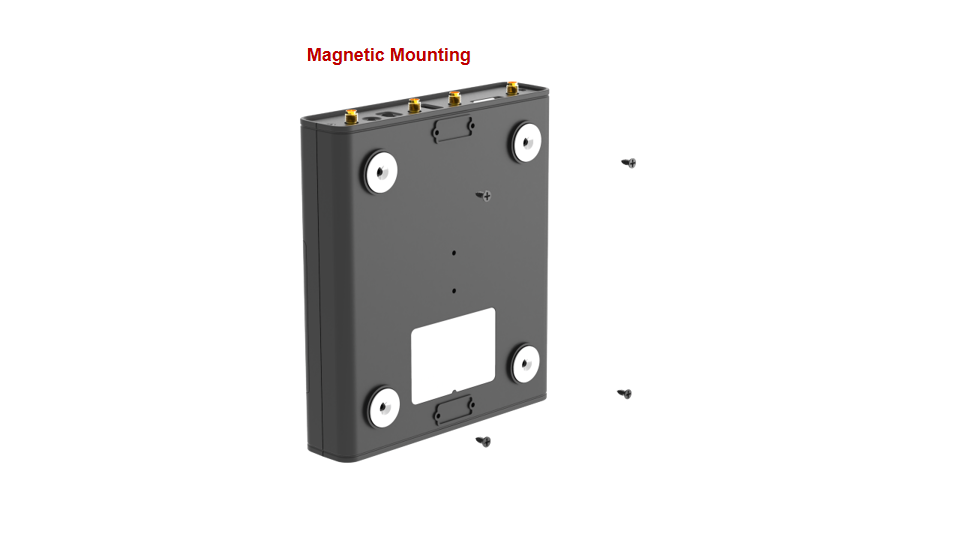

Optional magnetic mounting, the suction iron is a detachable part

Operating temperature -20 ~ +60 ℃(without battery)

0 ~ +45 °C(with battery)

Note: The battery can be charged at 0 ~ +35 °C.

Storage temperature -40 ~ + 85 °C (without battery)

-20 ~ + 35 °C (with battery for long term)

Relative humidity 5 ~ 95% RH (non-condensing)



Regulatory and Type Approvals
Environmental RoHS2.0
EMI EN 55032 Conducted Emission Class B

EN 55032 Radiated Emission Class B

EMS EN 61000-4-2 (ESD) Level 2

EN 61000-4-3 (RS) Level 3

EN 61000-4-4 (EFT) Level 2

EN 61000-4-5 (Surge) Level 2

EN 61000-4-6 (CS) Level 2



EV8100 Datasheet



EV8100 Hardware Manual



RobustOS Pro Software Manual



*All Robustel Firmware and RobustOS Apps are now available to download from the App Centre section of RCMS Cloud.

If you don’t already have access to RCMS Cloud you can Sign Up  freely.

*Please contact our Technical Support if you have any trouble finding the resources.

Model Order Code Wi-Fi + BLE Frequency Bands* Country/

Region

Certification

(*In progress)

 Package Contains
EV8100-A-4L-A06GL A012600010 4G:LTE FDD:

B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/

B19/B20/B25/B26/B28

LTE TDD: B38/B39/B40/B41

3G: UMTS: B1/B2/B4/B5/B6/B8/B19

2G: GSM: B2/B3/B5/B8



Global CE, UKCA, FCC, IC, PTCRB, Verizon, AT&T 1 x EV8100 Gateway (B Code: B126001)

1 x Wall Mounting Kit

A012600002 1 x EV8100 Gateway (B Code: B126001)

2 x Cellular Antenna

1 x Power Adapter

1 x Wall Mounting Kit

EV8100-B-4L-A06GL A012600011 CE, UKCA, FCC, IC, PTCRB, Verizon, AT&T, NTC* 1 x EV8100 Gateway (B Code: B126002)

1 x Wall Mounting Kit

A012600003 1 x EV8100 Gateway (B Code: B126002)

2 x Cellular Antenna

2 x Wi-Fi Antenna

1 x Power Adapter

1 x Wall Mounting Kit

EV8100-A-4L-A34AU A012600012 4G: LTE-FDD:B1/2/3/4/5/7/8/28

LTE-TDD:B40

3G: WCDMA: B1/2/4/5/8

2G: GSM/EDGE:B2/3/5/8



ANZ RCM 1 x EV8100 Gateway (B Code: B126003)

1 x Wall Mounting Kit

A012600004 1 x EV8100 Gateway (B Code: B126003)

2 x Cellular Antenna

1 x Power Adapter

1 x Wall Mounting Kit

EV8100-B-4L-A34AU A012600013 1 x EV8100 Gateway (B Code: B126004)

1 x Wall Mounting Kit

A012600005 1 x EV8100 Gateway (B Code: B126004)

2 x Cellular Antenna

2 x Wi-Fi Antenna

1 x Power Adapter

1 x Wall Mounting Kit

EV8100-A-4L-A04JP A012600014 4G: LTE-FDD:B1/B3/B8/B18/B19/B26

LTE-TDD:B41

3G:B1/B6/B8/B19

Japan JATE, TELEC 1 x EV8100 Gateway (B Code: B126005)

1 x Wall Mounting Kit

A012600006 1 x EV8100 Gateway (B Code: B126005)

2 x Cellular Antenna

1 x Power Adapter

1 x Wall Mounting Kit

EV8100-B-4L-A04JP A012600015 1 x EV8100 Gateway (B Code: B126006)

1 x Wall Mounting Kit

A012600007 1 x EV8100 Gateway (B Code: B126006)

2 x Cellular Antenna

2 x Wi-Fi Antenna

1 x Power Adapter

1 x Wall Mounting Kit

EV8100-A-4L-A12EU A012600016 4G: LTE FDD : B1/B3/B7/B8/B20/B28A

LTE TDD : B38/B40/B41

3G: WCDMA: B1/B8

2G: GSM/EDGE:B3/B8

EU CE, UKCA 1 x EV8100 Gateway (B Code: B126013)

1 x Wall Mounting Kit

EV8100-B-4L-A12EU A012600017 1 x EV8100 Gateway (B Code: B126014)

1 x Wall Mounting Kit

*For more information about frequency bands in different countries, please contact your Robustel sales representative.
