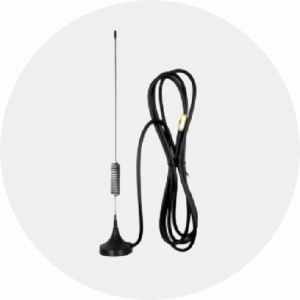

E003216 5G Magnetic Antenna 3.9dBi 1.5M

  • Specification
  • Downloads
  • Model
Parameter Rated Value
Frequency Range 700 ~ 960 MHz / 1710 ~ 2690 MHz / 3300 ~ 5000 MHz
Gain ≤ 3.9 dBi
V.S.W.R ≤ 5.1
Polarization Linear
Radiation Pattern Omni-directional
Impedance 50 Ohm
Connector SMA male
Cable RG195, 1500 mm
Dimension Φ45 * 285 mm
Operating Temperature -20 ℃ ~ 85 ℃
RoHS Compliant √
Related Products Compatible with 5G Router/Gateway
E003216 5G Magnetic Antenna 3.9dBi 1.5M FLYER
Model PN
5G Magnetic Antenna E003216

Recommended Products

EG5120 Industrial Edge Computing Gateway

  • Highly stable 5G/4G/3G/2G cellular connectivity with global band coverage
  • High performance compute engine with 1.6 GHz CPU + 16 GB eMMC Flash for running complex applications
  • ‘Docker’ containerisation supported
  • Cutting-edge (Release 16) 5G interface
  • 802.11ac Wi-Fi (optional) supporting AP and Client modes
  • Bluetooth (optional), Bluetooth 5.2 compliant
  • 2 x RS232/RS485 (software configurable) ports for connection to industrial/legacy devices
  • 2 x DI & 2 x DO for simple monitoring and control
  • Dual SIM card slots for redundant communications
  • Wide Operating Temperature range for industrial applications
  • Full Modbus TCP and Modbus RTU support including MQTT transfer to mainstream cloud platforms
  • Supports C, C++, Java, Python, Node.js etc. for users to develop their own applications
  • More than 50,000 applications from Debian repository currently available
  • Wireguard/IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN + more VPN options
  • Supports RCMS – Robustel’s router/gateway management platform for effective management of large estates of devices

R5020 5G IoT Router

  • Global 5G/4G/3G cellular connections
  • Supports Ethernet, Wifi and 4G/5G internet with auto-failover
  • Very cost-effective industrial 5G router solution
  • Fully programmable Operating System with well documented SDK
  • Multiple VPN options are available, including DMVPN & IPSEC
  • GNSS, ignition sense & E-mark make R5020 ideal for vehicles
  • Free cloud management platform – RCMS
  • Robust metal enclosure with small footprint – DIN-rail + wall mount options
