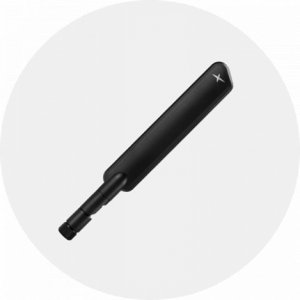

E003215 5G Rubber Antenna 3.1dBi

  • Specification
  • Downloads
  • Model
Parameter Rated Value
Frequency Range 600MHz-6GHz
Gain 3.1 dBi
V.S.W.R ≤ 2.5
Polarization Linear
Radiation Pattern Omni-directional
Impedance 50 Ohm
Connector SMA male
Weight 24.3 g
Dimension 172 mm * 23.9 mm * 13 mm
Operating Temperature -40 ℃ ~ 85 ℃
RoHS Compliant √
Related Products Compatible with 4/5G products
E003215 5G Rubber Antenna 3.1dBi FLYER
Model PN
5G Rubber Antenna E003215
