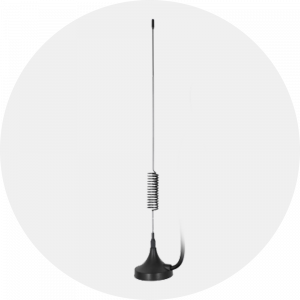

E003201 5G Magnetic Antenna 4.0dBi 3M

  • Specification
  • Downloads
  • Model
Parameter Rated Value
Frequency Range 700 ~ 5000 MHz
Gain 4.0 dBi
V.S.W.R 3.5Max
Polarization Linear
Impedance 50 Ohm
Connector SMA male
Cable RG 195, 3000 mm
Operating Temperature -20℃ ~ 85℃
RoHS Compliant
Related Products Compatible with 4/5G products
Model PN
5G Magnetic Antenna E003201

Recommended Products

R5020 5G IoT Router

  • Global 5G/4G/3G cellular connections
  • Supports Ethernet, Wifi and 4G/5G internet with auto-failover
  • Very cost-effective industrial 5G router solution
  • Fully programmable Operating System with well documented SDK
  • Multiple VPN options are available, including DMVPN & IPSEC
  • GNSS, ignition sense & E-mark make R5020 ideal for vehicles
  • Free cloud management platform – RCMS
  • Robust metal enclosure with small footprint – DIN-rail + wall mount options
