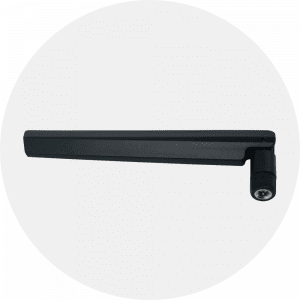

E003174 5G Rubber Antenna 4.02dBi

  • Specification
  • Downloads
  • Model
Parameter Rated Value
Frequency Range 700 ~ 960MHz 1710 ~ 2700MHz 3300 ~ 5150MHz 5000 ~ 5850MHz
Gain 1.78 dBi 3.27 dBi 0.18 dBi 4.02 dBi
V.S.W.R 2.0 Max 3.5 Max 3.5 Max 4.0 Max
Polarization Linear
Impedance 50 Ohm
Connector SMA male
Operating Temperature -40°C ~ 70°C
RoHS Compliant √
Related Products Compatible with 4/5G products
E003174 5G Rubber Antenna 4.02dBi FLYER
Model PN
5G Rubber Antenna E003174
