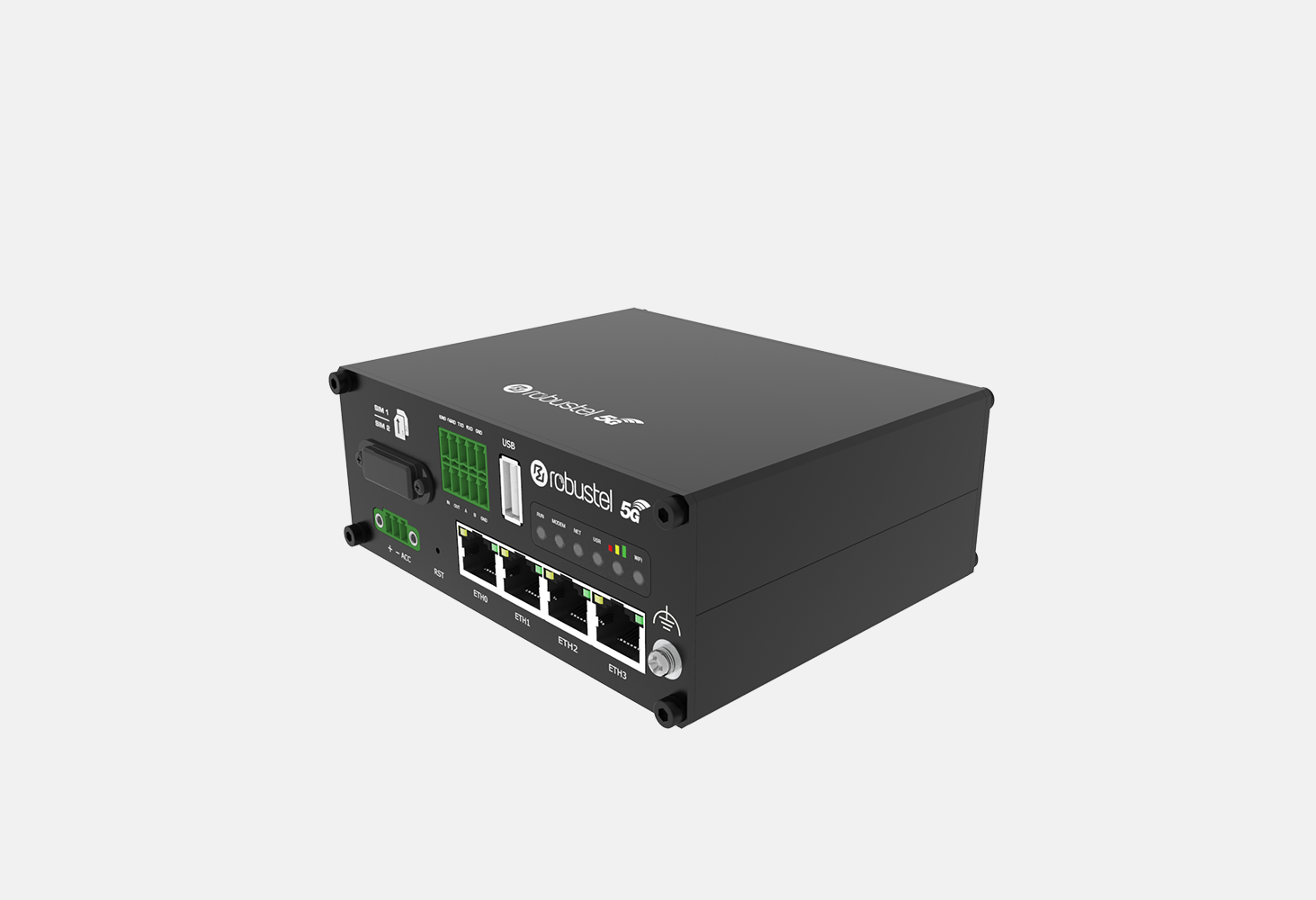

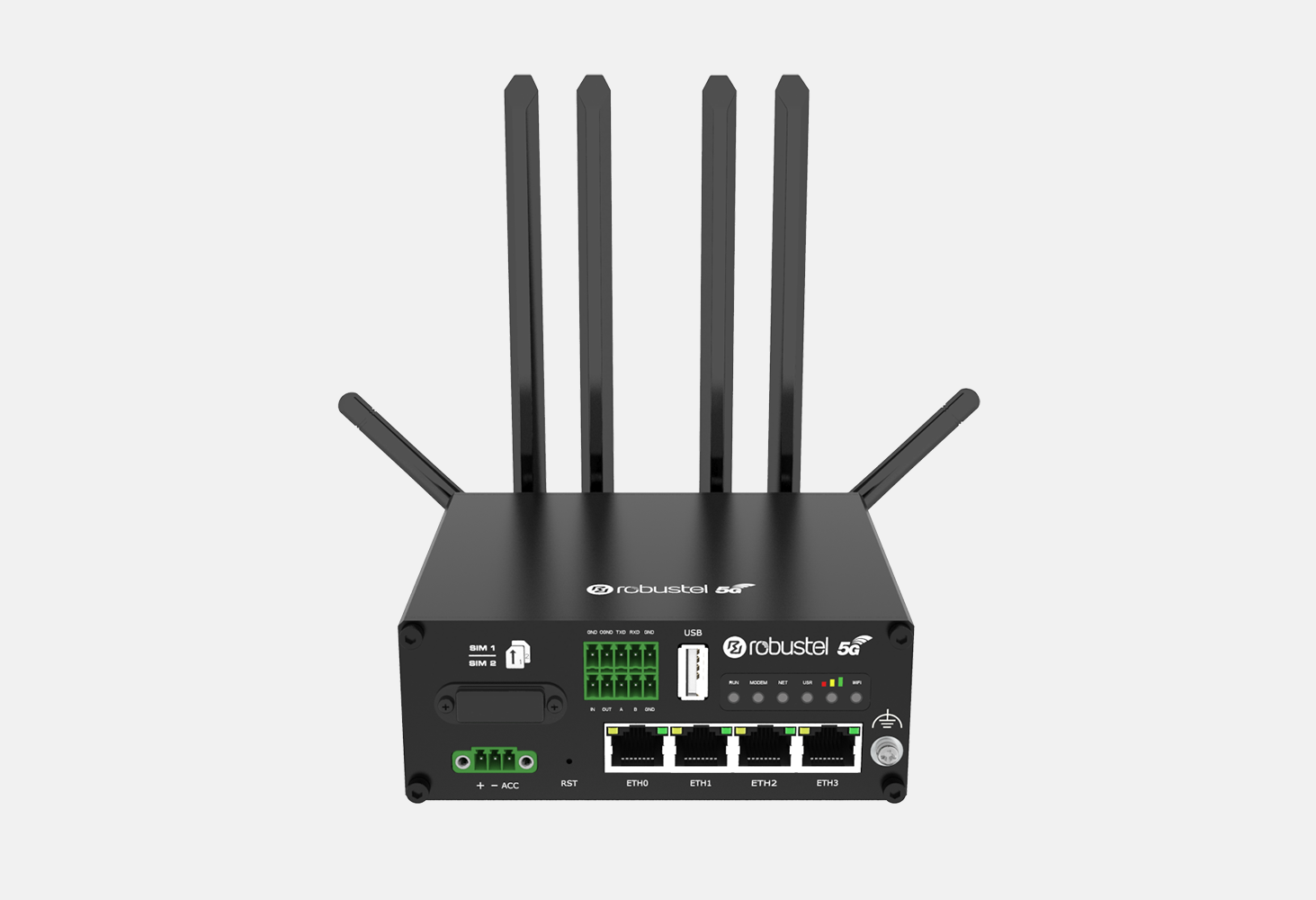

The R5020 from Robustel brings next-generation cellular connectivity at a highly competitive price.
Offering global 3G, 4G & 5G band coverage in a compact industrial form factor, the R5020 enables rapid deployment of high-speed IoT applications in verticals as diverse as Transportation, Enterprise Connectivity and Digital Signage.
The R5020 is Robustel’s first 5G-capable router supporting global 5G, 4G, and 3G bands. It leverages a proven high-performance CPU platform and RobustOS – a mature and stable operating system developed in-house by Robustel. The R5020 is compliant with 3GPP Release 15 and is designed for the following applications:
In-vehicle Applications: Whether for passenger Wi-Fi, CCTV monitoring, ticketing, or other onboard requirements, the R5020 provides a simple and effective solution to enhance internet speeds and future-proof existing installations. It has achieved E-Mark certification for in-vehicle use and supports GNSS positioning. A version with vehicle ignition sensing is also available to protect vehicle batteries when the engine is off.
Broadband Failover: The R5020 can be configured to use Ethernet or Wi-Fi as the primary internet connection, with automatic failover to 4G/5G in the event of an outage. This provides resilience for establishments such as retail shops and small offices at a reasonable cost, ensuring sufficient bandwidth for multiple users. It supports IPsec, DMVPN, and OpenVPN protocols for secure connections to core networks.
Primary Broadband: Cellular networks now offer unlimited 5G plans at competitive prices, delivering hundreds of Mbps of internet connectivity wirelessly. For many users, the opportunity to eliminate wired connections and utilize a wireless internet solution can be both technically and commercially advantageous.
KEY FEATURES
| Hardware System | |
| CPU | Dual-core MIPS, 880 MHz |
| RAM | 512 MB |
| Flash | 32 MB |
| Cellular Interface | |

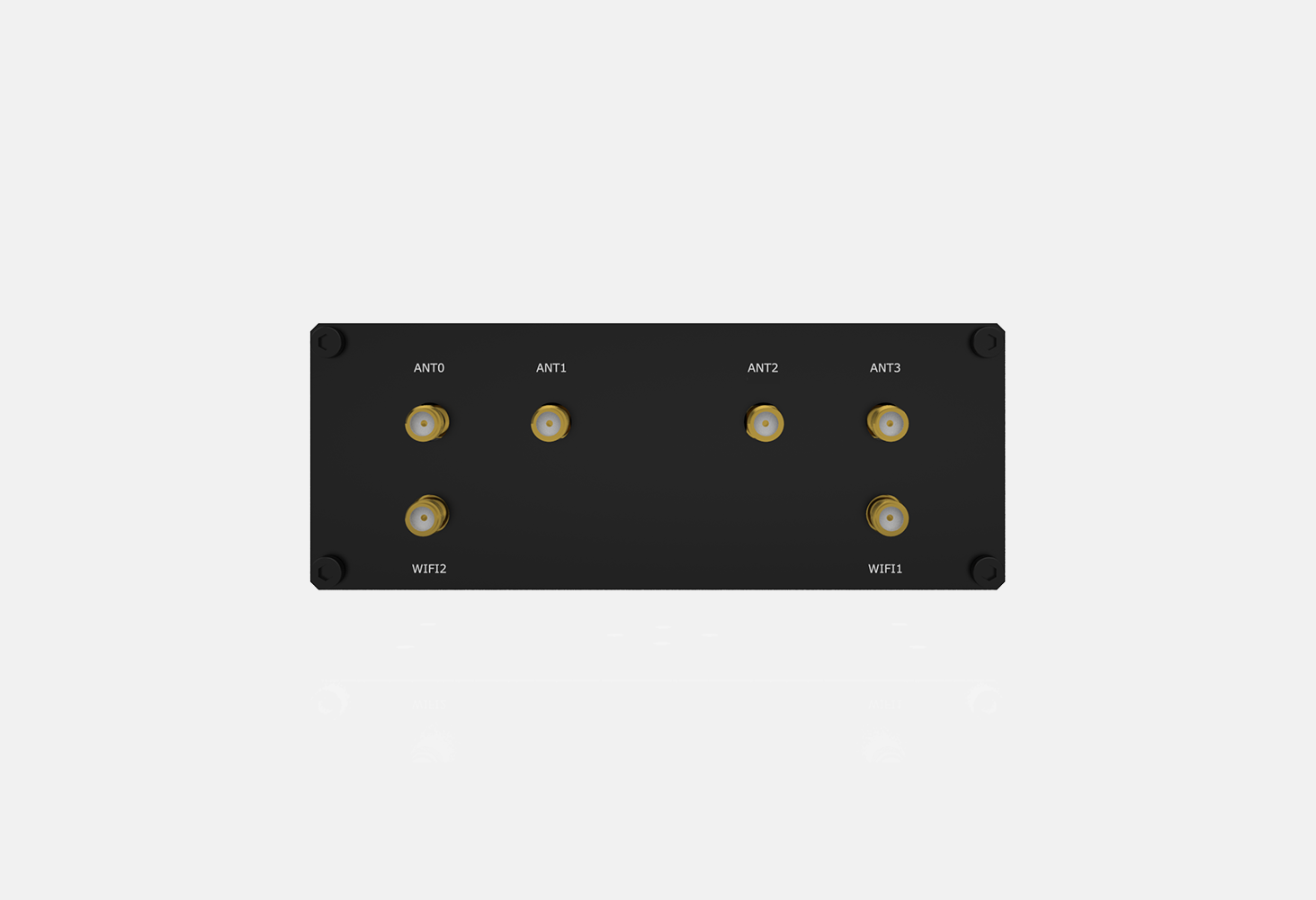

| Number of antennas | 4 (ANT0 + ANT1 + ANT2 + ANT3) |
| Connector | SMA-K |
| SIM | 2 x Mini SIM (2FF) |
| Ethernet Port | |
| Number of ports | 4 x 10/100/1000 Mbps, 4 x LAN by default, can be configured as 1 x WAN + 3 x LAN Supporting 802.3at PD feature on ETH0 (optional) |
| Magnet isolation protection | 1 KV |
| Wi-Fi Interface | |
| Number of antennas | 2 (Wi-Fi1 + Wi-Fi2) |
| Connector | RP-SMA-K |
| Standards | 802.11 a/b/g/n/ac, 2 x 2 MIMO, supporting AP and Client modes |
| Frequency bands |
2.412 – 2.472 GHz (2.4 GHz ISM band) 5.15 – 5.825 GHz (5 GHz ISM band) |
| Security | WPA, WPA2, WEP, WPA3 |
| Encryption | AES, TKIP, WEP64 |
| Serial Port | |
| Number of ports | 1 x RS-232 + 1 x RS-485 |
| Connector | 2 x 5-pin 3.5 mm female socket |
| ESD protection | ±8 KV air discharge, ±4 KV contact discharge |
| Baud rate | 300 bps ~ 115200 bps |
| Signal definition |
RS-232: TXD, RXD, GND RS-485: Data+ (A), Data- (B), Ground (GND) |
| Digital Input/Output Port | |
| Number of ports | 1 x DI + 1 x DO, wet contact |
| Connector | 2 x 5-pin 3.5 mm female socket |
| Isolation | 3.75 KV DC (opto-isolator) |
| Absolute maximum VDC | +30 V DC (DI), +30 V DC (DO) |
| Absolute maximum ADC | 100 mA (DO) |
| Signal definition | IN, OUT, IGND, OGND |
| GNSS Interface | |
| Number of antennas | 1 |
| Connector | SMA-K |
| GNSS frequency | GPS: L1, L5
QZSS: L1, L5 Galileo: E1, E5a GLONASS: L1OF BDS: B1 |
| Note: The antenna interface is exclusively compatible with models R5020-5G-A30EU-A and R5020-5G-A30EU-B. | |
| Others | |
| Reset button | 1 x RST |
| USB port | 1 x USB 2.0 (host), 5 V, 500 mA |
| LED indicators | 1 x RUN, 1 x MODEM, 1 x NET, 1 x USR, 1 x RSSI, 1 x Wi-Fi |
| Watchdog | Built-in |
| Power Supply and Consumption | |
| Connector | 3-pin 3.5 mm female socket with lock |
| Input voltage |
PoE-PD version: 12/24 V DC (9 ~ 36 V DC in); 42.5 ~ 57 V (PoE-PD@ETH0) ACC version: 12/24 V DC (10 ~ 30 V DC in) Reverse polarity protection, surge protection |
| Power consumption | Idle: 5.5 W@12 V Max: 12.5 W@12 V |
| Recommended power supply | 24 V DC/1.5 A power adapter |
| Physical Characteristics | |
| Ingress protection | IP30 |
| Housing & Weight | Aluminum, 500 g |
| Dimensions | 48 x 100 x 125 mm |
| Installations | Desktop, wall mounting and 35 mm DIN rail mounting |
| Operating temperature | -20 ~ +55 °C (normal operation) -25 ~ +70 °C (extended operation) |
| Storage temperature | -40 ~ +85 °C |
| Relative humidity | 5 ~ 95% RH (non-condensing) |
| Software (Basic features of RobustOS) | |
| Network protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, NTP, SMTP, Telnet, VLAN, HTTPs, ARP, SSH2, DDNS, etc. |
| VPN tunnels | IPsec, OpenVPN, GRE, WireGuard |
| Firewalls | DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Remote management | Web, CLI, SMS |
| Serial port protocols | Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2) |
| Others | Smart Roaming V2 |
| SDK | |
| Supported programming languages | C, C++ |
| Flash available for SDK | 5 MB |
| RAM available for SDK | 256 MB |
| App Center (Available Apps for RobustOS) | |
| Apps* | L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069*, Edge2Cloud, etc. |
| *Request on demand. For more Apps please visit www.robustel.com. | |
| Cloud Platform | |
| Robustel Cloud Manager Service (RCMS) | RobustLink, RobustVPN, Operation Console |
| Regulatory and Type Approvals | |
| Evvironmental | RoHS2.0, WEEE |
| EMI | EN 55032 Conducted Emission Class A EN 55032 Radiated Emission Class A |
| EMS |
EN 61000-3-2 (Harmonic Current) EN 61000-3-3 (Voltage Flicker) EN 61000-4-2 (ESD) Contact Level 2, Air Level 3 EN 61000-4-3 (RS) Level 2 EN 61000-4-4 (EFT) Level 3 EN 61000-4-5 (Surge) Line to line Level 3, Line to ground Level 3 EN 61000-4-6 (CS) Level 3 EN 61000-4-11 (Dips) Class 2 |
R5020 Hardware Manual
RobustOS Software Manual
*All Robustel Firmware and RobustOS Apps are now available to download from the App Centre section of RCMS Cloud.
If you don’t already have access to RCMS Cloud you can Sign Up freely.
*Please contact our Technical Support if you have any trouble finding the resources.
*All Robustel Firmware and RobustOS Apps are now available to download from the App Centre section of RCMS Cloud.
If you don’t already have access to RCMS Cloud you can Sign Up freely.
*Please contact our Technical Support if you have any trouble finding the resources.
| Model | Order Code | GNSS | PoE-PD | ACC | Frequency Bands1 |
Country/ Region |
Certification (*In Progress) |
Package Contains |
| R5020-5G-A09GL-A | – | Optional2 | – | ✓ |
5G NR: NSA: n1/2/3/5/7/8/12/
4G LTE: LTE FDD: B1/2/3/4/5/7/
3G UMTS: WCDMA: B1/2/3/4/ |
Global | CB, CE, UKCA, RCM, FCC, IC, AT&T, PTCRB, POSTEL, NTC, E-Mark | 1 x R5020 Router (B Code: B064803) 1 x Wall Mounting Kit 4 x Cellular Antenna 2 x Wi-Fi Antenna 1 x Power Adapter |
| R5020-5G-A09GL-B | – | Optional2 | ✓ | – | Global |
1 x R5020 Router (B Code: B064802) 1 x Wall Mounting Kit 4 x Cellular Antenna 2 x Wi-Fi Antenna 1 x Power Adapter |
||
| R5020-5G-A30EU-A | A006400805 | ✓ | – | ✓ |
5G NR: NSA/SA: n1/3/5/7/8/20
4G LTE: LTE FDD: B1/3/5/7/8/
3G WCDMA: B1/5/8 |
EMEA, APAC | CE, UKCA, RCM*, E-Mark | 1 x R5020 Router (B Code: B006400812) 1 x Wall Mounting Kit |
| A006400806 | ✓ | – | ✓ | EMEA, APAC |
1 x R5020 Router (B Code: B006400812) 1 x Wall Mounting Kit 4 x Cellular Antenna 2 x Wi-Fi Antenna 1 x GNSS Antenna 1 x Power Adapter |
|||
| R5020-5G-A30EU-B | A006400807 | ✓ | ✓ | – |
5G NR: NSA/SA: n1/3/5/7/8/20
4G LTE: LTE FDD: B1/3/5/7/8/
3G WCDMA: B1/5/8 |
EMEA, APAC | CE, UKCA, RCM*, E-Mark | 1 x R5020 Router (B Code: B006400813) 1 x Wall Mounting Kit |
| A006400808 | ✓ | ✓ | – | EMEA, APAC |
1 x R5020 Router (B Code: B006400813) 1 x Wall Mounting Kit 4 x Cellular Antenna 2 x Wi-Fi Antenna 1 x GNSS Antenna 1 x Power Adapter |
|||
| R5020-5G-A25GL-B3 | A006400811 | Optional2 | ✓ | – |
5G NR: NSA: n1/2/3/5/7/8/12/
4G LTE: LTE FDD: B1/2/3/4/5/7/
3G UMTS: WCDMA: B1/2/4/5/ |
Global | – | 1 x R5020 Router (B Code: B006400809) 1 x Wall Mounting Kit |
| A006400810 | Optional2 | ✓ | – | Global |
1 x R5020 Router (B Code: B006400809) 1 x Wall Mounting Kit 4 x Cellular Antenna 2 x Wi-Fi Antenna 1 x Power Adapter |
Note:
1. For more information about frequency bands in different countries, please contact your Robustel sales representative.
2. GNSS: Optional, requires a 4-in-1 Combo Antenna to support GNSS function.
3. The model R5020-5G-A25GL-B currently does not support Telstra certification and is not recommended for use on the Telstra network.
