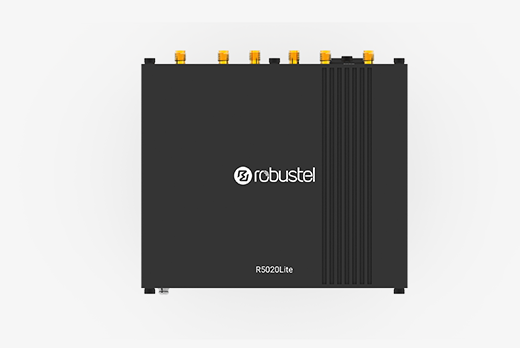

R5020 Lite High Speed Smart 5G Router

The R5020 Lite is Robustel’s latest 5G-capable router supporting 5G, 4G, and 3G networks. It leverages our proven high-performance CPU platform along with RobustOS, an in-house developed operating system that has successfully passed extensive third-party penetration testing.

  • Key Features
  • Specification
  • Downloads
  • Model

The R5020 Lite is Robustel’s latest 5G-capable router supporting 5G, 4G, and 3G networks. It leverages our proven high-performance CPU platform along with RobustOS, an in-house developed operating system that has successfully passed extensive third-party penetration testing.



The R5020 Lite is compatible with 3GPP Release 16 and is designed for the following applications:

Broadband Failover: The R5020 Lite can be configured to use Ethernet or Wi-Fi as the primary internet connection, with automatic failover to 5G/4G in the event of an outage. This feature provides resilience for retail shops and small offices at a reasonable cost, ensuring sufficient bandwidth for multiple users. It supports various protocols, including IPsec, DMVPN, GRE, and more, for secure connections to core networks.

Primary Broadband: Cellular network operators now offer unlimited 5G plans at competitive prices. For many businesses, the opportunity to eliminate wired connections and utilize a wireless internet solution can be both technically and commercially advantageous.

SD-WAN: While many appliances include built-in cellular options, the R5020 Lite provides a cost-effective solution to add a 5G backup route. Its ability to be located externally increases the likelihood of receiving a strong 5G signal.



KEY FEATURES

  • Low-cost industrial 5G router
  • 5G/4G/3G cellular connections
  • Cutting-edge 5G 3GPP Release 16 cellular interface
  • Supports Ethernet, Wi-Fi and 5G/4G internet with auto-failover
  • 1 x RS-232/RS-485 ports (software configurable) for connecting industrialand legacy devices
  • Fully programmable operating system with a well-documented SDK
  • Multiple VPN options available including DMVPN, IPsec, L2TP, and more
  • Free cloud management platform (RCMS)
  • Robust metal enclosure with a compact design for DIN-rail and wall mounting
Hardware System
CPU Dual-core MIPS, 880 MHz
RAM 256 MB
Flash 32 MB



Cellular Interface
Number of antennas 4 (ANT0 + ANT1 + ANT2 + ANT3)
Connector SMA-K
SIM 2 x Mini SIM (2FF)



Ethernet Port
Number of ports 2 x 10/100/1000 Mbps, 2 x LAN by default, can be configured as 1 x WAN + 1 x LAN
Magnet isolation protection 1 KV



Wi-Fi Interface
Number of antennas 2 (Wi-Fi1 + Wi-Fi2)
Connector RP-SMA-K
Standards 802.11 a/b/g/n/ac, 2 x 2 MIMO, supporting AP and Client modes
Frequency bands 2.412 – 2.472 GHz (2.4 GHz ISM band)

5.15 – 5.825 GHz (5 GHz ISM band)

Security WPA, WPA2, WEP, WPA3
Encryption AES, TKIP, WEP64



Serial Port
Number of ports 1 x RS-232 or 1 x RS-485 (software configurable)
Connector 1 x 3-pin 3.5 mm female socket
ESD protection ±8 KV air discharge, ±6 KV contact discharge
Baud rate 300 bps ~ 115200 bps
Signal definition RS-232: TXD, RXD, GND

RS-485: Data+ (A), Data- (B), Ground (GND)



GNSS Interface
Number of antennas 1
Connector SMA-K
GNSS frequency GPS: L1, L5

QZSS: L1, L5

Galileo: E1, E5a

GLONASS: L1OF

BDS: B1



Others
Reset button 1 x RST
LED indicators 1 x RUN, 1 x MDM, 1 x RSSI, 1 x USR, 1 x 2.4G (Wi-Fi), 1 x 5G Wi-Fi
Watchdog External



Power Supply and Consumption
Connector 2-pin 3.5 mm terminal block with lock
4-pin Micro-Fit socket
Note: Different models correspond to different connectors. Please refer to the Model table for details.
Input voltage 12/24 V DC, 12 ~ 36 V DC

Reverse polarity protection, surge protection

Power consumption Idle: 3 W@12 V
Max: 11 W@12 V
Recommended power supply 12 V DC/1.5 A power adapter



Physical Characteristics
Ingress protection IP30
Housing & Weight Aluminum, 475 g
Dimensions 32 x 115 x 136 mm
Installations Desktop, wall mounting and 35 mm DIN rail mounting
Operating temperature -20 ~ +55 °C (normal operation)
-25 ~ +70 °C (extended operation)
Storage temperature -40 ~ +85 °C
Relative humidity 5 ~ 95% RH (non-condensing)



Software (Basic features of RobustOS)
Network protocols PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, NTP, SMTP, Telnet, VLAN, HTTPs, ARP, SSH2, DDNS, etc.
VPN tunnels IPsec, OpenVPN, GRE, WireGuard
Firewalls DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Remote management Web, CLI, SMS
Serial port protocols Transparent, TCP Client/Server, UDP, Modbus RTU to TCP
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2)
Others Smart Roaming V2



SDK
Supported programming languages  C, C++
Flash available for SDK 5 MB
RAM available for SDK 128 MB



App Center (Available Apps for RobustOS)
Apps* L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Captive Portal, WLAN Multi AP, Edge2Cloud, etc.
*Request on demand. For more Apps please visit www.robustel.com.



Cloud Platform
Robustel Cloud Manager Service (RCMS) RobustLink, RobustVPN, Operation Console



Regulatory and Type Approvals
Evvironmental RoHS2.0
Testing IEC 60068-2-6 (Sinusoidal Vibration)
IEC 60068-2-27 (Mechanical Shock)
IEC 60068-2-64 (Random Vibration)
EMI EN 55032 Conducted Emission Class B
EN 55032 Radiated Emission Class B
EMS EN 61000-3-2 (Harmonic Current)

EN 61000-3-3 (Voltage Flicker)

EN 61000-4-2 (ESD) Contact Level 3, Air Level 3

EN 61000-4-3 (RS) Level 3

EN 61000-4-4 (EFT) Power Ports Level 2, Signal Ports Level 3

EN 61000-4-5 (Surge) Level 3

EN 61000-4-6 (CS) Level 3

EN 61000-4-11 (Dips) Class 2

R5020 Lite Datasheet



R5020 Lite Hardware Manual



RobustOS Software Manual



*All Robustel Firmware and RobustOS Apps are now available to download from the App Centre section of RCMS Cloud.

If you don’t already have access to RCMS Cloud you can Sign Up  freely.

*Please contact our Technical Support if you have any trouble finding the resources.

Model Order Code Power Connector Wi-Fi GNSS Frequency Bands1 Country/

Region

Certification Package Contains
R5020L-A-5G-A25GL2 A009800013 2-pin 3.5 mm

Terminal

Block with

Lock

5G: NR SA/NSA: n1/2/3/5/7/8/

12/13/14/18/20/25/26/28/29/

30/38/40/41/48/66/70/71/75/

76/77/78/79

4G: LTE FDD: B1/2/3/4/5/7/8/12

/13/14/17/18/19/20/25/26/28/

29/30/32/66/71

LTE TDD:

B34/38/39/40/41/42/43/48

LAA: B46 (only supports 2 x 2

MIMO)

3G: WCDMA: B1/2/4/5/8/19

Global CE, UKCA, CB,

NTC, TDRA,

ANATEL, TELEC,

JATE, IMDA, RCM,

E-Mark

1 x R5020 Lite Router

(B Code: B098004)

1 x Wall Mounting Kit

A009810002 1 x R5020 Lite Router

(B Code: B098004)

1 x Wall Mounting Kit

4 x Cellular Antenna

2 x Wi-Fi Antenna

1 x Power Adapter

R5020L-A-5G-A43EA



A009800010 2-pin 3.5 mm

Terminal

Block with

Lock

5G: NSA:

n1/3/7/28/38/40/41/77/78

SA: n1/3/5/7/8/20/28/38/40/41

/66/77/78

4G: LTE FDD:

B1/2/3/4/5/7/8/20/28/66

LTE TDD: B38/40/41

3G: WCDMA: B1/2/5/8

EMEA

APAC

CE, UKCA 1 x R5020 Lite Router

(B Code: B009800009)

1 x Wall MountingKit

A009800011 1 x R5020 Lite Router

(B Code: B009800009)

1 x Wall MountingKit

4 x Cellular Antenna

2 x Wi-Fi Antenna

1 x Power Adapter

R5020L-B-5G-A30EU A009800014 4-pin

Micro-Fit

Socket

5G NR NSA/SA: n1/3/5/7/8/20/

28/38/40/41/71/75/76/77/78

4G:

LTE FDD:

B1/3/5/7/8/20/28/32/71

LTE TDD: B38/40/41/42/43

3G: WCDMA: B1/5/8

EMEA,  APAC CE, UKCA, CB,

RCM, NTC,

TDRA, E-Mark

1 x R5020 Lite Router

(B Code: B098005)

1 x Wall Mounting Kit

1 x Power Plug Converter

A009810004 1 x R5020 Lite Router

(B Code: B098005)

1 x Wall Mounting Kit

4 x Cellular Antenna

2 x Wi-Fi Antenna

1 x GNSS Antenna

1 x Power Adapter

R5020L-C-5G-A25GL2 A009800009 2-pin 3.5 mm

Terminal

Block with

Lock

5G NR: NSA n1/2/3/5/7/8/12/13

/14/18/20/25/26/28/29/30/38/

40/41/48/66/70/71/75/76/77/

78/79

SA: n1/2/3/5/7/8/12/13/14/18/

20/25/26/28/29/30/38/40/41/

48/66/70/71/75/76/77/78/79

4G LTE

FDD: B1/2/3/4/5/7/8/12/13/14/

17/18/19/20/25/26/28/29/30/

32/66/71

LTE TDD: B34/38/39/40/41/42/

43/48

LAA: B46

3G UMTS

WCDMA: B1/2/4/5/8/19

LATAM 1 x R5020 Lite Router

(B Code: B098008)

1 x Wall Mounting Kit

4 x Cellular Antenna

1 x Power Adapter

.

Note:

1.  For more information about frequency bands in different countries, please contact your Robustel sales representative.

2. The models R5020-5G-A25GL and R5020L-C-5G-A25GL currently do not support Telstra certification and are not recommended for use on the Telstra network.
