R3000 VPN gateway

Versatile, easy-to-deploy, rugged and reliable VPN gateway designed for harsh environment, providing seamless, secure, fast wireless connectivity to M2M/IoT applications.

  • Key Features
  • Specification
  • Documentation
  • Model

The Robustel Industrial Dual SIM Cellular VPN Router (R3000) is a rugged cellular router offering state-of-the-art mobile connectivity for machine to machine (M2M) applications.



Key Features

  • The feature Link Manager supporting WWAN1, WWAN2, Ethernet WAN,WLAN WAN link backup and ICMP detection
  • The option Backup Mode supporting cold,warm and load balancing
  • RobustOS + SDK + App
  • IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
  • Management and maintenance via Web/CLI/SNMP/RobustLink Cloud
  • Robust industrial design (9 to 60V DC,desktop or wall mounting or DIN rail
    mounting)

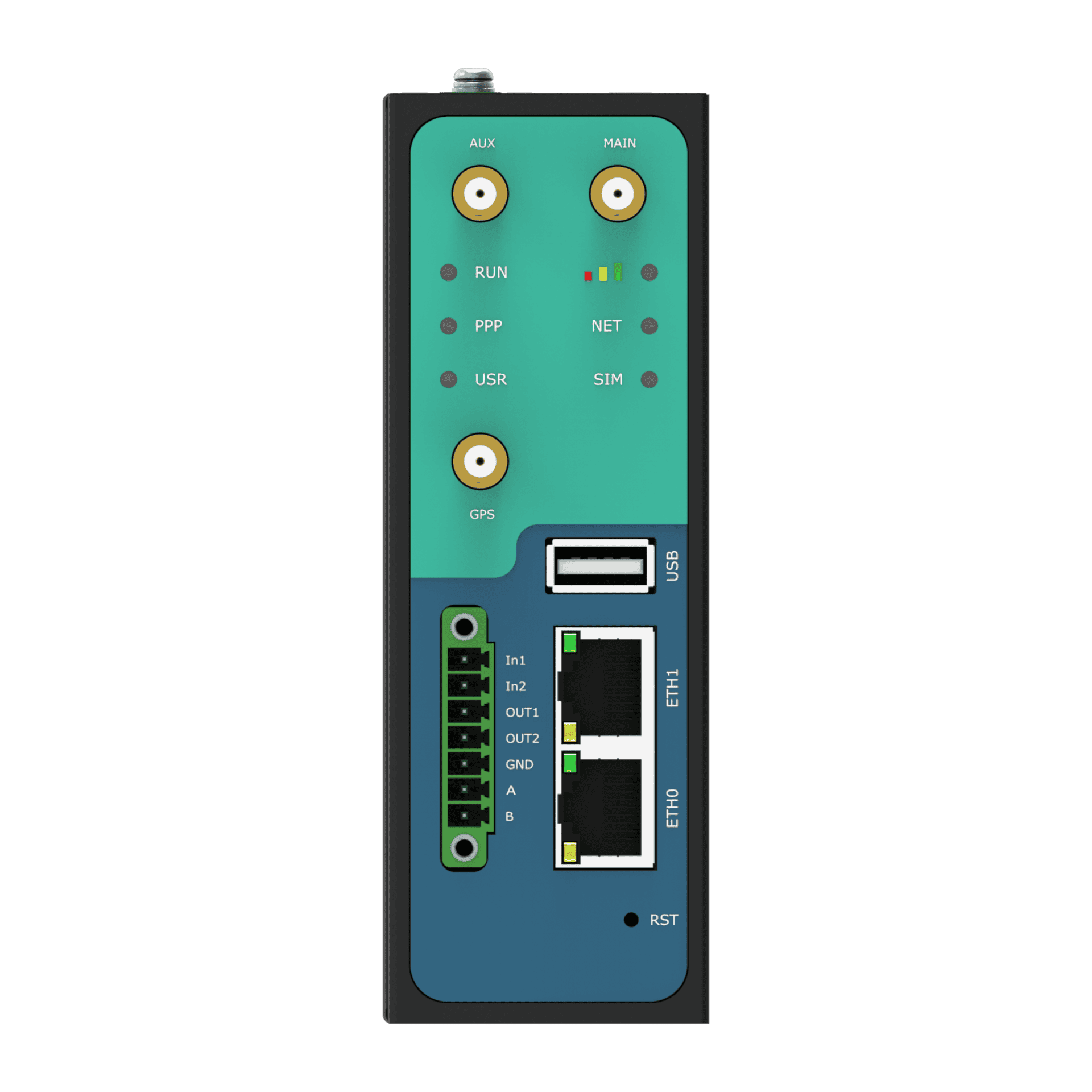

Cellular Interface
Number of antennas2 (MAIN + AUX)
ConnectorSMA, female
SIM2 (3 V & 1.8 V)



Ethernet Interface
Number of ports2 x 10/100 Mbps, 2 LANs or 1 LAN + 1 WAN
Magnet isolation protection1.5 KV



Wi-Fi Interface (Optional)
Number of antennas1
ConnectorRP-SMA, male
Standards802.11a/b/g/n, supporting AP and Client modes
Frequency bands2.412 – 2.484 GHz (2.4 GHz ISM band)
4.910 – 5.825 GHz (5 GHz ISM band)
SecurityOpen,WPA, WPA2, WEP
EncryptionAES, TKIP, WEP64
Data speedUp to 150 Mbps



GPS/GLONASS Interface (Optional)
Number of antennas1
ConnectorSMA female with 50 ohms impedance
Tracking sensitivityGPS: greater than -148 dBm
GLONASS: greater than -140 dBm
Horizontal position
GPS: 2.5 m
accuracyGLONASS: 4.0 m
ProtocolNMEA-0183 V2.3

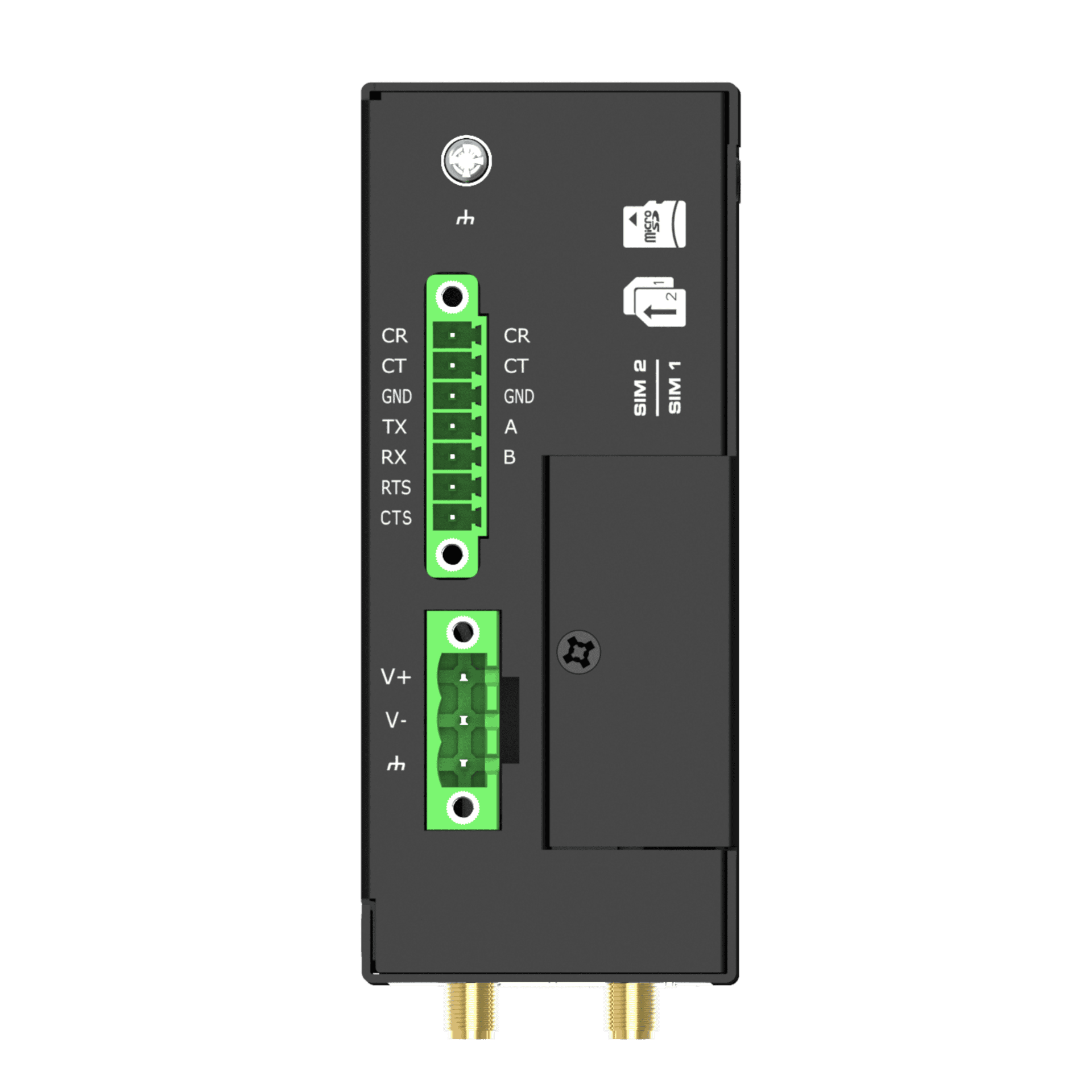

Serial Interface
Number of ports1 x RS-232 + 1 x RS-485
or 2 x RS-232 or 2 x RS-485
Connector7-pin 3.5 mm female socket with lock
ESD protection±15 KV
Baud rate300bps to 230400bps



DI/DO (Software selectable)
Type
2 x DI (dry contact) + 2 x DO (wet contact),
4 x DI, 4 x DO, 3 x DI + 1 x DO or 3 x DO + 1 x DI
Connector7-pin 3.5 mm female socket with lock
Isolation3KVDC or 2KVrms
Absolute maximum VDC“V+” +5V DC (DI), 30V DC (DO)
Absolute maximum ADC300 mA



Others
Reset button1 x RST
SD1 x Micro SD interface
Expansion1 x USB 2.0 host up to 480 Mbps
LED indicators
1 x RUN, 1 x PPP, 1 x USR, 1 x RSSI, 1 x NET,1 x SIM
Built-inRTC, Watchdog, Timer



Software (Basic features of RobustOS)
Network protocolsPPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, DMZ, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPs, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH2, etc.
VPN tunnelIIPsec, OpenVPN, GRE
FirewallDMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
ManagementWeb, CLI, SMS
Serial port
Transparent, TCP Client/Server, UDP, Modbus RTU Gateway



App Center (Available apps for RobustOS)
Apps
L2TP, PPTP, DMVPN, RobustVPN, VRRP, QoS,
SNMP, Language, RobustLink
*Request on demand. For more APPs please visit www.robustel.com.



Power Supply and Consumption
Connector3-pin 5 mm female socket with lock
Input voltage9 to 60 VDC
Power consumptionIdle: 100 mA@12 V
Data link: 400 mA (peak) @12 V



Physical Characteristics
Ingress protectionIP30
Housing & WeightMetal, 570 g
Dimension125 x 104 x 43.5 mm
Installation

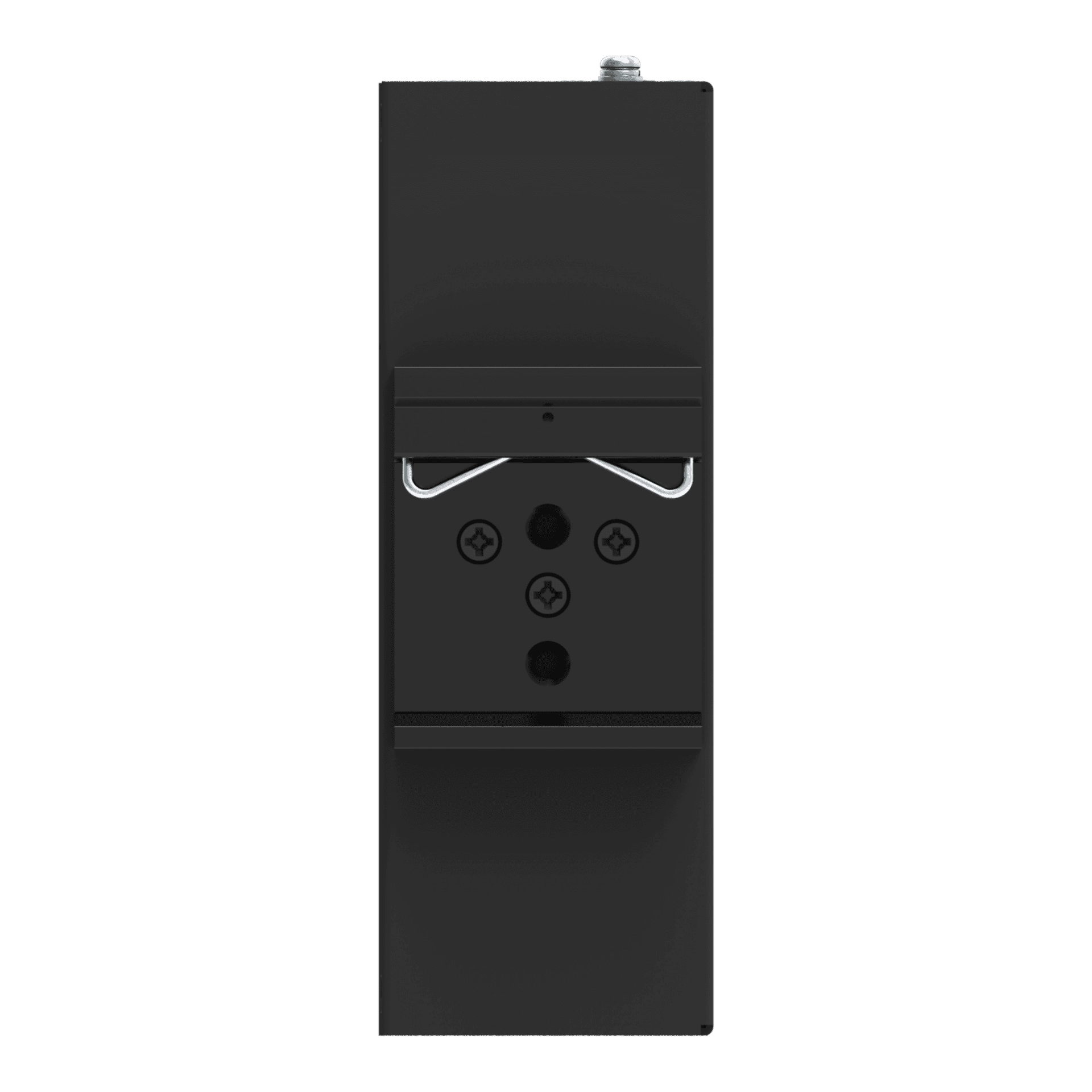

Desktop, wall mounting and 35 mm DIN rail mounting



EMC
EMIEN 55022: 2006/A1: 2007 (CE&RE) Class B
EMSIEC 61000-4-2 (ESD) Level 4,
IEC 61000-4-3 (RS) Level 4,
IEC 61000-4-4 (EFT) Level 4,
IEC 61000-4-5 (Surge) Level 3,
IEC 61000-4-6 (CS) Level 4,
IEC 61000-4-8 (M/S) Level 4
ModelR3000-3PR3000-4LR3000-NU
Router TypeHSPA+ RouterLTE RouterWireline Router
Air InterfaceGSM/GPRS/EDGE/HSDPA/

HSUPA/HSPA+

GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/

TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE

Frequency BandsAU: B1/B3/B5/B7/B8/B28, B40

EU: B1/B3/B7/B8/B20/B28/B31, B38/B40

US: B2/B4/B5/B13/B17/B25, B41

JP: B1/B3/B8/B9/B18/B19/B21/B28, B41

CN: B1/B3, B38/B39/B40/B41

4G*
3GB1/B2/B4(AWS)/B5/B8/B19WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+: B1/B2/B5/B6/B8/B9/B19

TD-SCDMA: B34/B39

CDMA (CDMA 1X/EVDO): R0/A BC0/BC1/BC10

2G850/900/1800/1900 MHz850/900/1800/1900 MHz
Operating Environment-40 to +75 °C

5 to 95% RH

-40 to +75 °C

5 to 95% RH

-40 to +75 °C

5 to 95% RH

*For more information about 4G frequency bands in different countries, please contact your Robustel sales representative.
