R3000 Quad

Robustel GoRugged R3000 Quad is a Rugged cellular router offering state-of-the-art mobile connectivity for machine to machine (M2M) applications.

  • Key Features
  • Specification
  • Documentation
  • Model

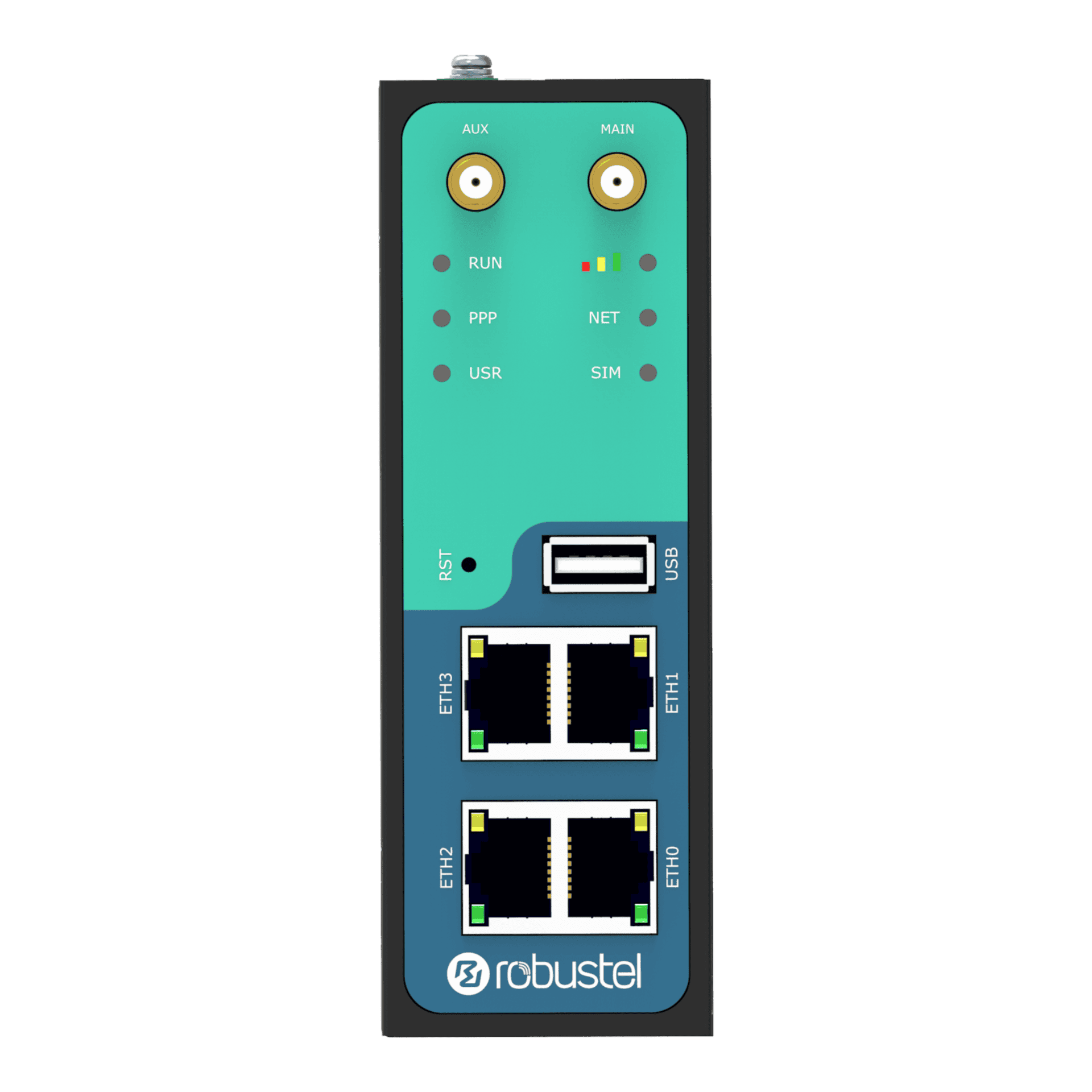

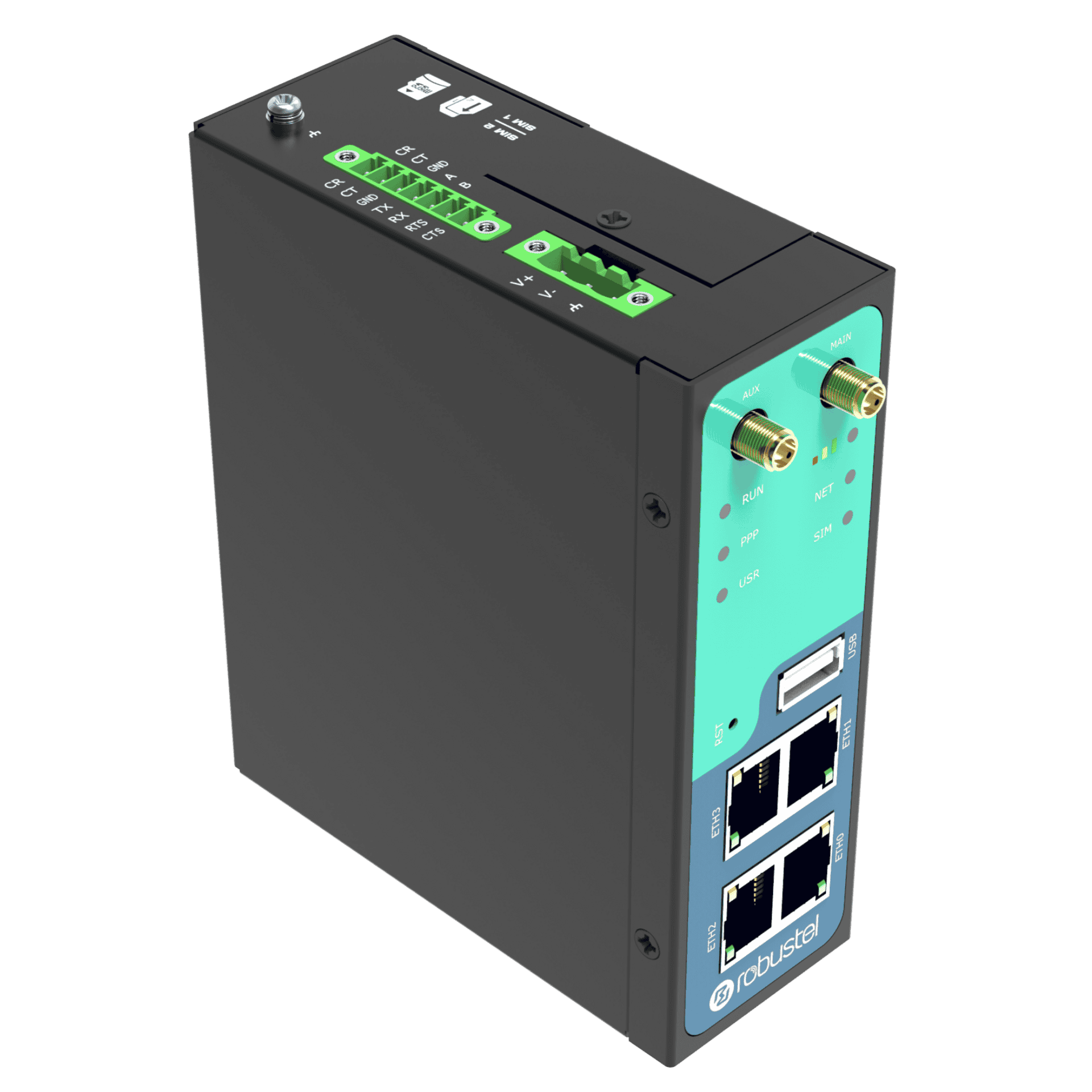

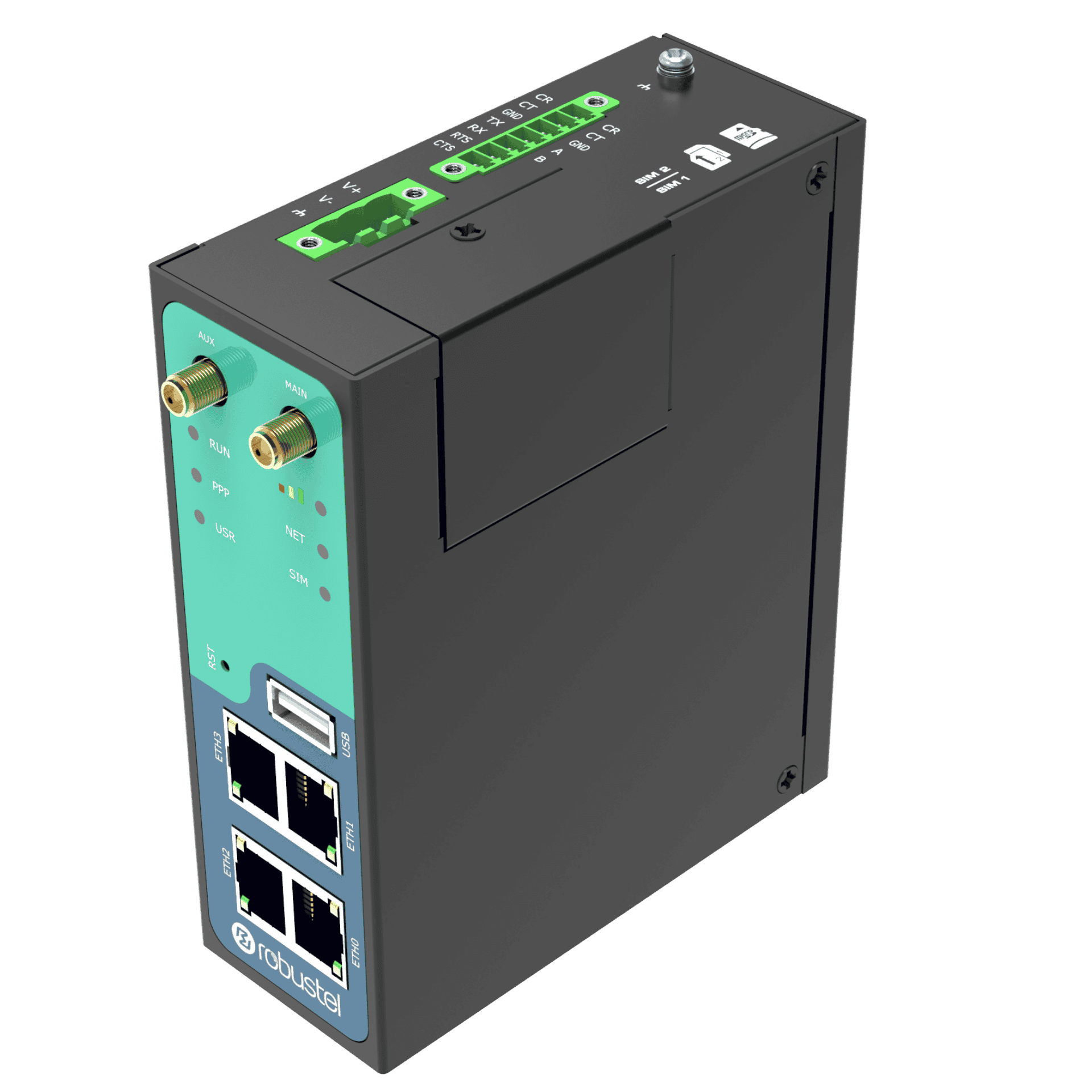

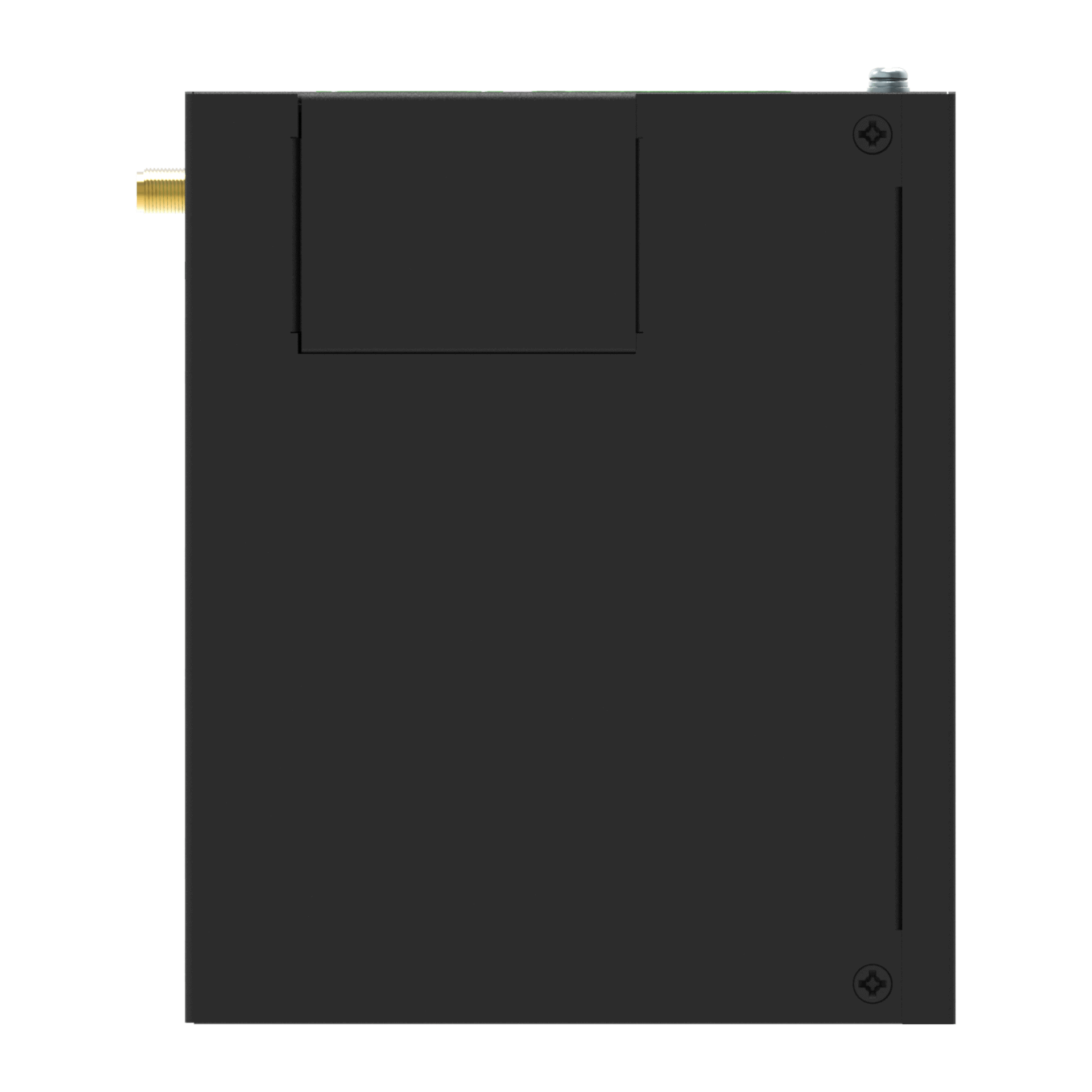

The Robustel Industrial Cellular VPN Router with 4 Ethernet Ports (R3000 Quad) is a rugged cellular router offering state-of-the-art mobile connectivity for machine to machine (M2M) applications.



Key Features

  • The feature Link Manager supporting WWAN1, WWAN2, Ethernet WAN, WLAN WAN link backup and ICMP detection
  • The option Backup Mode supporting cold, warm and load balancing
  • RobustOS + SDK + App
  • IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
  • Management and maintenance via Web/CLI/SNMP/RobustLink Cloud
  • Robust industrial design (9 to 60V DC, desktop or wall mounting or DIN rail mounting)



Cellular Interface
Number of port2 (MAIN + AUX)
ConnectorSMA, female
SIM2 (3 V & 1.8 V)



Ethernet Interface
Number of ports4 x 10/100 Mbps, 4 x LAN or 3 x LAN + 1 x WAN
Magnet isolation protection1.5 KV



Wi-Fi Interface (Optional)
Number of ports1
ConnectorRP-SMA, male
Standards802.11a/b/g/n, supporting AP and Client mode
Frequency bands2.412 – 2.484 GHz (2.4 GHz ISM band)
4.910 – 5.825 GHz (5 GHz ISM band)
SecurityOpen, WPA, WEP
EncryptionAES, TKIP, WEP64
Data speedUp to 150 Mbps



GPS & GLONASS Interface (Optional)
Number of ports1
ConnectorSMA, female, with 50 ohms impedance
Tracking sensitivityGPS:greater than -148 dBm
GLONASS: greater than -140 dBm
Horizontal position accuracyGPS: 2.5 m
GLONASS: 4.0 m
ProtocolNMEA-0183 V4.10

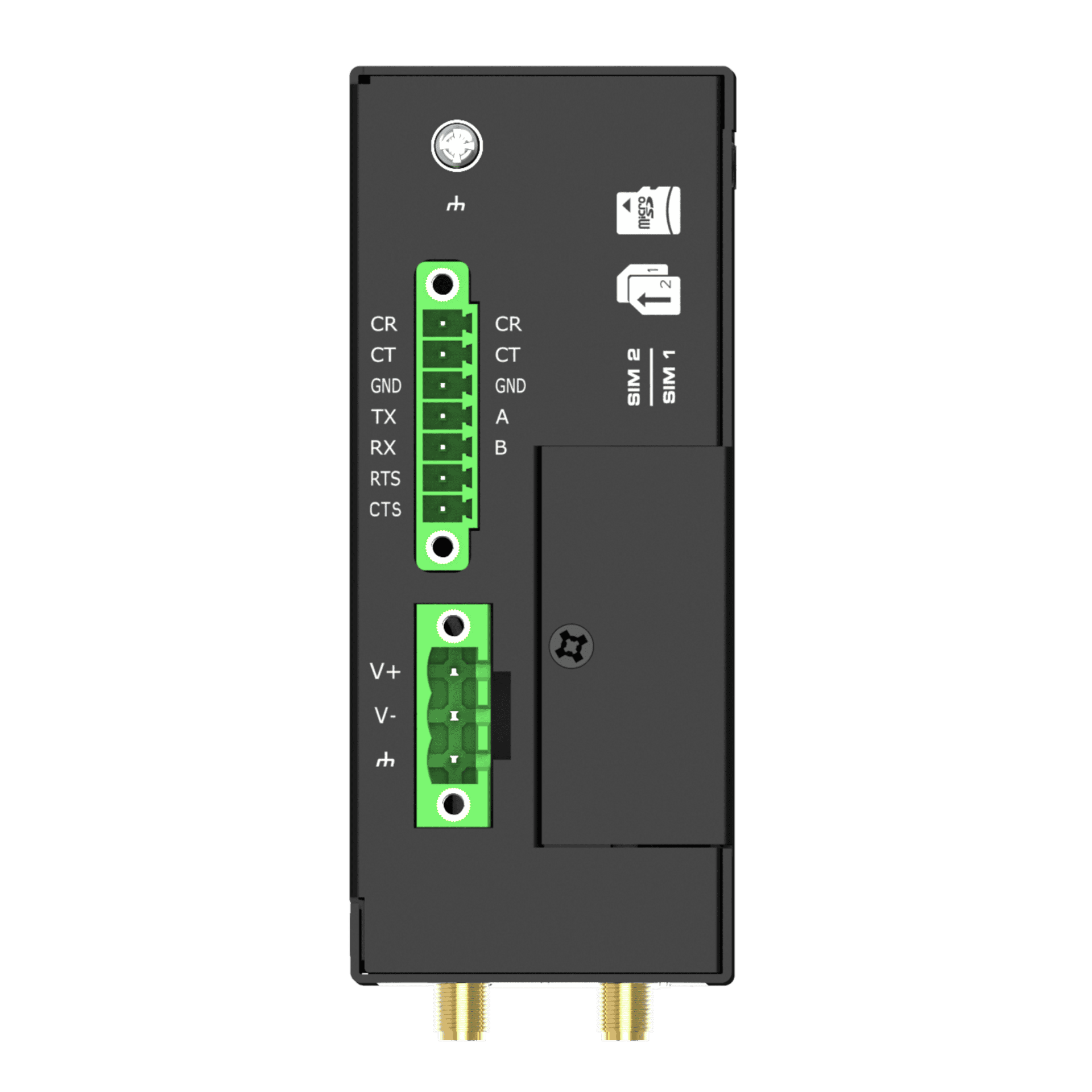

Serial Interface (Software selectable)
Number of ports1 x RS-232 or 1 x RS-485
Connector7-pin 3.5 mm female socket with lock
Baud rate300bps to 230400bps



Others
Reset button1 x RST
SD1 x Micro SD interface
Expansion1 x USB 2.0 host up to 480 Mbps
CLI1 x CLI interfac
LED indicators
1 x RUN, 1 x PPP, 1 x USR, 1 x RSSI, 1 x NET, 1 xSIM
Built-inRTC, Watchdog, Timer



Software (Basic features of RobustOS)
Network protocols
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP,
HTTPs, DNS, ARP, NTP, SMTP, Telnet, VLAN,
SSH2, DDNS, etc.
VPN tunnelIPsec, OpenVPN, GRE
Firewall
DMZ, anti-DoS, Filtering (IP/Domain name/
MAC address), Port Mapping, Access Control
ManagementWeb, CLI, SMS
Serial port
Transparent, TCP Client/Server, UDP, Modbus
RTU Gateway



App Center
Available apps for RobustOSL2TP, PPTP, DMVPN, RobustVPN,VRRP,QoS,
SNMP, Language, RobustLink
*Request on demand. For more APPs please visit www.robustel.com.



Power Supply and Consumption
Connector3-pin 5 mm female socket with lock
Input voltage9 to 60 V DC
Power consumptionIdle: 100 mA@12 V
Data link: 400 mA (peak) @12 V



Physical Characteristics
Ingress protectionIP30
Housing & weightMetal, 570 g
Dimension125 x 104 x 43.5 mm

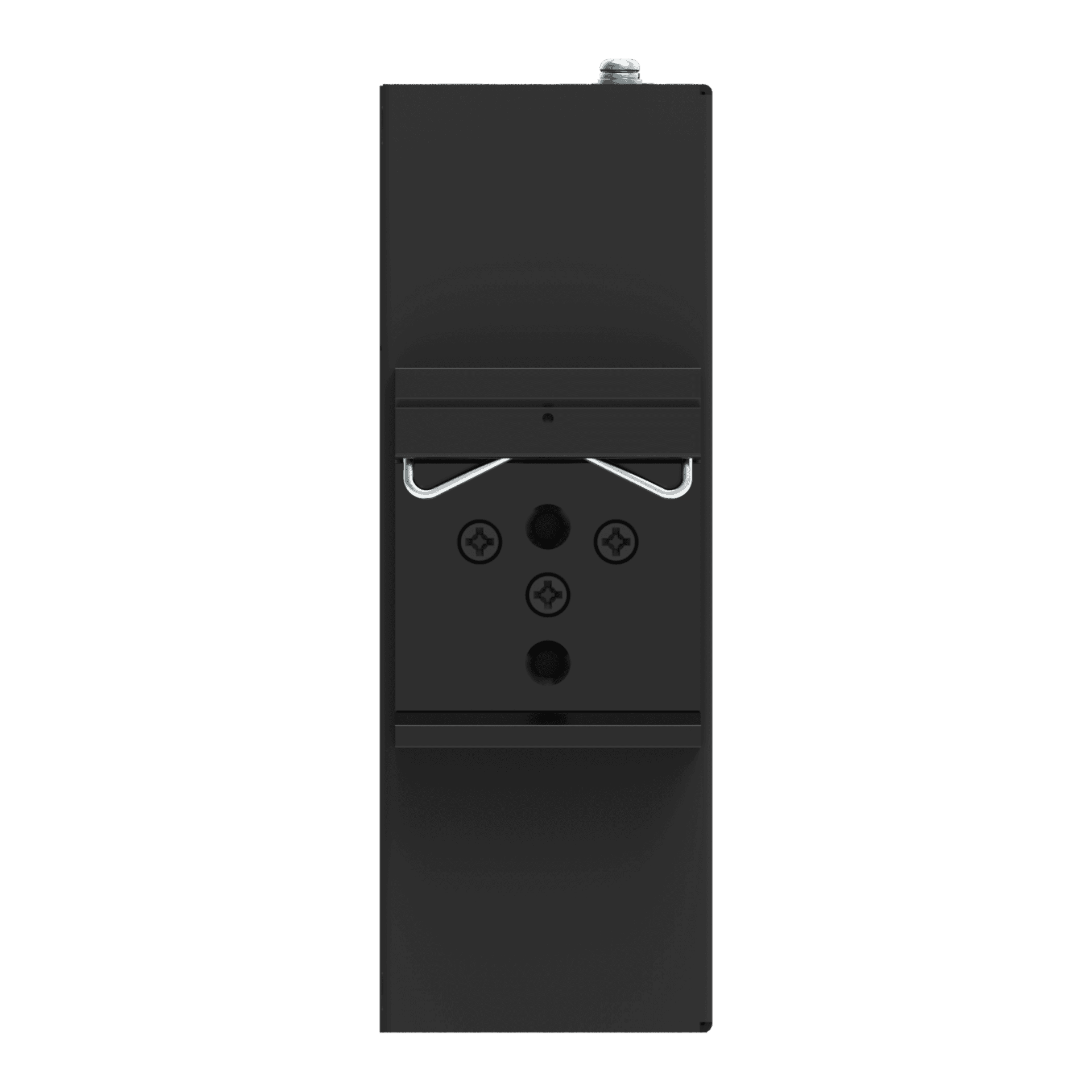

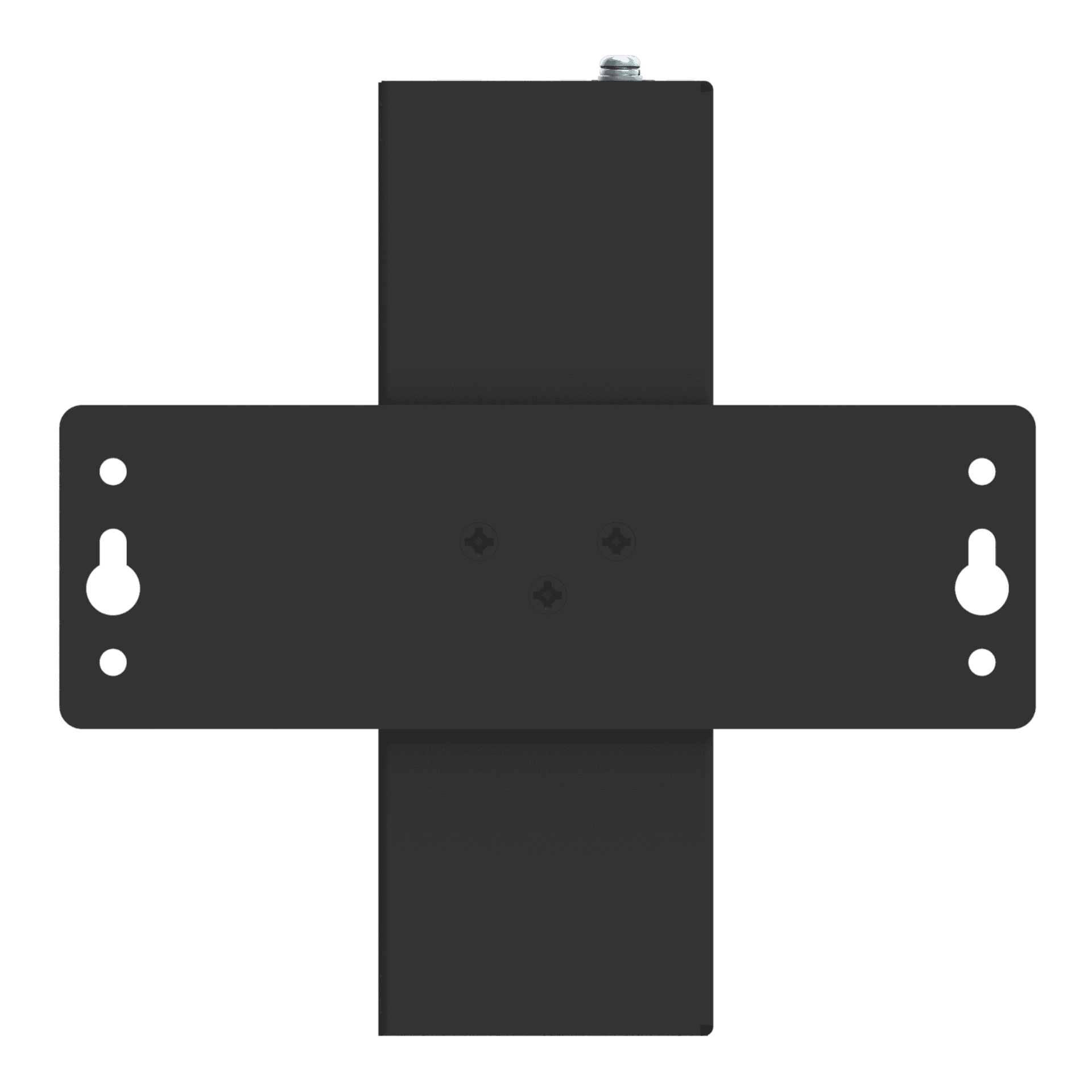

Installation
Desktop or wall mounting and 35 mm DIN rail

mounting



EMC
EMIEN 55022: 2006/A1: 2007 (CE & RE) Class B
EMS
IEC 61000-4-2 (ESD) Level 3
IEC 61000-4-3 (RS) Level 4

IEC 61000-4-4 (EFT) Level 4

IEC 61000-4-5 (Surge) Level 4
IEC 61000-4-6 (CS) Level 3
IEC 61000-4-8 (M/S) Level 4
ModelR3000-Q3PR3000-Q4LR3000-QLB
Router TypeHSPA+ routerLTE routerWireline Router
Air InterfaceGSM/GPRS/EDGE/HSDPA/HSUPA/HSPA+GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCD MA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE
Frequency Bands
4GAU: B1/B3/B5/B7/B8/B28, B40
EU: B1/B3/B7/B8/B20/B28/B31, B38/B40
US: B2/B4/B5/B13/B17/B25, B41
JP: B1/B3/B8/B9/B18/B19/B21/B28, B41
CN: B1/B3, B38/B39/B40/B41
3GB1/B2/B4(AWS)/B5/B8/B19WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+: B1/B2/B5/B6/B8/B9/B19 TD-SCDMA: B34/B39
CDMA (CDMA 1X/EVDO): R0/A BC0/BC1/BC10
2G850/900/1800/1900 MHz850/900/1800/1900 MHz
Operating Environment-40 to 75°C/5 to 95% RH-40 to 75°C/5 to 95% RH
