R2000

Industrial Dual SIM Cellular VPN Router.
Rugged, programmable, highly efficient. Providing reliable, seamless connectivity for M2M & IoT applications.

  • Key Features
  • Specification
  • Documentation
  • Model

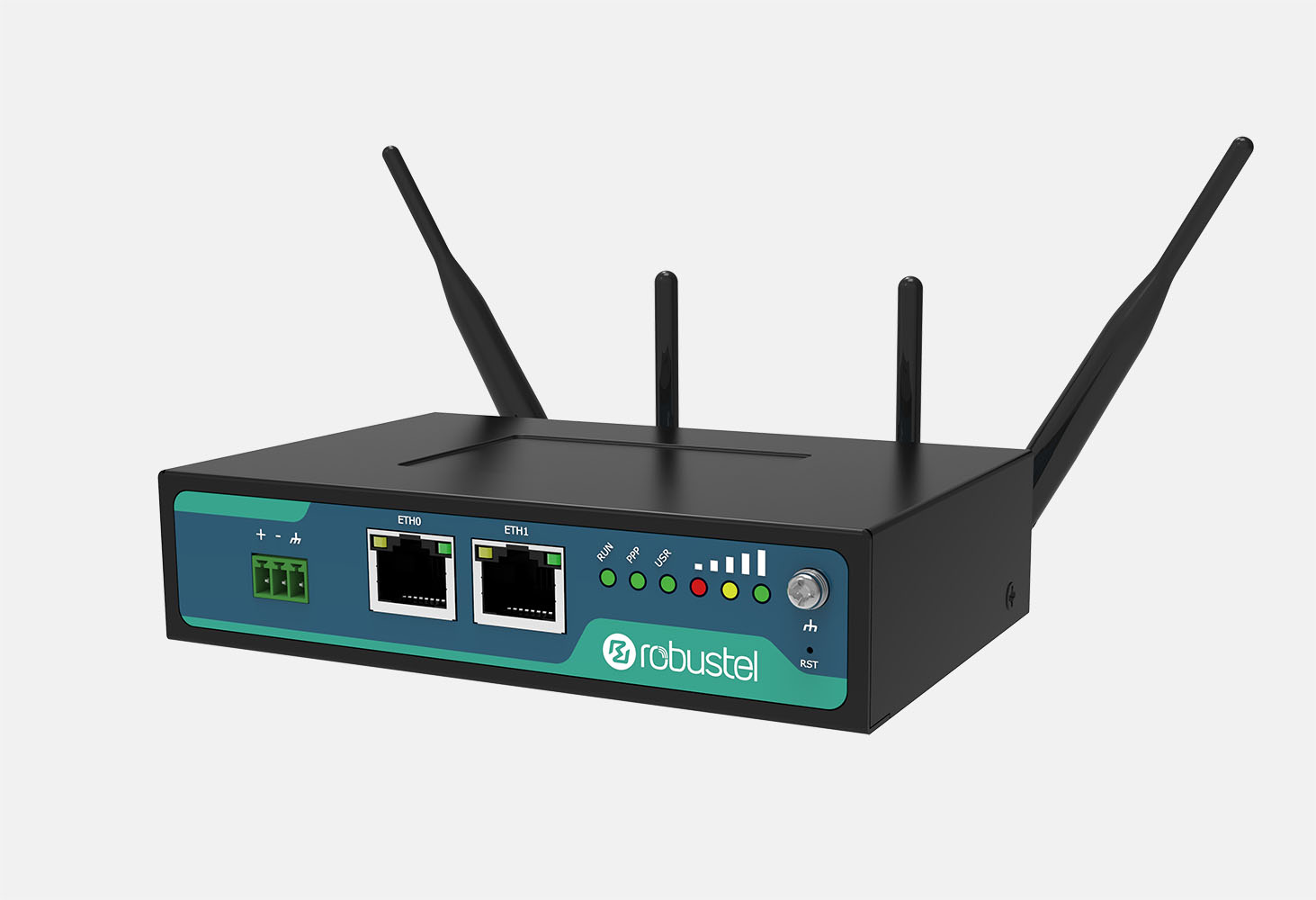

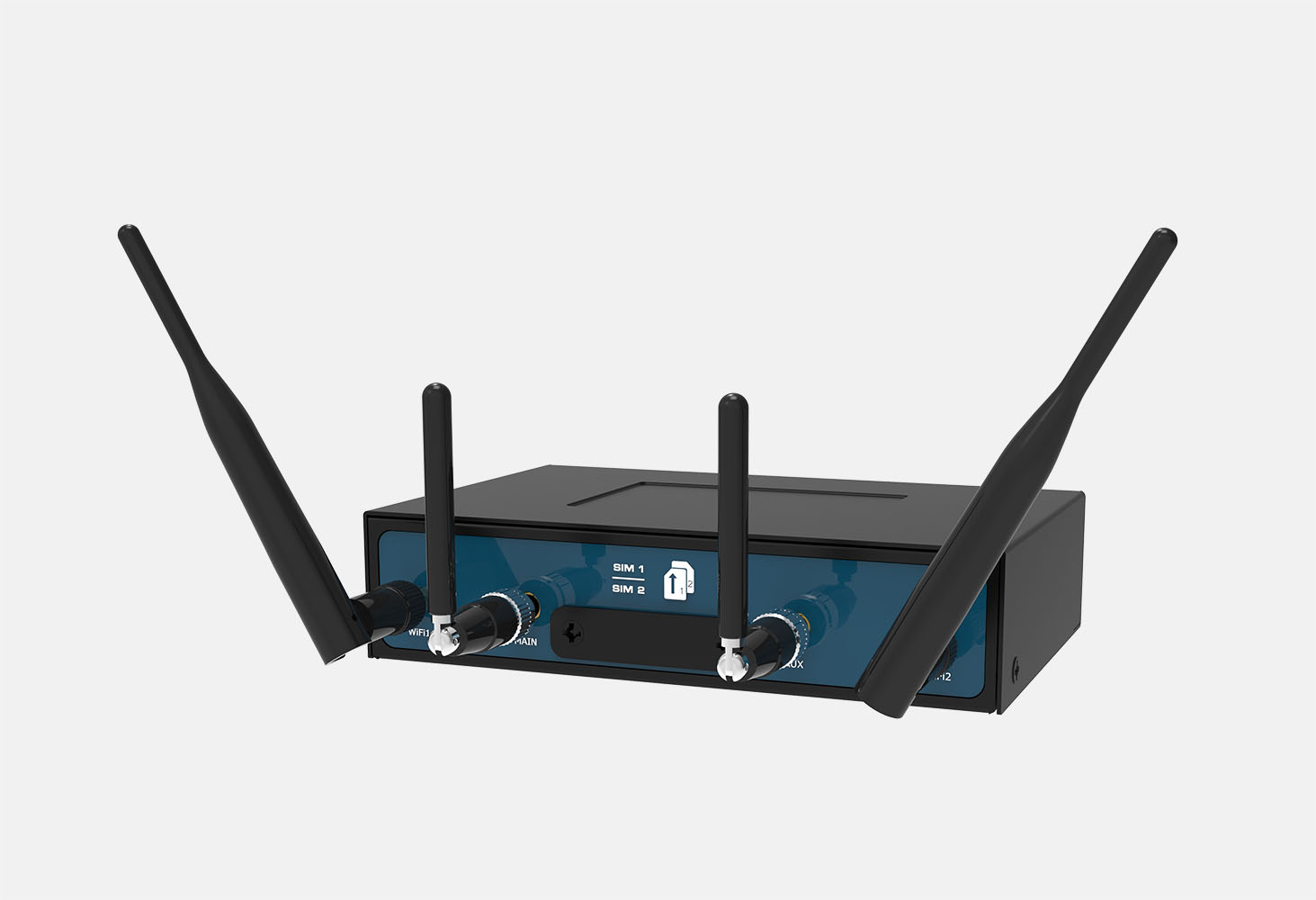

The Robustel Industrial Dual SIM Cellular VPN Router (R2000) is a rugged cellular router offering state-of-the-art mobile connectivity for machine to machine (M2M) applications.



R2000 is a powerful router developed from RobustOS, a Robustel self-developed and Linux-based operating system which is designed to be used in Robustel devices. The RobustOS includes basic networking features and protocols providing customers with a very good user experience. Meanwhile, Robustel offers a Software Development Kit (SDK) for partners and customers to allow additional customization by using C, Python or Java. It also provides rich Apps to meet fragmented IoT market demands.



Key Features

  • Dual SIM redundancy for continuous 2G/3G/4G cellular network connections
  • The feature Link Manager supporting Cellular WAN, Ethernet WAN, WLAN WAN link backup and ICMP detection
  • WAN – Static/PPPoE/DHCP Client
  • WAN port supporting PD feature – compatible with 802.3at. (optional)
  • Supports IPv6
  • RobustOS + SDK + App
  • IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
  • Management and maintenance via Web/CLI/SMS/RCMS Cloud
  • Auto reboot via SMS/Timing
  • Robust industrial design (9 to 36V DC, desktop or wall mounting or DIN rail mounting)



Cellular Interface
Number of antennas 2 (MAIN + AUX)
Connector SMA-K
SIM 2 x (3 V & 1.8 V)



Ethernet Interface
Number of ports 2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN
WAN port Supporting 802.3 at PD feature (optional)
Magnet isolation protection
1.5KV



WiFi Interface (optional)
Number of antennas 2 (WiFi1 + WiFi2)
Connector RP-SMA-K
Standards 802.11 b/g/n supporting AP and Client modes
Frequency band 2.4 GHz
Security WEP, WPA, WPA2
Encryption 64/128 AES, TKIP
Data speed 2*2 MIMO, 300 Mbps
RF output power
(+/-1 dBm)
802.11b 19 dBm
802.11g 19 dBm
802.11n (20 MHz) 18 dBm
802.11n (40 MHz) 17 dBm
Receiving sensitivity (+/-1 dBm)
802.11b    -93 dBm
802.11g    -90 dBm
802.11n (20 MHz)    -88 dBm
802.11n (40 MHz)    -85 dBm



Others
Reset button 1 x RST
LED indicators 1 x RUN, 1 x PPP, 1 x USR, 3 x RSSI
Built-in Watchdog, Timer



Software
Network protocols
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP,
HTTPs, DNS, ARP, BGP, RIP, OSPF, NTP, SMTP,
Telnet, VLAN, SSH2, DDNS, etc.
VPN tunnel IPsec/OpenVPN/GRE
Firewall DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Management Web, SMS, CLI
Serial port Transparent, TCP Client/Server, UDP, Modbus RTU Gateway



App Center (Available Apps for RobustOS)
Apps
L2TP, PPTP, DMVPN, VRRP, QoS, WLAN Multi AP, SNMP, Language, RCMS
*Request on demand. For more Apps please visit www.robustel.com.



Power Supply and Consumption

Connector

3-pin 3.5 mm female socket

Input voltage

9 to 36V DC

Power consumption

Idle: 100 mA@12 V

Data link: 500 mA (peak) @12 V

PD feature* (optional)

WAN port supported

Input voltage: 48~57V DC

*It is not recommended to use DC power supply and PD power supply simultaneously.



Physical Characteristics
Ingress protection IP30
Housing & Weight Metal, 305 g
Dimensions 127.5 x 82.5 x 29.5 mm
Installations Desktop, wall mounting and 35 mm DIN rail mounting



Regulatory and Type Approvals
Regulatory RCM, CE, CCC, EAC, FCC, Telec, CB
Carrier PTCRB, AT&T
Application E-mark (Vehicle)
Environmental RoHS 2.0, WEEE
EMI EN 55032: 2012/AC: 2013 (CE & RE) Class A
EMS

IEC 61000-4-2 (ESD) Contact Level 2; Air Level 3

IEC 61000-4-4 (EFT) Level 2

IEC 61000-4-5 (Surge) Level 3



Model

R2000-3P

R2000-4L

R2000-4M

R2000-NU

Router Type

HSPA+ Router

LTE Router

LTE-M Router

Air Interface

GSM/GPRS/EDGE/HSDPA/

HSUPA/HSPA+

GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/

TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE/

EGPRS/Cat.M1/Cat.NB1





Frequency Bands

AU: B1/B2①/B3/B4/B5/B7/B8/B28

EMEA: B1/B3/B5/B7/B8/B20, B38/B39/B40

US: B2/B4/B12

JP: B1/B3/B8/B18/B19/B26

CN: B1/B3, B38/B39/B40/B41

LTE Cat.M1/Cat.NB1:B1/B2/B3/

B4/B5/B8/B12/B13/B18/B19/

B20/B26/B28/B39(for TDD)

4G*



3G

B1/B2/B5/B8/B19



AU: B1/B2/B5/B8

EMEA: B1/B5/B8

US: B2/B4/B5

JP: B1/B6/B8/B19

CN: B34/B39, R0/A BC0/BC1/BC10

2G

850/900/1800/1900 MHz

AU: 850/900/1800/1900MHz

EMEA/CN: 900/1800 MHz

EGPRS:850/900/1800/1900MHz

Operating Temperature

-25 to +70 °C

-25 to +70 °C

-25 to +70 °C

-25 to +70 °C

Storage Temperature

-40 to +85 °C

-40 to +85 °C

-40 to +85 °C

-40 to +85 °C

Relative Humidity

5 to 95% RH

5 to 95% RH

5 to 95% RH

5 to 95% RH

①: LTE B2 of AU does not support Rx-diversity *For more information about 4G frequency bands in different countries, please contact your Robustel sales representative.
