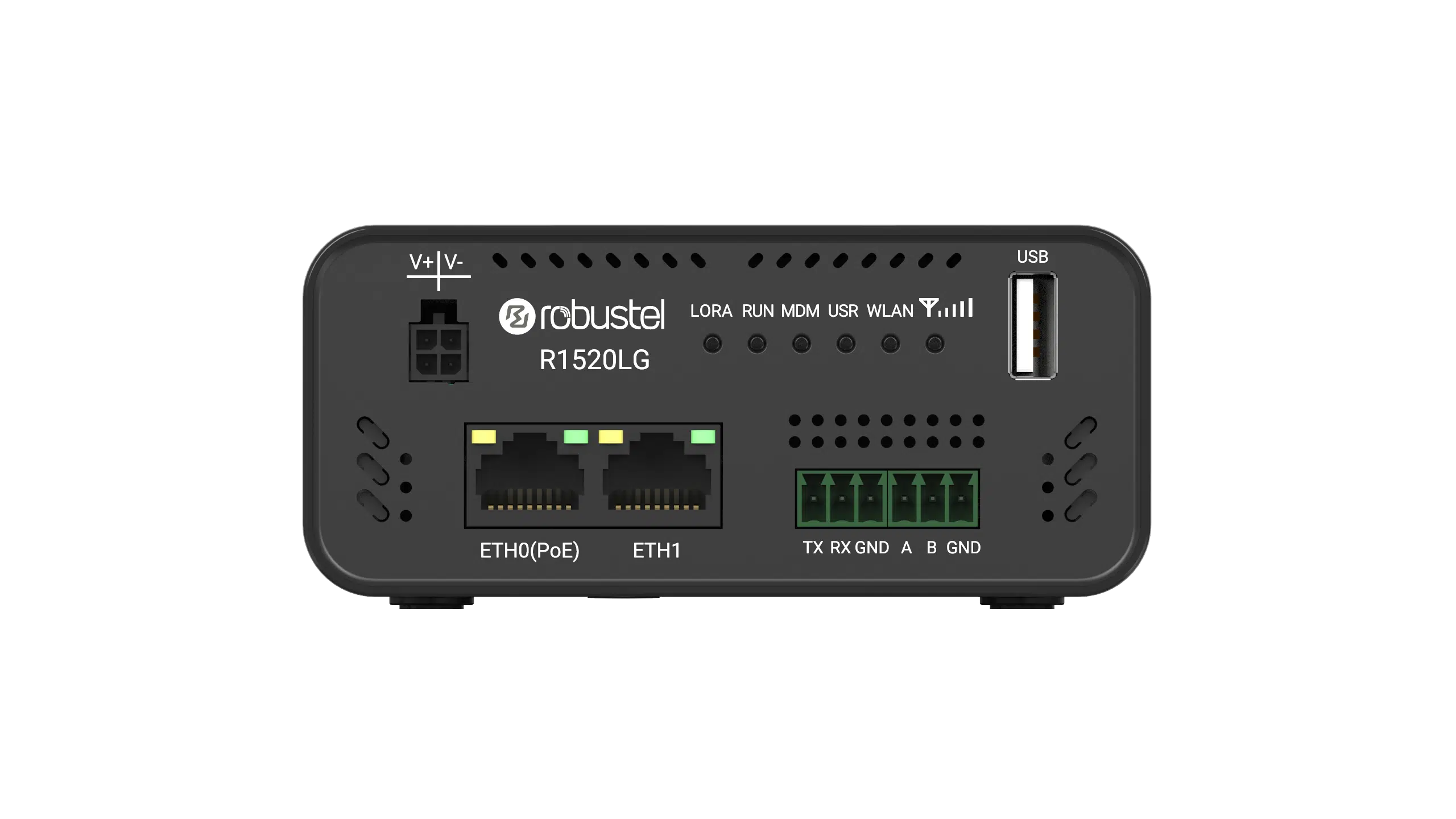

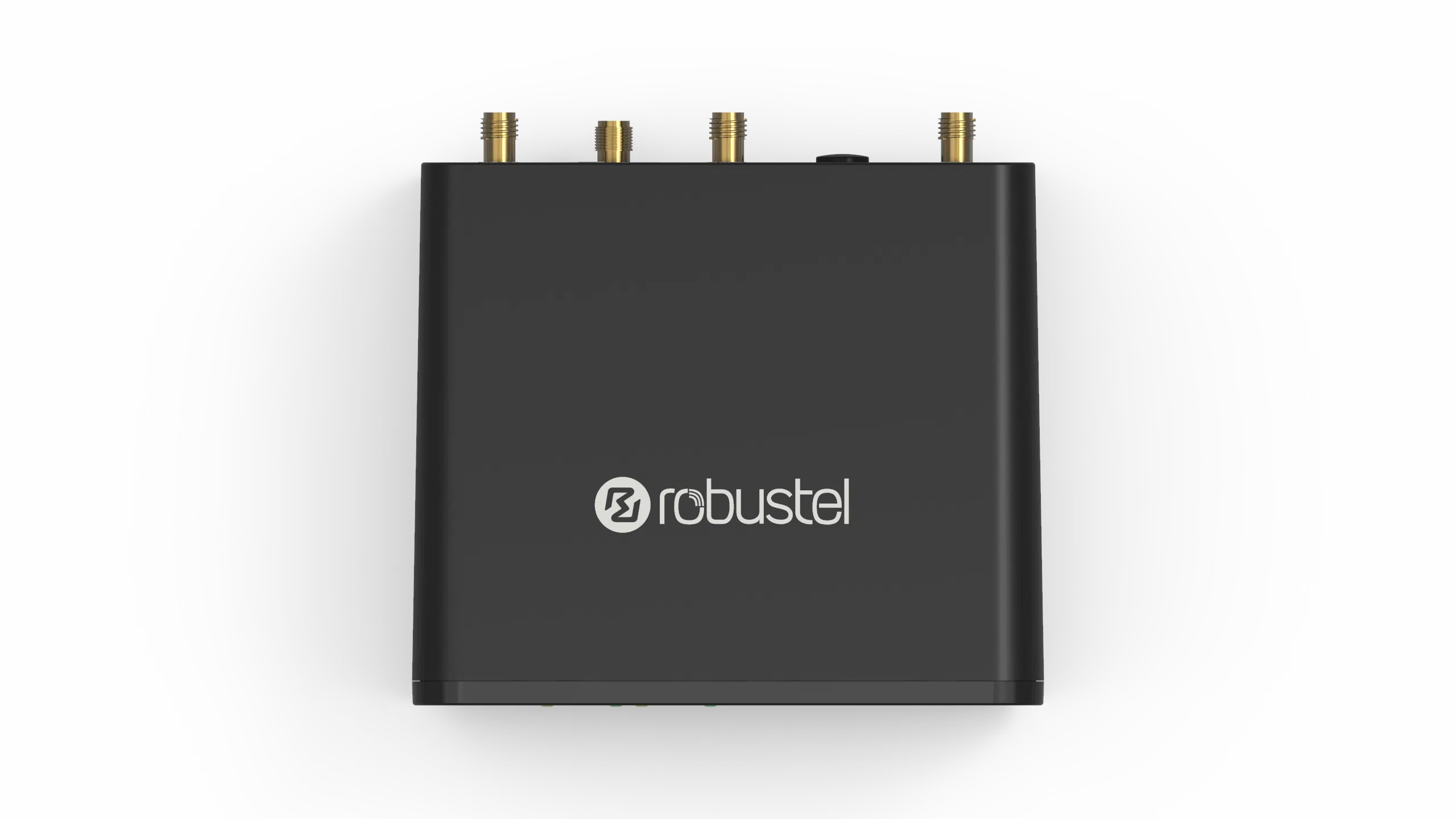

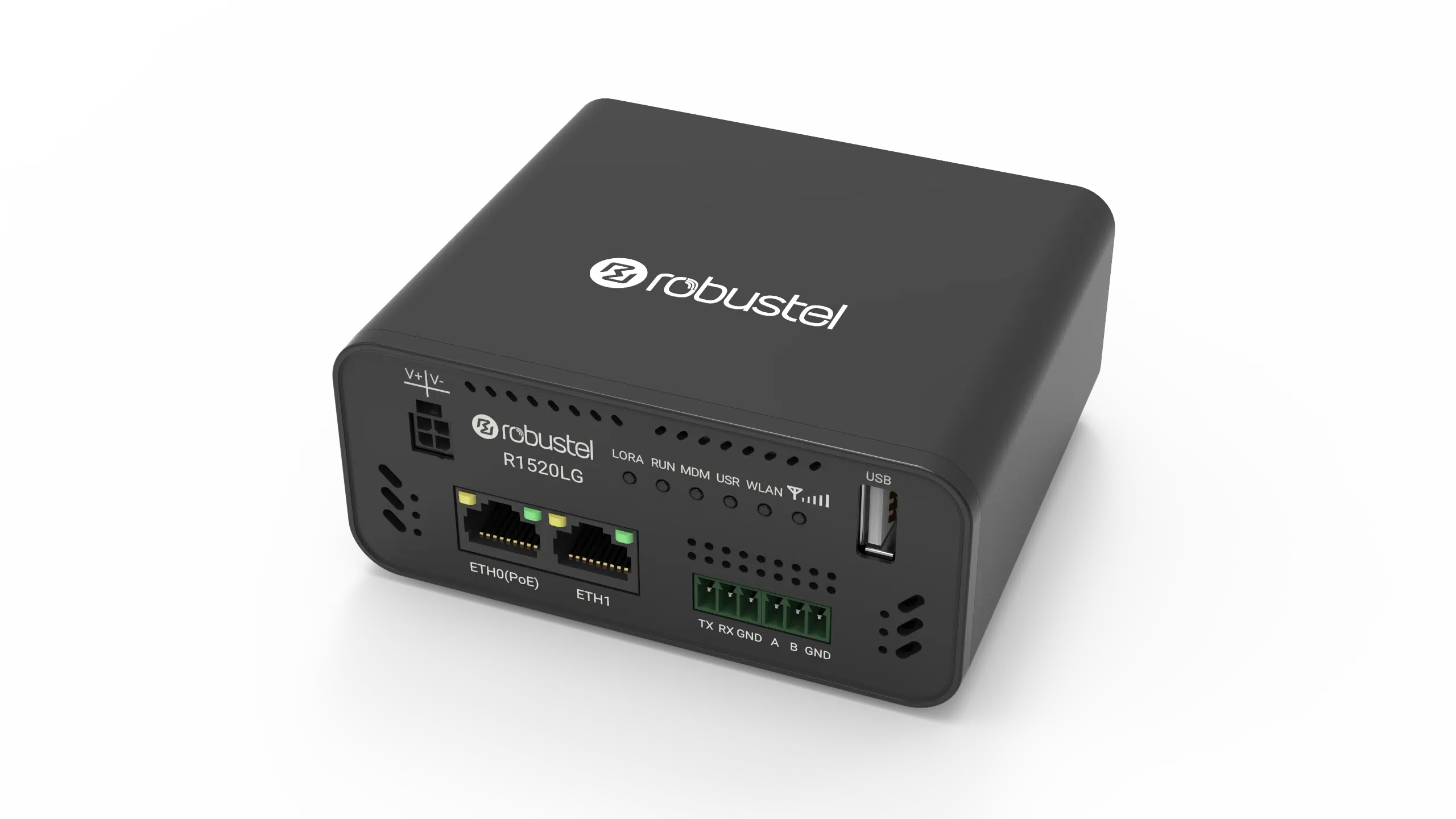

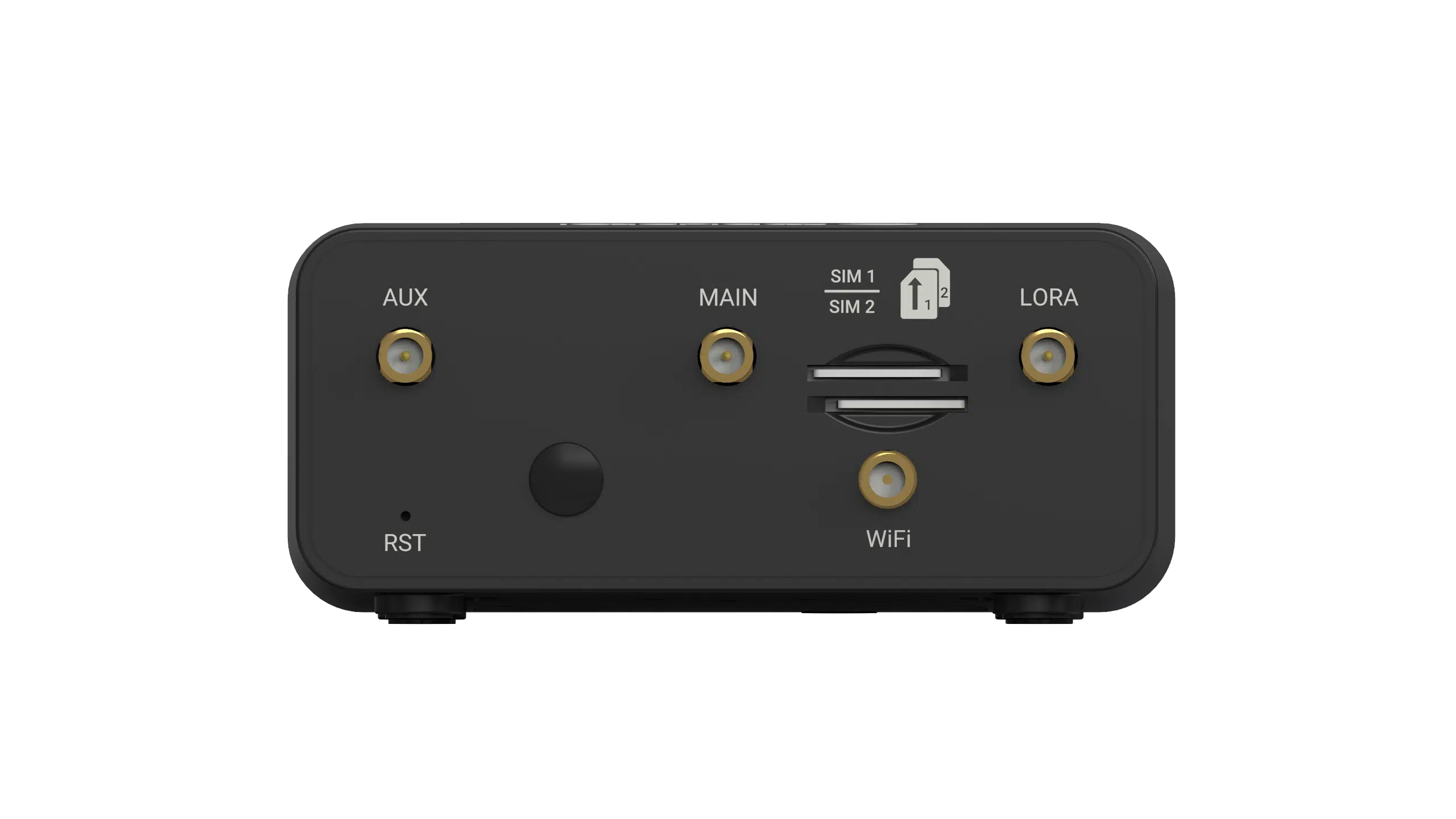

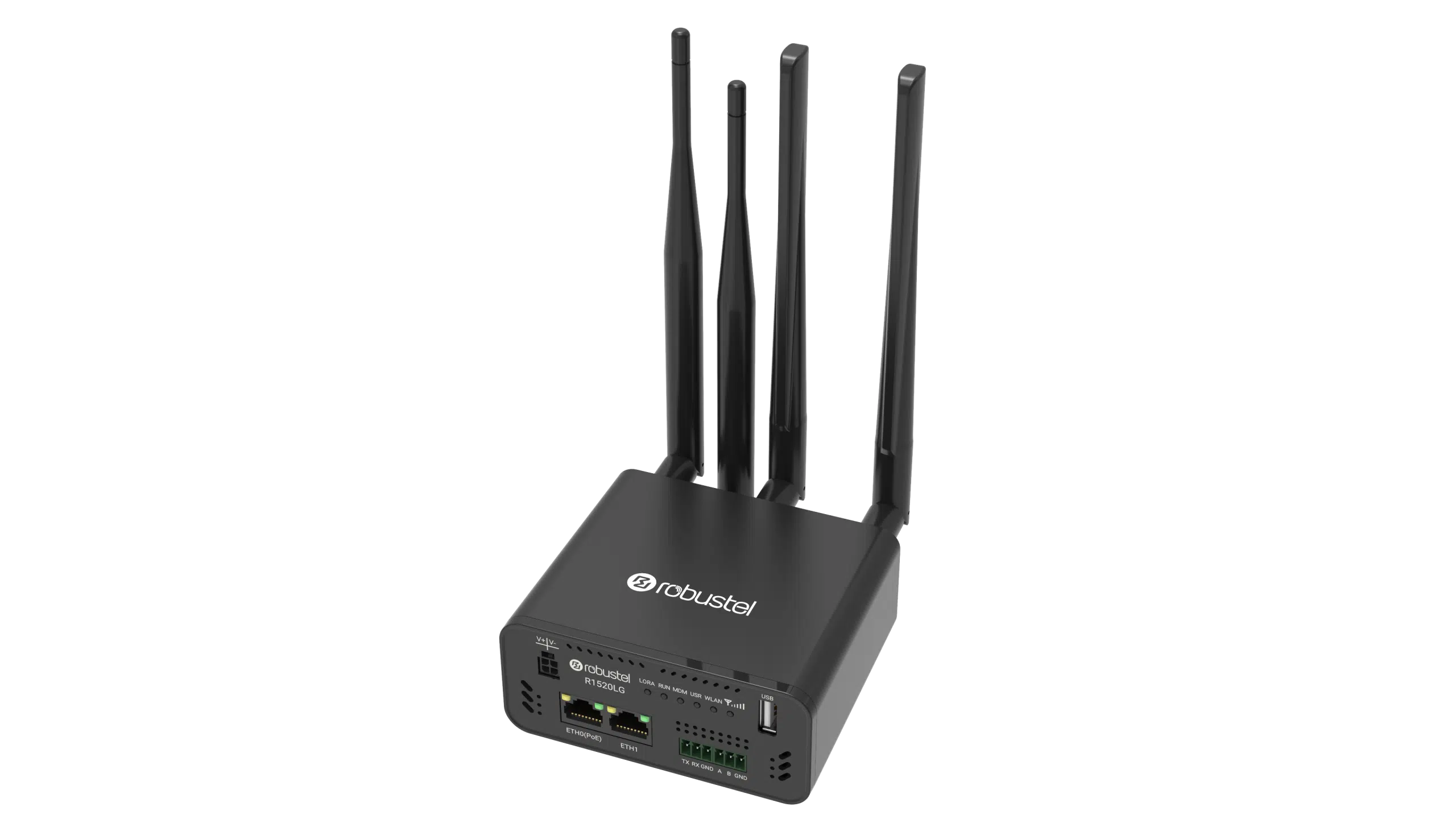

R1520LG Industrial LoRaWAN Gateway

R1520LG, Robustel’s next-generation LoRaWAN gateway, excels in dense indoor environments with robust 4G/3G/2G and WiFi support. Integrated with Chirpstack LoRa network server, it efficiently manages traffic. Featuring 2 x Ethernet, 1 x RS-232, and 1 x RS-485, along with PoE-PD, it’s ideal for smart buildings and industrial IoT, ensuring reliable connectivity.

  • Key Features
  • Specification
  • Downloads
  • Model

The R1520LG is Robustel’s innovative LoRaWAN gateway, specifically engineered for high-volume in-building applications. Combining cost-effectiveness with exceptional versatility, this gateway addresses a wide range of deployment scenarios, including:

  1. External LoRa Network Server (LNS): Choose from multiple packet forwarders such as UDP, Basic Station, or Loriot for tailored connectivity solutions.
  2. Internal LoRa Network Server (LNS): Utilize ChirpStack for comprehensive customer control over your network.
  3. Enhanced Internal LNS: Our unique “E2C ChirpStack”integration, a pioneering feature, offers seamless connectivity options.
  4. Direct Cloud Integration: The E2C ChirpStack software connector enables LoRa sensors to connect directly to AWS and Azure cloud environments, simplifying data management.
  5. Dual Functionality: E2C ChirpStack can be paired with E2C Modbus within the R1520LG, allowing easy data aggregation from both wired and wireless sensors into the cloud.



Watch this video to see how R1520LG can act as a complete hosting environment (Debian Linux) – for IoT applications – especially those connecting to LoRa and Modbus sensors.

How to host ALL of your IoT project on an R1520LG



KEY FEATURES

  • Support PoE-PD for optimal gateway location
  • Wi-Fi client and AP modes
  • Wide power input ranging from 9 ~ 60 V DC
  • Dual Ethernet ports for WAN and LAN connections
  • Dual SIM slots for resilient cellular communication
  • RS-232 and RS-485 ports for peripheral connection
  • Utilize the “Operations Console” for robust gateway management
  • Offer RobustVPN for easy remote access to all gateways, regardless of SIM or internet connection type
  • Integrate “E2C Chirpstack” for seamless LoRa data connectivity to AWS/Azure or other cloud platforms
  • Enable data buffering for LoRa data via “E2C Chirpstack,” a feature not typically found in standard LoRa gateways
Hardware System
CPU i.MX 6ULL, 792 MHz
RAM 512 MB DDR3
Flash 8 GB eMMC



Cellular Interface
Number of antennas 2
Connector SMA-K
SIM 2 x Mini SIM (2FF)



Ethernet Port
Number of ports 2 x 10/100 Mbps, LAN or WAN
WAN port Support 802.3af PD feature on ETH0
Magnet isolation protection 1 KV



LoRa Interface
Number of antennas 1
Connector SMA-K
Frequency* (in progress) US915

CN470

EU868

AU915
Max transmitted power +25 dBm
Max sensitivity -140 dBm
Channel capacity Supports up to 8 channels receive data simultaneously



Serial Port
Number of ports 1 x RS-232 + 1 x RS-485
Connector 2 x 3-pin 3.5 mm female socket
ESD protection 8 KV air, 4 KV contact
Baud rate 300 bps to 115200 bps
Signal definition RS-232: TXD, RXD, GND

RS-485: Data+(A), Data-(B), GND



Wi-Fi Interface
Number of antennas 1
Connector RP-SMA-K
Standards 802.11b/g/n, supporting AP and Client modes
Frequency bands 2.4 GHz
Security WEP, WPA, WPA2
Encryption 64/128 AES, TKIP



Others
Reset button 1 x RST
USB port 1x USB 2.0 (host), Type A, 500 mA
LED indicators 1 x LORA, 1 x RUN, 1 x MDM, 1 x USR, 1 x WLAN, 1 x RSSI
Watchdog External



Power Supply and Consumption
Connector 4-pin Micro-Fit socket
Input voltage 12/24/48 V DC, 9 ~ 60 V DC
PoE-PD: 42.5 ~ 57 V DC
Reverse polarity protection, surge protection
Power consumption Idle: 1.5 W@12 V
Max: 10 W@12 V
Recommended power supply 12 V DC/1.5 A power adapter



Physical Characteristics
Ingress protection IP30
Housing & Weight Metal, 238.5 g
Dimensions 46 x 90 x 105 mm
Installations Desktop, wall mounting and 35 mm DIN rail mounting
Operating temperature -20 to +60 °C
Storage temperature -40 to +85 °C
Relative humidity 5 ~ 95% RH (non-condensing)



Software (Basic features of RobustOS Pro)
LoRaWAN protocols V1.0.4 Class A/Class  B/Class C
Network protocols



 PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, NTP, SMTP, Telnet, VLAN, HTTPs, ARP, SSH2, DDNS, etc.
VPN tunnels IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN
Firewalls DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Remote management Web, CLI, SMS
Serial port protocols Transparent, TCP Client/Server, UDP, Modbus RTU Gateway
Others Smart Roaming V2



SDK
Operating system RobustOS Pro (Based on Debian 11 Bullseye)
Supported programming languages C, C++, Python, Java, Node.js, etc. (for users to develop own applications)
Flash available for SDK 6 GB
RAM available for SDK 256 MB



App Center (Available Apps for RobustOS Pro)
Apps* Language, RCMS, WireGuard, Edge2Cloud, etc.
*Request on demand. For more Apps please visit www.robustel.com.



Cloud Platform
Robustel Cloud Manager Service (RCMS) RobustLink, RobustVPN, Operation Console



Regulatory and Type Approvals
Environmental RoHS2.0
EMI EN 55032 Conducted Emission Class B
EN 55032 Radiated Emission Class B
EMS EN 61000-4-2 (ESD) Contact Level 2, Air Level 3

EN 61000-4-3 (RS) Level 2

EN 61000-4-4 (EFT) Level 2

EN 61000-4-5 (Surge) Level 3

EN 61000-4-6 (CS) Level 2

EN 61000-4-8 (PFM) Level 2

EN 61000-4-11 (Dips)
R1520LG Datasheet



R1520LG Hardware Manual



RobustOS Pro Software Manual



*All Robustel Firmware and RobustOS Apps are now available to download from the App Centre section of RCMS Cloud.

If you don’t already have access to RCMS Cloud you can Sign Up  freely.

*Please contact our Technical Support if you have any trouble finding the resources.

Model Order Code LoRa Frequency Frequency Bands** Country
/Region		 Certification
(*In Progress)		 Pacakge Contains
R1520LG-AB-4L-A35GL A013700011 863 ~ 870 MHz 4G: LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/

20/25/26/28/66
LTE TDD: B34/38/39/40/41
3G: WCDMA: B1/2/4/5/6/8/19
2G: GSM: B2/3/5/8

 EU CE 1 x R1520LG Gateway (B Code: B137002)

1 x Wall Mounting Kit
A013700004 863 ~ 870 MHz 1 x R1520LG Gateway (B Code: B137002)

2 x Cellular Antenna

1 x Wi-Fi Antenna

1 x LoRa Antenna

1 x Power Plug Converter

1 x Wall Mounting Kit
R1520LG-AC-4L-A35GL A013700012 915 ~ 928 MHz AU RCM 1 x R1520LG Gateway (B Code: B137003)

1 x Wall Mounting Kit
A013700005 915 ~ 928 MHz 1 x R1520LG Gateway (B Code: B137003)

2 x Cellular Antenna

1 x Wi-Fi Antenna

1 x LoRa Antenna

1 x Power Plug Converter

1 x Wall Mounting Kit
R1520LG-AD-4L-A35GL A013700013 902 ~ 928 MHz NA FCC*

IC*

 1 x R1520LG Gateway (B Code: B137004)

1 x Wall Mounting Kit
A013700006 902 ~ 928 MHz 1 x R1520LG Gateway (B Code: B137004)

2 x Cellular Antenna

1 x Wi-Fi Antenna

1 x LoRa Antenna

1 x Power Plug Converter

1 x Wall Mounting Kit
R1520LG-AB-NU A013700014 863 ~ 870 MHz – EU CE 1 x R1520LG Gateway (B Code: B137006)

1 x Wall Mounting Kit
A013700008 863 ~ 870 MHz 1 x R1520LG Gateway (B Code: B137006)

1 x Wi-Fi Antenna

1 x LoRa Antenna

1 x Power Plug Converter

1 x Wall Mounting
R1520LG-AC-NU A013700015 915 ~ 928 MHz AU RCM 1 x R1520LG Gateway (B Code: B137007)

1 x Wall Mounting Kit
A013700009 915 ~ 928 MHz 1 x R1520LG Gateway (B Code: B137007)

1 x Wi-Fi Antenna

1 x LoRa Antenna

1 x Power Plug Converter

1 x Wall Mounting Kit
R1520LG-AD-NU A013700016 902 ~ 928 MHz NA FCC*

IC*

 1 x R1520LG Gateway (B Code: B137008)

1 x Wall Mounting Kit
A013700010 902 ~ 928 MHz 1 x R1520LG Gateway (B Code: B137008)

1 x Wi-Fi Antenna

1 x LoRa Antenna

1 x Wall Mounting Kit

1 x Power Plug Converter

**For more information about frequency bands in different countries, please contact your Robustel sales representative.
