M1000 USB

Industrial Cellular USB Modem.
Easily enable M2M communications with industrial design, external antenna and external power input.

  • Key Features
  • Specification
  • Documentation
  • Model

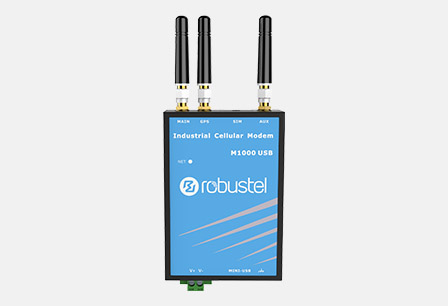

Robustel GoRugged M1000 USB is a rugged cellular modem with Mini USB interface offering state-of-the-art 2G (GPRS/EDGE)/3G (HSPA)/4G (LTE) connectivity for machine to machine (M2M) applications.



Key Features

  • Control via AT commands
  • USB 2.0 high speed interface allows it to manage and optimize the performances of 3G and 4G high-speed networks
  • LTE downlink/uplink up to 100/50 Mbps
  • GPS receiver optional for specified model
  • Antenna diversity for improved fringe performance optional
  • Comprehensive SDK and enabling drivers for Linux and Windows
  • Wide range input voltages from 12 to 36 VDC and extreme operating temperature

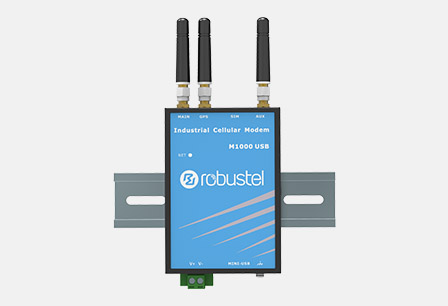

  • The metal enclosure can be mounted on a DIN-rail or on the wall, also with extra ground screw

Cellular Interface

Connector

SMA-K

SIM

1 (3 V & 1.8 V)

Standards

LTE/HSPA+/HSUPA/HSDPA/UMTS/EDGE/GPRS

LTE

max. 100/50 Mbps (DL/UL)

UMTS

max. 384 kbps (DL & UL)





USB Interface

Number of ports

1 x mini Type A, female

Speed

USB 2.0 High Speed (480 Mbit/s)

ESD protection

15 KV





GPS (optional for M1000-U3P and M1000-U4L)

Protocol

NMEA

Modes

Standalone GPS, Assisted GPS





Drivers

Drivers

Multi-O/S





System

LED indicator

1 x NET



Power Supply and Consumption

Connector

2-pin 5 mm pluggable terminal block with lock

Input voltage

12 to 36V DC





Physical Characteristics

Housing & Weight

Metal, 300 g

Dimensions

102 x 71 x 29 mm

Installations

Desktop, wall mounting and 35 mm DIN rail mounting



Approvals

Regulatory

CE, EAC

Application

E-mark (Vehicle), N 45545-2 (Railway Applications – Fire Behaviour)

Environmental

RoHS2.0, WEEE
M1000 USB Datasheet M1000 USB User Guide

Model

M1000-U4L

M1000-U3P

M1000-USB

Air Interface

GSM/GPRS/EDGE/HSDPA/HSUPA/HSPA+/

UMTS/DC-HSPA+/TD-SCDMA/FDD LTE/TDD LTE

GSM/GPRS/EDGE/HSDPA/

HSUPA/HSPA+UMTS

–

Frequency Bands*

Global：B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/

B20/B25/B26/B28; B38/B39/B40/B41

EMEA: B1/B3/B5/B7/B8/B20; B38/B40/B41

–

–

4G

3G

Global：B1/B2/B4/B5/B6/B8/B19

EMEA: B1/B5/B8

B1/B2/B8/B5/B6

–

2G

Global：B2/B3/B5/B8

EMEA: B3/B8

B2/B3/B5/B8

–

Operating Temperature

-40 to +85 °C

-40 to +85 °C

-40 to +85 °C

Storage Temperature

-40 to +85 °C

-40 to +85 °C

-40 to+ 85°C

Relative Humidity

5 to 95% RH

5 to 95% RH

5 to 95% RH

*For more information about frequency bands in different countries, please contact your Robustel sales representative.
