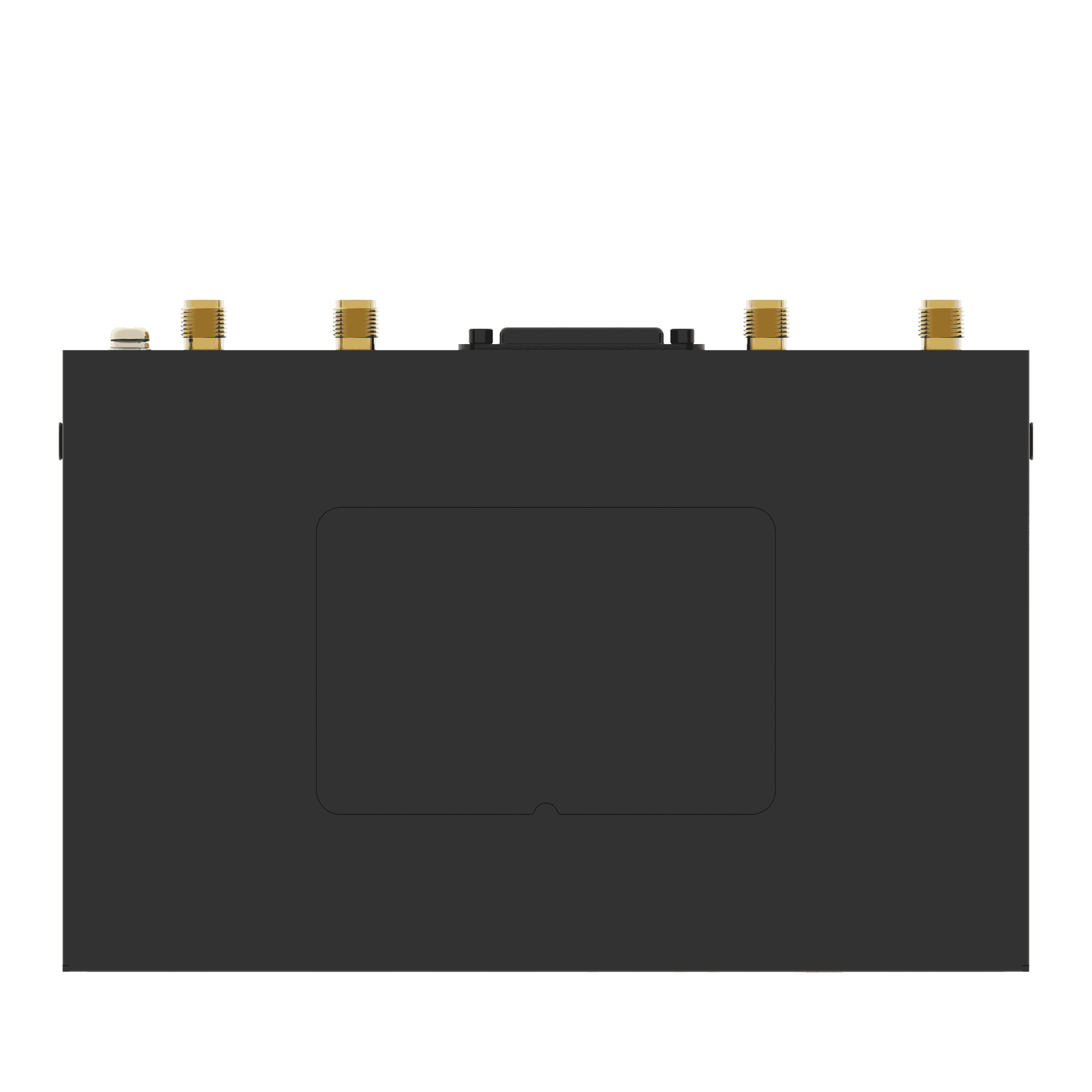

Industrial Dual SIM Cellular VPN Router.
A cost effective, industrial-grade VPN gateway designed for cost-sensitive M2M applications.
R3000 Lite is a cost effective, industrial-grade VPN gateway designed for cost-sensitive M2M applications.
Key Features
| Cellular Interface | |
| Number of ports | 2 (MAIN + AUX) |
| Connector | SMA-K |
| SIM | 2 Mini SIM (2FF) |
| Standards | GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE |
| Ethernet Interface | |
| Number of ports | 1 x 10/100 Mbps LAN port |
| Magnet isolation protection | 1.5 KV |
| Serial Interfaces | |
| Number of ports | 1 x RS-232 and 1 x RS-485 |
| Connector | DB9, female |
| ESD protection | ±15 KV |
| Baud rate | 300 bps to 230400 bps |
| Flow control | RTS/CTS (for RS232) |
| Others | |
| Reset button | 1 x RST |
| Expansion | 1 x USB 2.0 host up to 480 Mbps |
| LED indicators | 1 x RUN, 1 x PPP, 1 x USR, 3 x RSSI |
| Built-in | RTC, Watchdog, Timer |
| Software(Basic features of RobustOS) | |
| Network protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, RIP, OSPF, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc. |
| VPN tunnel | IPsec, OpenVPN, GRE |
| Firewall | DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Management | Web, CLI, SMS |
| Serial port | Transparent, TCP Client/Server, UDP, Modbus RTU Gateway |
| App Center | |
| Apps | L2TP, PPTP, DMVPN, RobustVPN, VRRP, QoS, Data Guard, WLAN Multi AP, SNMP, Language, RCMS |
| *Request on demand. For more Apps please visit www.robustel.com. | |
| SDK | |
| Supported programming language | C, C++ |
| Flash available for SDK | 64 MB |
| RAM available for SDK | 64 MB |
| Power Supply and Consumption | |
| Power supply interface | 3.5 mm terminal block |
| Input voltage | 9 to 36 VDC |
| Power consumption | Idle: 100 mA @ 12 V |
| Data link: 400 mA (peak) @ 12 V | |
| Physical Characteristics | |
| Ingress protection | IP30 |
| Housing & Weight | Metal, 305g |
| Dimension | 105 mm x 98 mm x 29.5 mm |
| Installation |
Desktop or wall mounting or 35 mm DIN rail
mounting
|
| Regulatory and Type Approvals | |
| Environmental | RoHS 2.0, WEEE |
| EMI | EN 55032: 2012/AC: 2013 (CE & RE) Class B |
| EMS | IEC 61000-4-2 (ESD) Contact Level 2; Air Level 3
IEC 61000-4-3 (RS) Level 2 IEC 61000-4-4 (EFT) Level 2 IEC 61000-4-5 (Surge) Level 3 IEC 61000-4-6 (CS) Level 2 |
R3000 Lite Quick Guide (Installation and Configuration)
R3000 Lite User Guide
R3000 Firmware 5.1.0
R3000 Lite Hardware Manual
RobustOS Software Manual
| Model | PN | Category | Frequency Bands* | Country/Region | Certifications (*In progress) |
| R3000-L4L | B025712 | Cat 4 | 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28
LTE TDD: B40 3G: WCDMA: B1/B2/B5/B8 2G: GSM: B2/B3/B5/B8 |
Oceania
South America |
RCM, CRC, SUBTEL, MTC, ENACOM, URSEC |
| B025713 | 4G: LTF FDD: B2/B4/B5/B13/B17
3G: UMTS: B2/B5 |
USA | FCC, PTCRB, AT&T, Verizon | ||
| B025717 | 4G: LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41 3G: WCDMA: B1/B5/B8 2G: GSM: B3/B8 |
EMEA | CE* | ||
| B025718 | Cat M1 | 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/
B13/B18/ B19/B20/B25/B26/B28 LTE TDD: B38/B39/B40/B41 3G: WCDMA: B1/B2/B4/B5/B6/B8/B19 2G: GSM: B2/B3/B5/B8 |
EMEA | CE | |
| B025719 | Cat 4 | 4G: LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41 3G: WCDMA: B1/B6/B8/B19 |
Japan | Telec, JATE | |
| B025720 | 4G: LTE FDD: B1/B3/B7/B8/B20/B28A
3G: WCDMA: B1/B8 2G: GSM: B3/B8 |
EMEA | CE |
* For more information about frequency bands in different countries, please contact your Robustel sales representative.
